Drive shaft--Front drive shaft
Front drive shaft
Overhaul
Hint: overhaul procedure for right side is same as the left
side.
1. Check the drive shaft (referring to page 111).
2. Discharge the oil in gearbox.
(a) Disassemble oil plug and gasket to discharge the oil in
gearbox.
(b) Change with a new gasket and assemble oil discharging
plug.
Torque: 45
±±
±±
± 5 N·m
3. Disassemble front wheels.

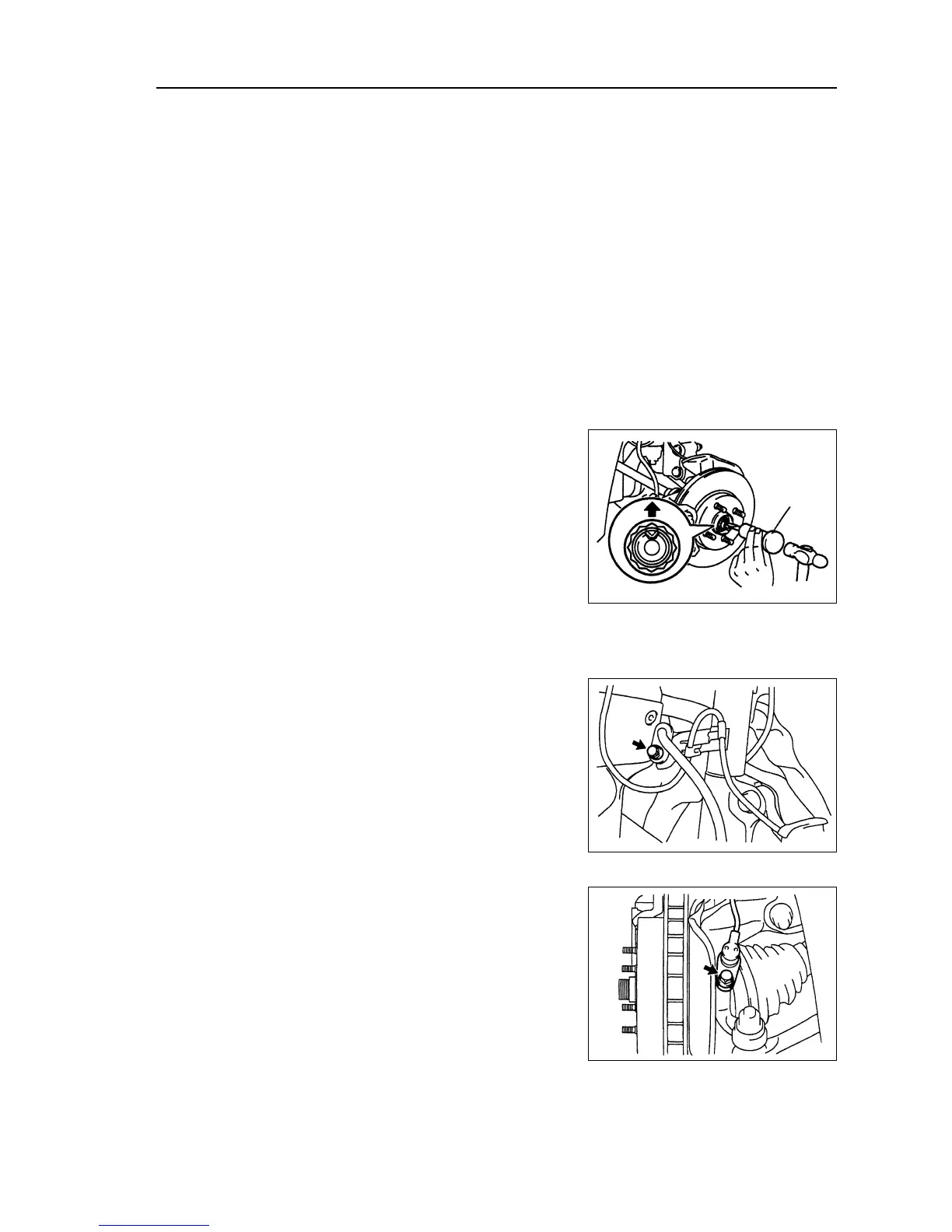

4. Disassemble fixing nut of drive shaft [64000083]
(a) Use special tool and hammer to unclench the concave part
of fixing nut.
(b) Disassemble the fixing nut.
5. Disassemble speed sensor assembly of left front
wheels (equipping with ABS) [67000020]
(a) Disassemble the bolt, and disassemble sensor wiring har-
ness and brake hose from the absorber.
(b) Disassemble the bolt, and disassemble speed sensor from
steering knuckle.
special
tool
113
