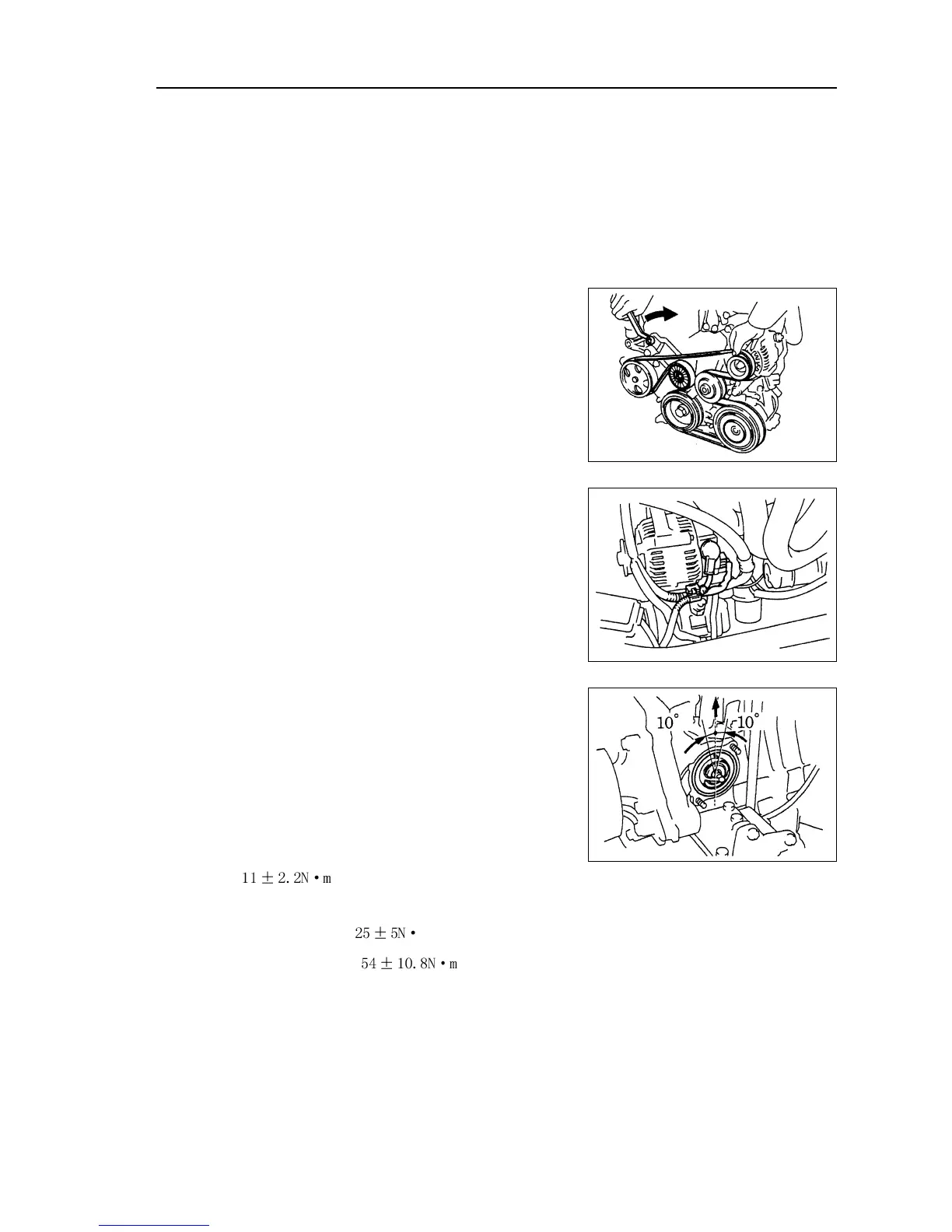

Cooling - Temperature regulator components
Replacement
1. Remove engine right bottom shield.
2. Discharge engine coolant.
3. Remove drive belt.
Slowly turn drive belt tensioner clockwise to loosen the belt;
then remove drive belt and put back the tensioner slowly to
completely loosen it.
4. Remove alternator components.
(a) Remove rubber cover and nuts.
(b) Uncouple alternator joint.
(c) Remove 2 bolts and alternator.
5. Remove water inlet pipe.
6. Remove temperature regulator.
7. Install temperature regulator.
(a) Install new gasket to temperature regulator.
(b) As shown in the diagram, install temperature regulator with
inching valve toward upward.
8. Install water inlet pipe and joint.
Torque:
9. Install alternator installation components.
Torque: 12mm bolt head: m
14mm bolt head:
10. Refill engine coolant.
11. Check there is leakage with coolant.
71
