Windshield/bodywork glass/wing mirror--Front windscreen
Front windscreen
Change
Clues on: Please assemble as the disassembly opposite sequence. Assemble directions could
be got when necessary.
1. Disassemble right front pillar trim board assembly [68010017] (referring to page 390)
2. Disassemble left front pillar trim board assembly [68010014] (referring to page 390)
3. Disassemble inner rear mirror assembly [67010013] (referring to page 390)
4. Disassemble right sun shade [68010085] (referring to page 390)
5. Disassemble left sun shade [68010084] (referring to page 390)
6. Disassemble interior front headlamp assembly [67010075] (referring to page 390)
7. Disassemble passenger handle (referring to page 390)
8. Disassemble sun shade pothook [68010086] (referring to page 390)
9. Disassemble top interior trim board
Disassemble top interior trim board
10.Disassemble top left trim tape [68000128]
11. Disassemble top right trim tape [68000129]
12. Disassemble front windscreen sealed trim board [68000062]

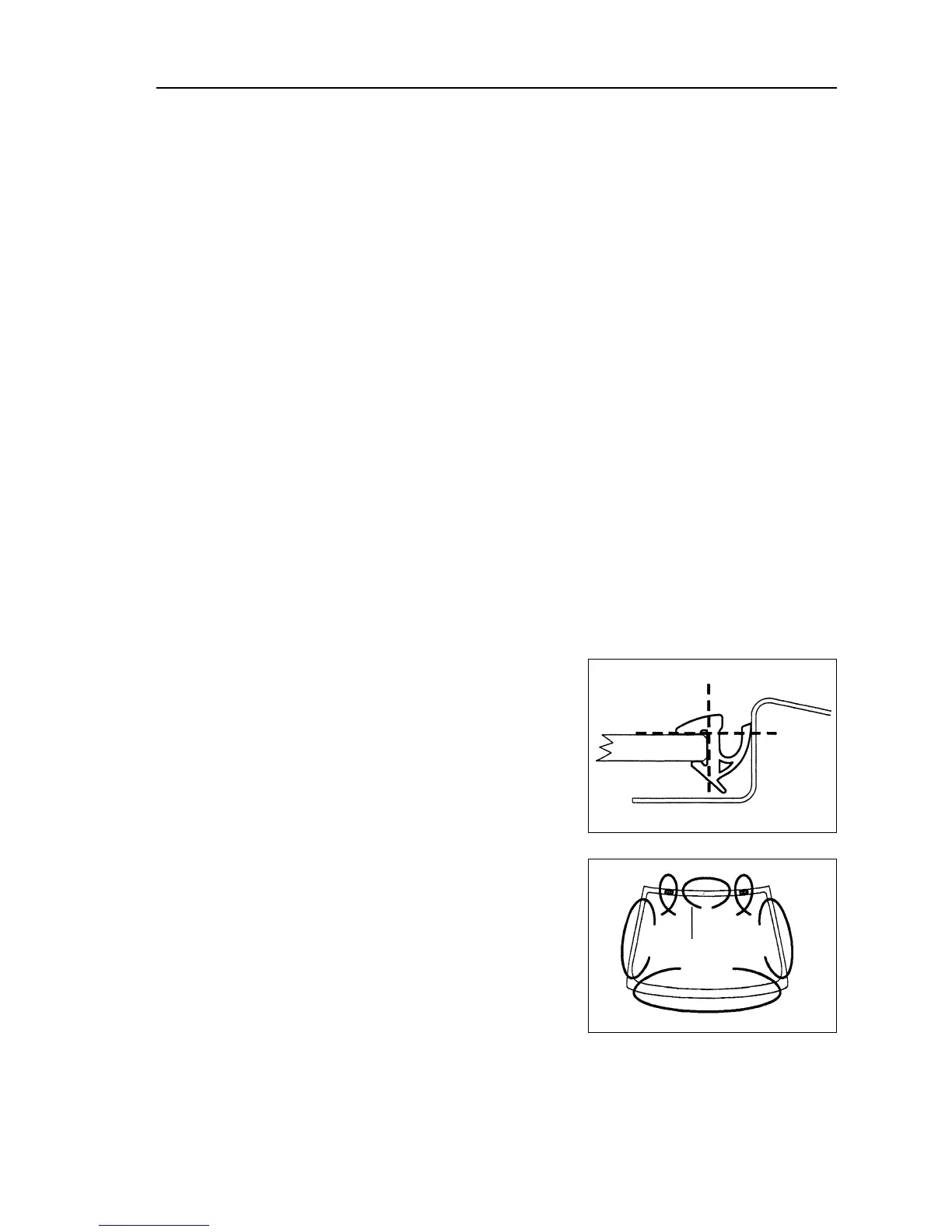

(a) Use blade to cut trim tape as the drawing.
Note: Do not cut the bodywork.
(b) Disassemble rudimental trim type.
steel wire
321
13. Disassemble front windscreen assembly [68000061]
(a) Use a steel wire to drill through windows and bodywork.
(b) Tie something like wood block at both the end of steel wire.
Clues on: Stick adhesive tape on the bodywork at work
to prevent paintwork from scraping.
Clues on: When separate window, do not damage
paintwork and interior trim board. When disassemble
front windscreen,put a plastic board between steel wire
and panel to prevent scratching the panel.
(c) Pull steel wire along front windscreen around, remove
agglutinant.
(d) Disassemble front windscreen.
Note: When cut front windscreen down, leave aggluti-
nant as much as possible on the bodywork.
14.Clean front windscreen assembly [68000061]
Use white gasoline to clean front windscreen around.
15. Assemble windscreen orientation plastic button
