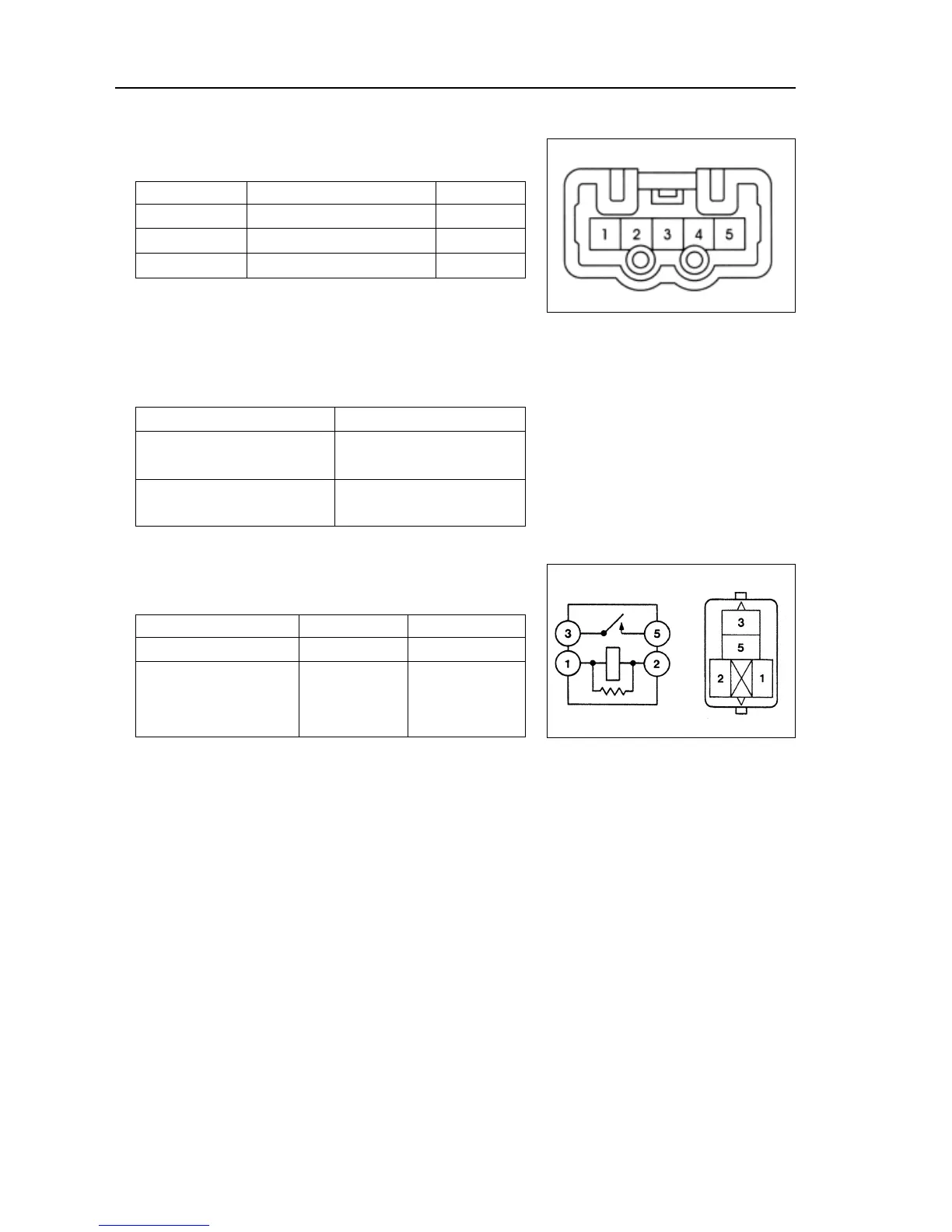

Windshield/bodywork glass/wing mirror--Electric window control system
Switch position avometer terminals situations
UP 4-5, 2-3 conduction
OFF 4-5, 1-3 conduction
DOWN 2-5, 1-3 conduction
Battery terminals working direction
Battery anode lead-terminal 5 main driving axis working
Battery cathode lead-terminal 4 as clockwise
Battery anode lead-terminal 4 main driving axis working
Battery cathode lead-terminal 5 as anticlockwise
2. Inspect electric window switch assembly
Active switch, inspect the conduction among the joint terminals.
If the conduction does not limit to regulations, replace electric
window main switch.
3. Inspect left rear electric window motor assembly.
(a) Inspect the function of left rear electric window assembly.
(1) Inspect whether the motor works calmly.
4. Inspect electric window shift relay [67000061]
Check the conduction of relay (mark: P/W)
If the conduction does not limit to regulations, replace relay.
 320 
Conditions avometer regular situations
Always 1-2 conduction
Supply battery voltage
To that between terminal 1 3-5 conduction
and terminal 2
