Chair--Front chair
Overhaul
Hint:
z When assembling, please work by the sequence opposite with disassembling sequence, but
when it has items that need to pay special attention, it will add special specification.
z This overhaul procedure is the disassembling procedure for left side, and the procedure for
right side is same.
349

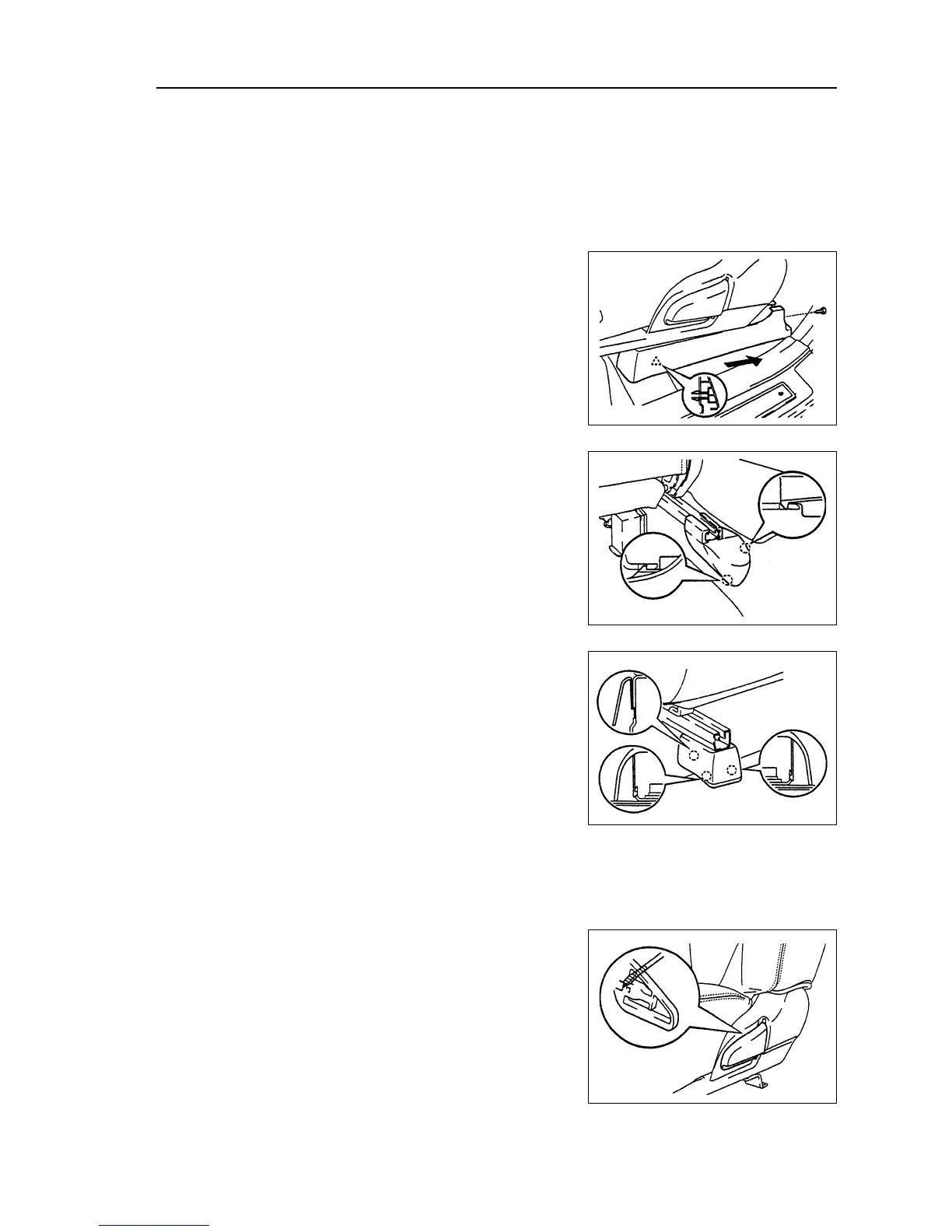

1. Disassemble driver chair assembly [68010061]
(a) Disassemble fixing clamp.
(b) Use screw driver to disassemble left lower trim board of driver
chair [68010062].
Hint: before using screw driver, it is necessary to wrap
its needled top with adhesive tape.
(c) Use screw driver to disassemble right rear lower trim board
of driver chair [68010065].
Hint: before using screw driver, it is necessary to wrap
its needled top with adhesive tape.
(d) Use screw driver to disassemble right front lower trim board
of driver chair [68010064].
Hint: before using screw driver, it is necessary to wrap
its needled top with adhesive tape.
(e) Disassemble the joint.
(f) Disassemble four bolts and front chair.
Note: Do not damage automobile body.
2. Disassemble front chair pillow assembly [68010066]
3. Disassemble chair vertical adjusting button
Disassemble fixing clamp and chair vertical adjusting
button.
4. Disassemble declining adjustment releasing handle.
Use screw driver to disassemble declining adjustment releas-
ing handle.
Hint: before using screw driver, it is necessary to wrap its
needled top with adhesive tape.
To Next Page
