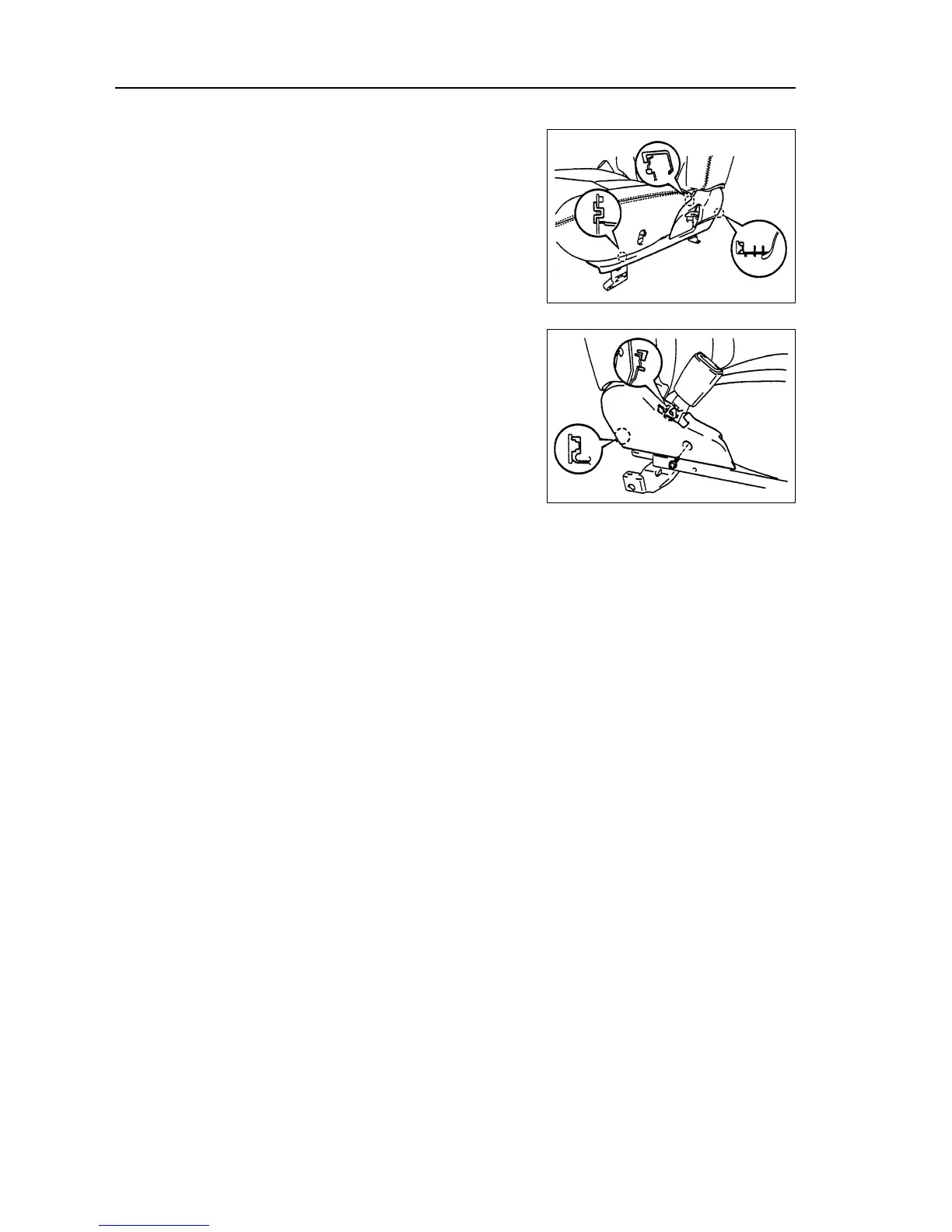

5. Disassemble lower trim cover of front chair gasket.
6. Disassemble inner trim cover of front chair gasket.
Disassemble the screw and inner trim cover of front chair gasket.
7. Disassemble left front safety belt locker assembly
[68010040]
(a) Cut off fixing clasp.
(b) Disassemble the bolt and left/right front safety belt locker
Chair--Front chair
350
assembly.
8. Disassemble chair backrest assembly.
(a) Disassemble the clasp.
(b) Over turn exterior cover of chair backrest , then disassemble the clasp.
(c) Disassemble four bolts and chair backrest assembly.
9. Disassemble exterior cover of chair backrest .
(a) Disassemble head pillow bracket.
(b) Disassemble fixing clamp and adjusting lever of waist support lever.
(c) Disassemble the clamp, then disassemble exterior cover of chair backrest with gasket.
(d) Disassemble the clamp, then disconnect exterior cover of chair backrest with chair backrest gasket.
(e) Disassemble two screws and waist support lever.
10. Disassemble exterior cover of chair gasket.
(a) Disassemble fixing clamp, then disassemble exterior cover of chair backrest with gasket.
(b) Disassemble the clamp, then disconnect exterior cover of chair backrest with chair backrest gasket.
11. Disassemble chair gasket bracket assembly.
12. Disassemble chair front and rear adjusting handle.
Use screw driver to disassemble chair front and rear adjusting handle.
Hint: before using screw driver, it is necessary to wrap its needled top with adhesive tape.
13. Assemble chair gasket bracket assembly.
Use four bolts to assemble chair gasket bracket on chair adjustment assembly.
Torque: 20 N
⋅⋅
⋅⋅
⋅m
14. Assemble exterior cover of chair gasket.
(a) Use new clamp to assemble exterior cover of chair gasket in chair gasket.
