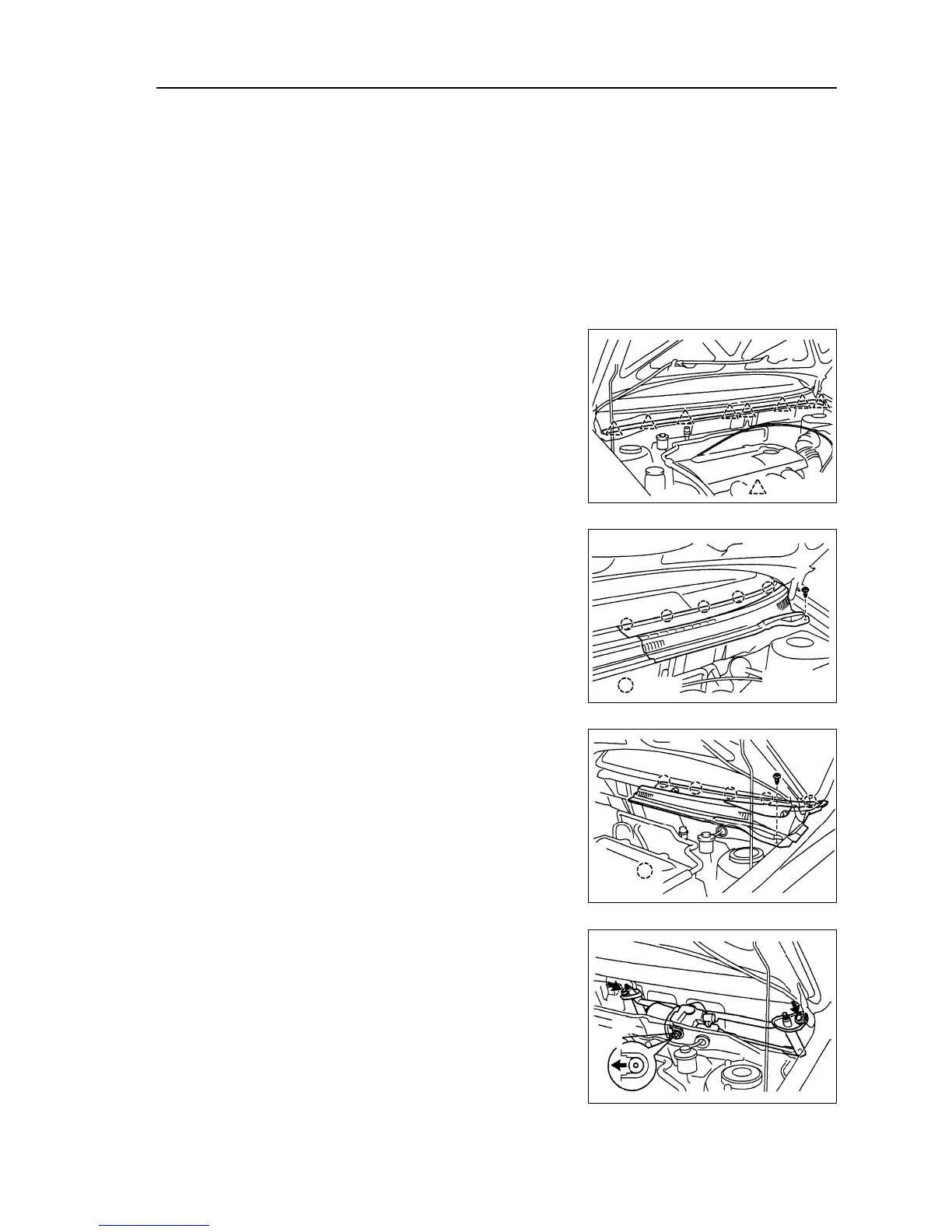

Wiper and cleaner--Wiper generator
Fixing clasp
Fixing
claw
Wiper generator
Change
1. Disassemble wiper arm cap.
2. Disassemble auxiliary wiper arm assembly
[68000059]
Disassemble screw cap and auxiliary wiper arm assembly.
3. Disassemble main wiper arm assembly [68000057]
Disassemble screw cap and main wiper arm assembly.
4. Disassemble generator cap to fire barrier seal.
Separate eight fixed buckles to disassemble the seal from gen-
erator cap to fire barrier.
5. Disassemble ventilation cover on passenger side.
Disassemble five fixed jaws so as to disassemble ventilation
cover on passenger side.
6. Disassemble ventilation cover on driver side.
Disassemble five fixed jaw so as to disassemble ventilation
cover on driver side.
7. Disassemble wiper connecting rod assembly
[68000053]
(a) Disassemble the joint.
(b) Disassemble the bolt.
(c) Slide wiper connecting rod assembly to passenger side to
separate meshing of rubber pin so as to disassemble wiper
connecting nod.
Fixing
claw
303
Pin
To Next Page
