Wiper and cleaner--Wiper generator

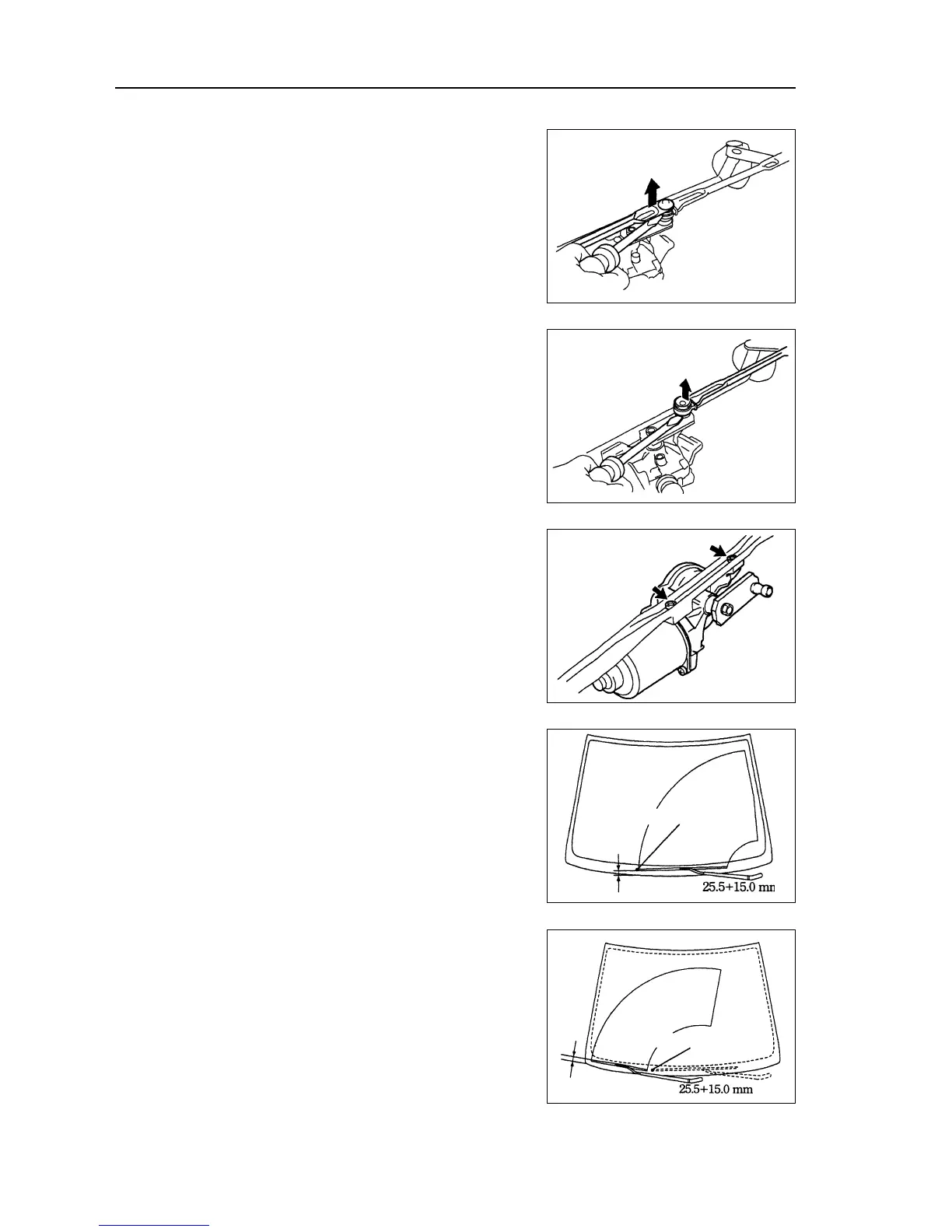

8. Disassemble wiper generator
(a) Separate two connecting rod caps of shaft pins.
(b) Separate two star- bolts so as to disassemble wiper
generator.
9. Assemble wiper generator
(a) Daub MP grease to connecting rod caps of wiper generator.
(b) Use two Star-bolts to assemble wiper generator to wiper
connecting rod.
Torque: 5.39 N.m
10. Assemble wiper connecting rod assembly
[68000053]
(a) Meshing wiper connecting rod rubber pin
(b) Use two bolts to assemble wiper connecting rod.
Torque:5.5 N.m
(c) Connect the joints.
11. Assemble assistant wiper arm assembly [68000059]
(a) Use steel brush to clean small tooth slot of wiper pivot.
(b) Use bolt cap to fix wiper arm on passenger side to make
wiper blade at the position as drawing.
Torque: 20.5 N.m
12. Assemble main wiper arm assembly [68000057]
(a) Use steel brush to clean small tooth slot of wiper pivot.
(b) Use bolt cap to fix wiper arm on driver side to make wiper
vane at the position as drawing.
Assembly starting and
stopping position
304
Assembly starting and
stopping position
