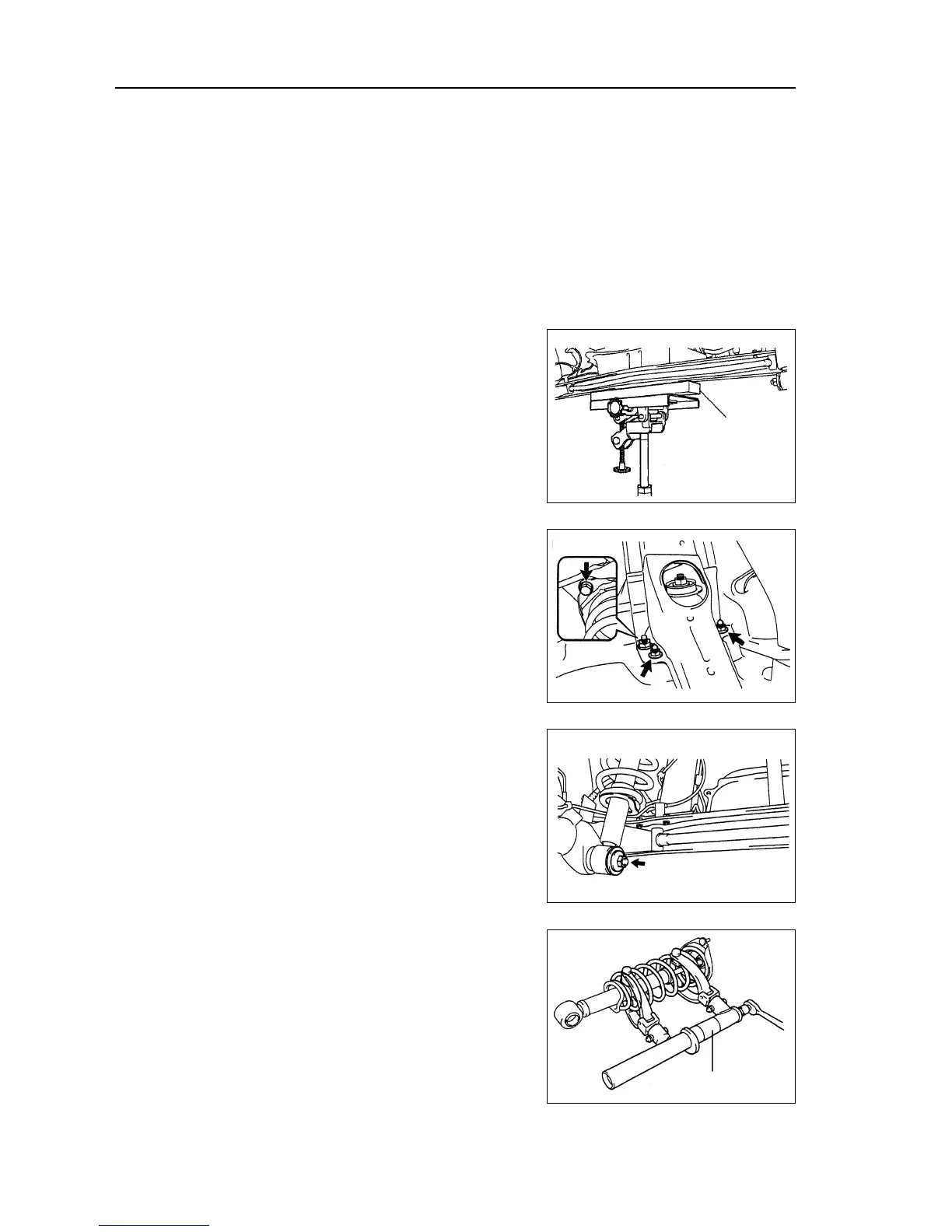

Rear strut assembly
Overhaul
Hint: the following overhaul procedures only aim at left side (LH), and the overhaul procedures
of another side (RH) are the same as LH.
1. Remove rear wheels.
2. Remove rear left seat backrest assembly [68010078] (see Page 352).
3. Remove spare tire trim cover assembly.
4. Remove rear floor trim
5. Remove trunk left garnish [68000112].
6. Remove rear left strut assembly [64000098].
(a) Support rear shaft with a jack.
(b) Remove 2 nuts and bolts.
Rear suspension - Rear strut assembly
(c) Remove nuts, gasket and rear strut assembly.
7. Remove rear left strut assembly [64000098].
(a) Compress helical spring with special tool.
Note: do not use pneumatic wrench, or the special tool
will be damaged.
Wooden
block
Special tool
