Starting and charging - Alternator components
Alternator components
Replacement

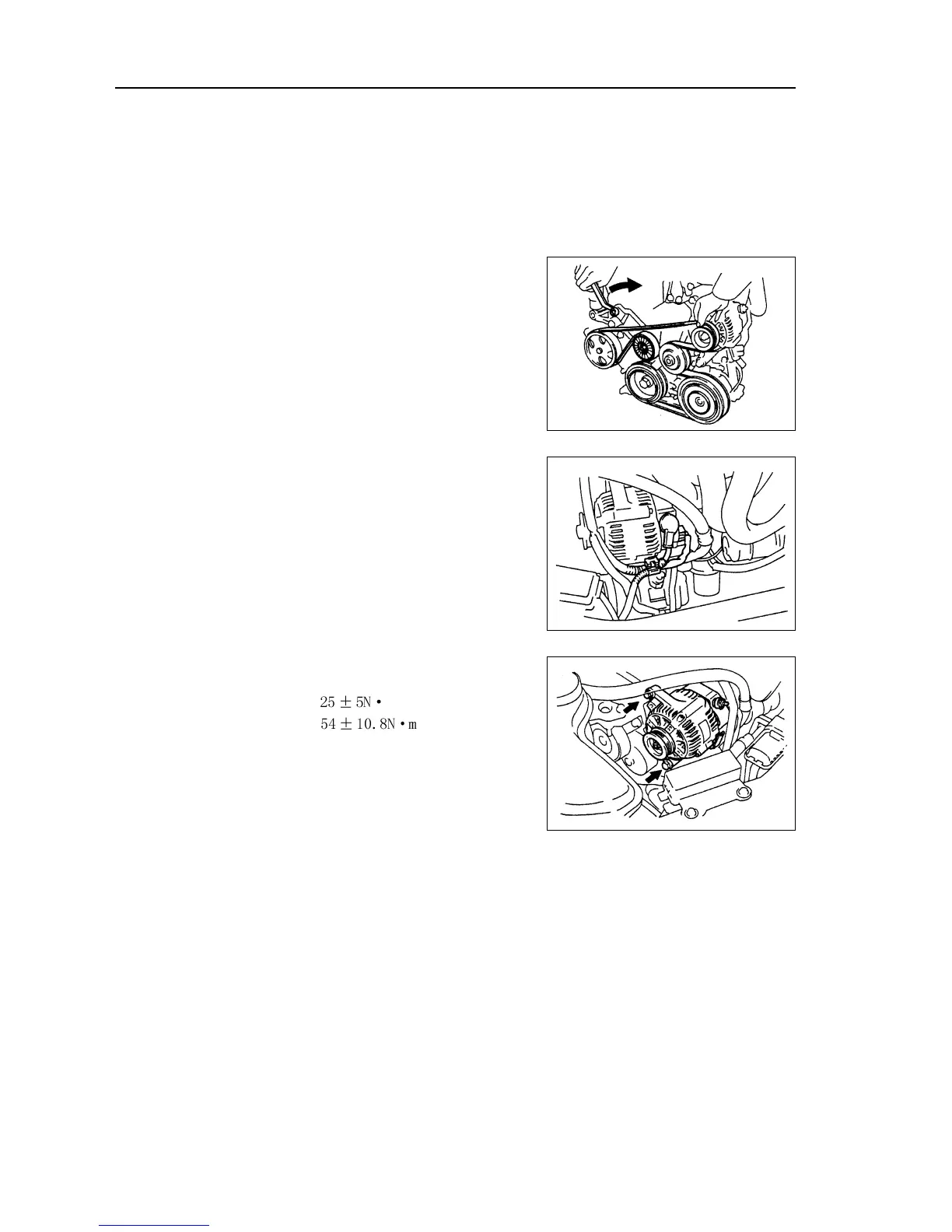

1. Remove engine right bottom shield.
2. Remove drive belt.
Slowly turn drive belt tensioner clockwise to loosen the belt,
then remove drive belt and put back the tensioner slowly to
completely loosen it.
3. Remove alternator components.
(a) Remove rubber cover and nuts.
(b) Uncouple alternator joint.
(c) Remove 2 bolts and alternator.
4. Install alternator components.
Torque: 12mm head bolt : m
14mm head bolt :
84
