Rear suspension - Rear stabilizer bar
Rear stabilizer bar
Overhaul
1.

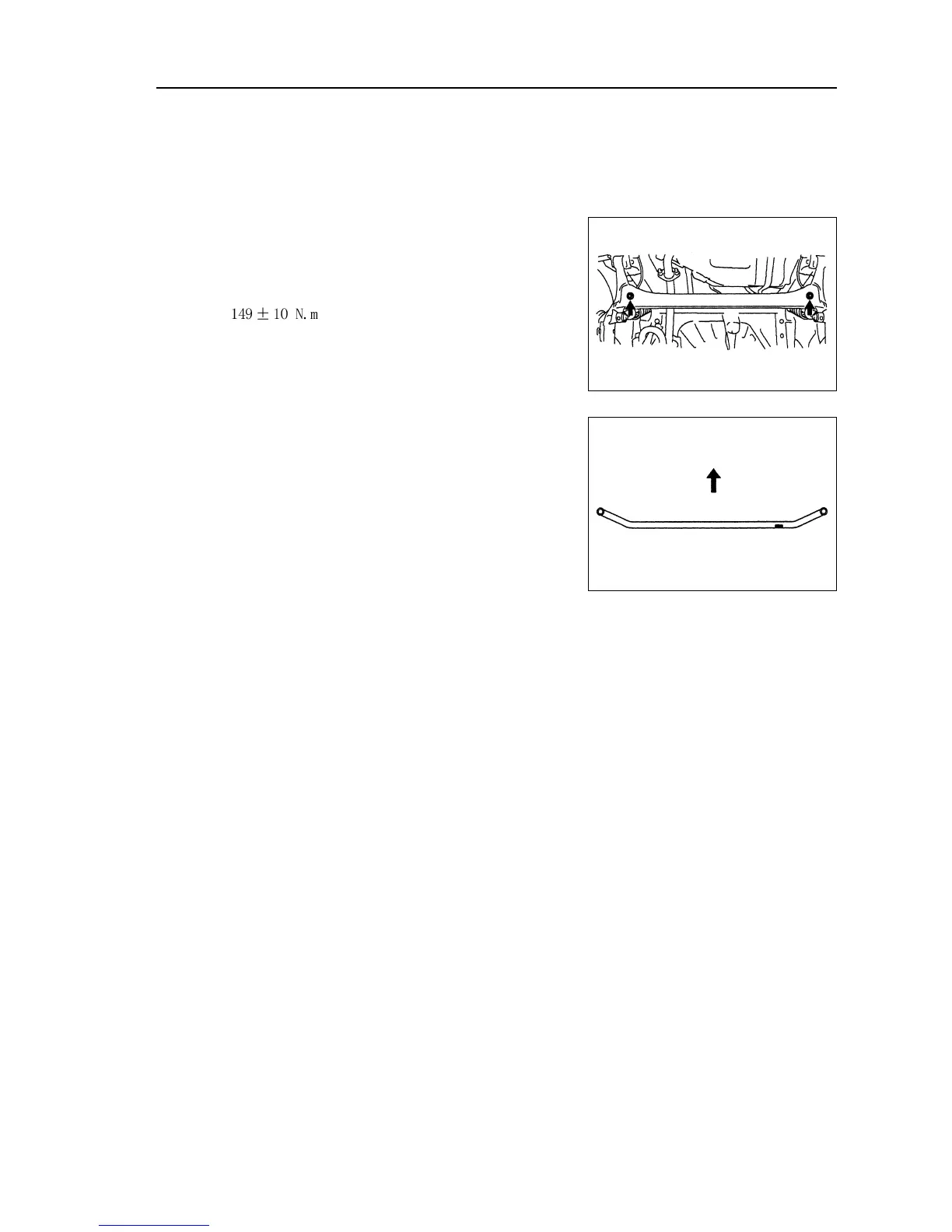

Remove rear stabilizer bar assembly.
Remove 2 bolts, nuts and stabilizer bar.
2.
Install rear stabilizer bar assembly.
Install 2 bolts, nuts and stabilizer bar.
T
orque:
Hint:
install the tag on balance bar toward rear right
side of vehicle.
Front
Ta
g
105
115
117
