Cooling - Water pump assembly
Water pump assembly
Replacement

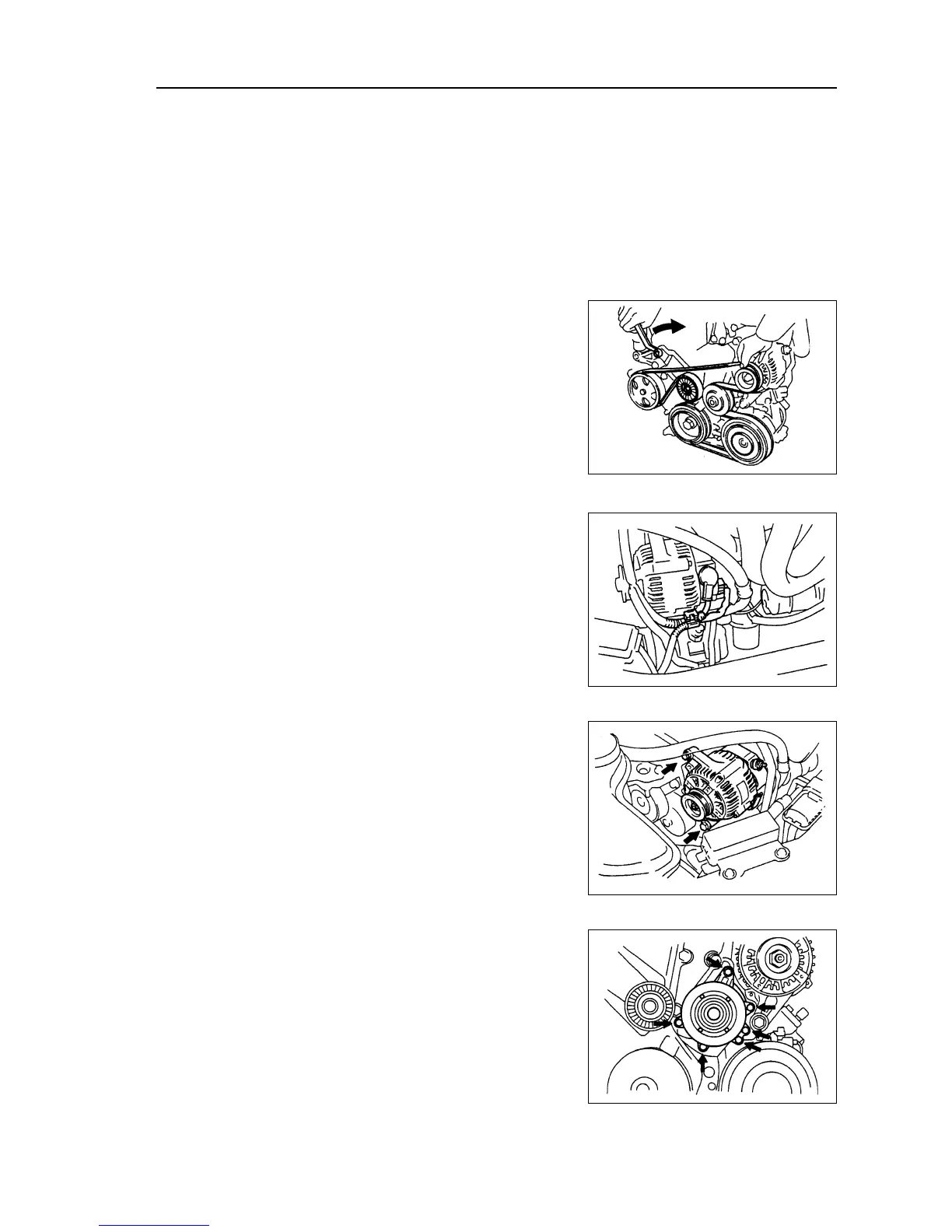

1. Remove engine right bottom shield.
2. Discharge engine coolant.
3. Remove drive belt.
Slowly turn drive belt tensioner clockwise to loosen the belt;
then remove drive belt and put back drive belt tensioner slowly
to completely loosen the tensioner.
4. Remove alternator assembly.
(a) Remove rubber cover and nuts.
(b) Uncouple alternator joint.
(c) Remove 2 bolts and alternator.
5. Remove water pump assembly.
Remove 6 bolts, water pump and o-ring.
