Cooling - Water pump assembly
6. Install water pump assembly.
(a) Install new o-ring on water pump.

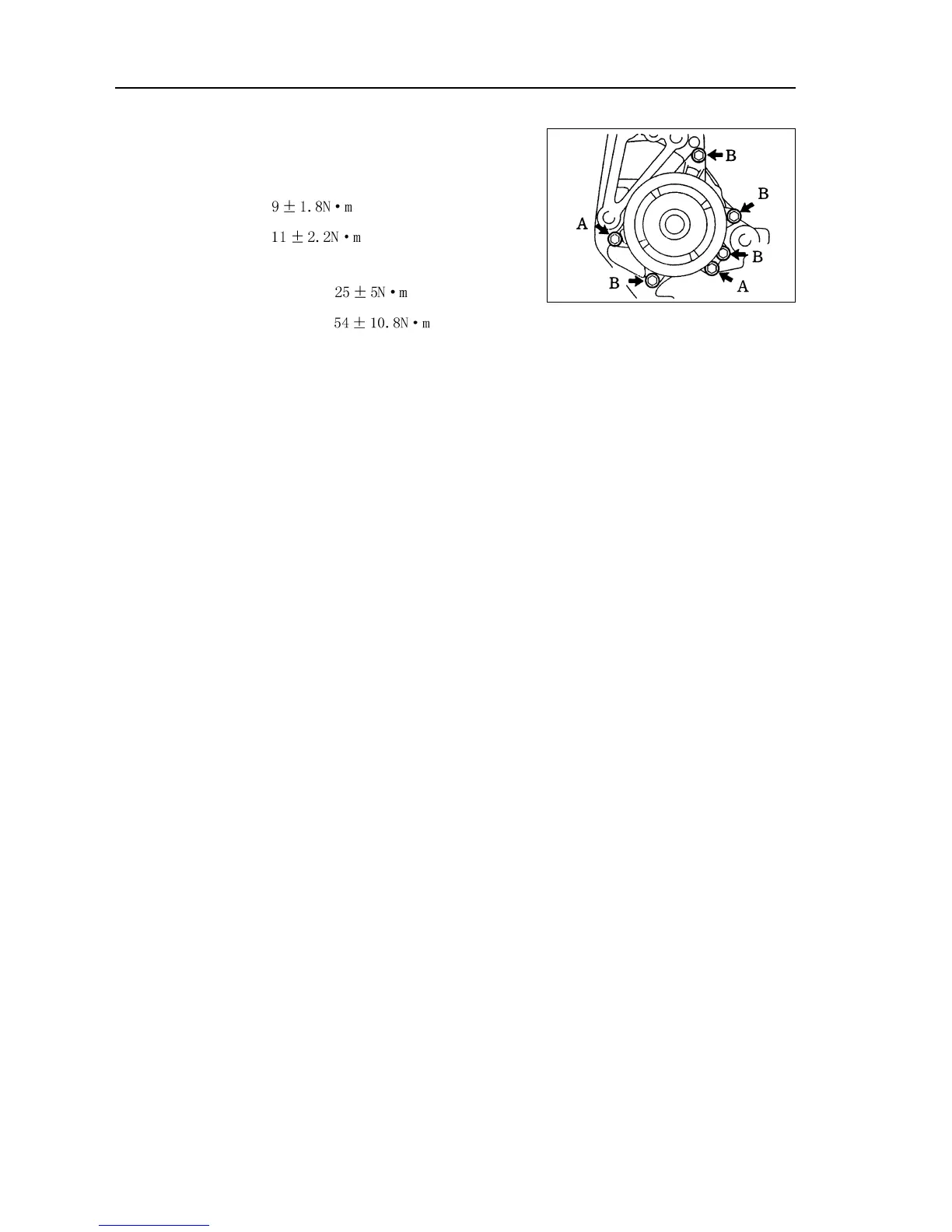

(b) Install water pump with 6 bolts.
Torque: bolt A:
Bolt B:
7. Install alternator mounting components.
Torque: 12mm bolt head:
14mm bolt head:
8. Refill engine coolant.
9. Check there is leakage with coolant.
70
