Front suspension - Front left lower control arm ball joint assembly
Front left lower control arm ball joint assembly
Replacement
Hint: the replacement procedures of right side are the same as that of left side.
1. Remove front wheels.
2. Remove front left shaft hub nuts (see Page 123).
3. Disassemble front left speed sensor assembly [67000020] (see Page 123).
4. Disassemble front left brake wheel pump assembly and brake block (see Page 141).
5. Remove front left brake assembly [64000134] (see Page 141).
6. Disassemble left side transversal lever assembly (see Page 123).
7. Disassemble lower left control arm assembly [64000091] (see Page 94).
8. Remove front left shaft hub assembly (see Page 123).
9. Remove lower left control arm ball joint assembly [64000093] (see Page 123).
10. Check lower left control arm ball joint assembly [64000093].

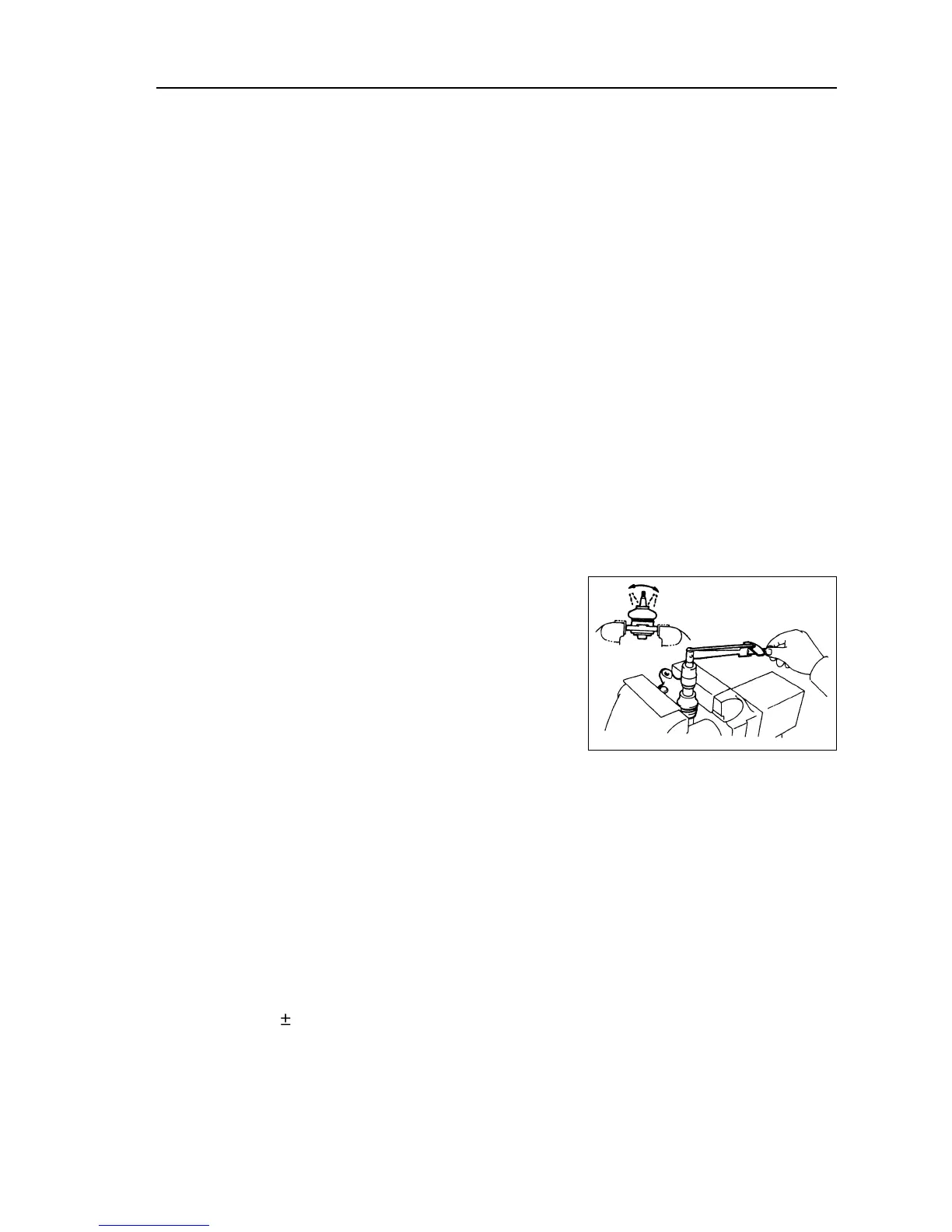

(a) As shown in the diagram, before installing nuts, shake
joint bolts forward and backward 5 times.
(b) Shake nuts continuously with torque wrench at the
speed of one circle per 2~4 s, and then read out torque
value at the 5
th
circle.
Rotating torque: 1.0~4.9 N.m
11. Install lower left control arm ball joint assembly
[64000093] (see Page 123).
12. Install front left shaft hub assembly
(see Page 123).
13. Install lower left control arm assembly [64000091] (see Page 123).
14. Install left side transversal lever assembly (see Page 123).
15. Install front left brake assembly [64000134] (see Page 141).
16. Install front left brake wheel pump assembly and brake block (see Page 141).
17. Install front shaft hub nuts (see Page 123).
18. Install front wheels.
Torque: 103 10 N.m
19. Check and adjust front wheel alignment (see Page 87).
20. Check ABS sensor signal.
99
