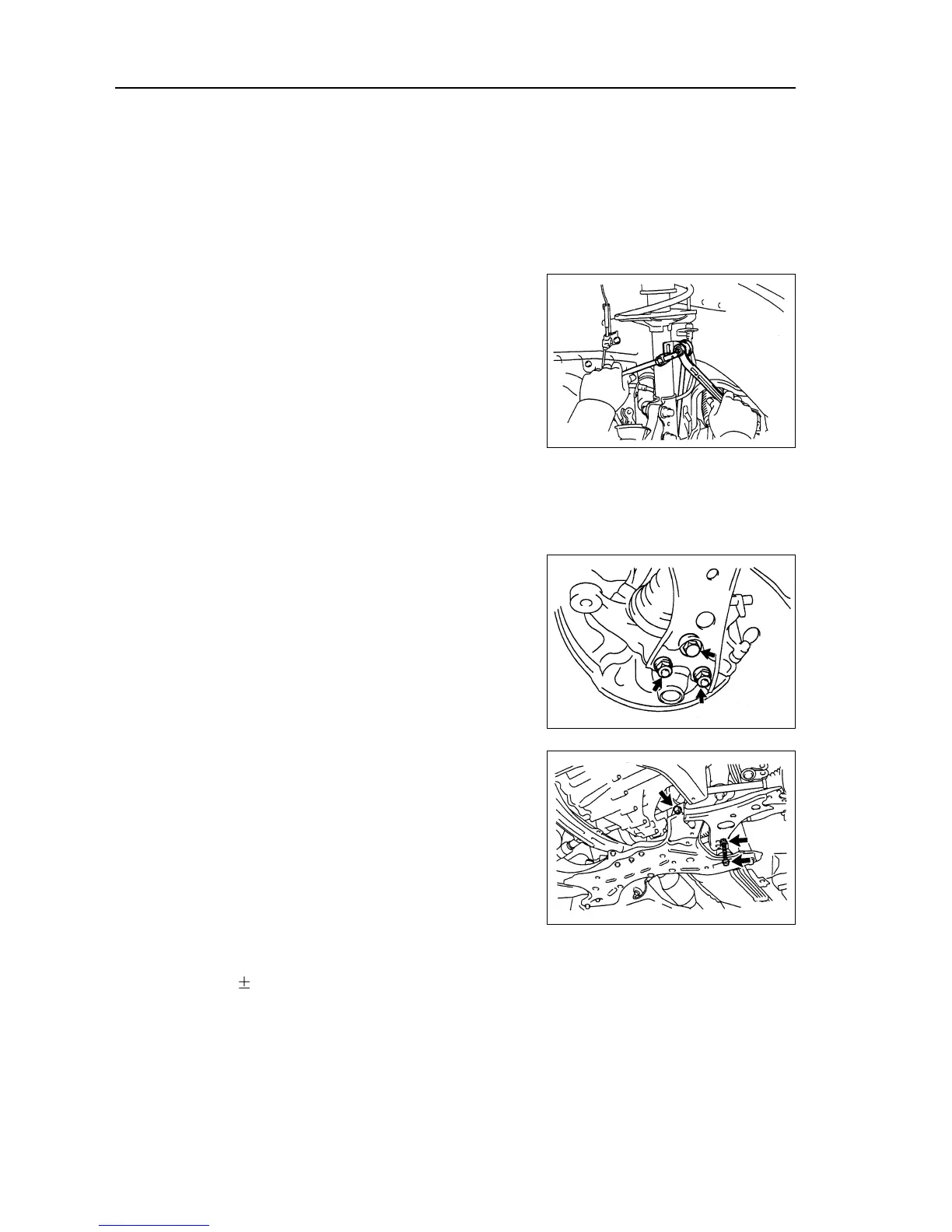

Front suspension - Lower left control arm assembly
Lower left control arm assembly
Replacement
Hint: the replacement procedures of right side are the
same as that of left side.
1. Remove front wheels.
2. Separate front left stabilizer link assembly
[64000097].
Remove nuts, and disassemble stabilizer link from shock
absorber.
Hint: if ball joint rotates with nuts, please fix bolts with
hex wrench (6mm).
3. Separate right side front stabilizer link assembly
[64000097].
4. Remove fixed nuts of front left drive shaft (see Page
123).
5. Separate front left wheel speed sensor assembly [67000020].
6. Separate front left brake wheel pump assembly (see Page 141).
7. Remove front left brake assembly [64000134] (see Page 142).
8. Separate left side transversal lever assembly.
9. Separate lower left control arm assembly [64000091].
Remove bolts and 2 nuts, and separate lower control arm
from lower end ball joint.
10. Remove front left shaft hub assembly (see Page
123).
11. Remove lower left control arm assembly
[64000091].
Remove 2 bolts, nuts and lower control arm.
12. Temporarily lock up lower left control arm as-
sembly [64000091].
Install lower control arm, and temporarily lock up 2 bolts
and nuts.
13. Install front left shaft hub assembly (see Page
123).
14. Install lower left control arm assembly [64000091].
Connect lower control arm with ball joint with 2 bolts and nuts.
Torque: 142 10 N.m
15. Install left side transversal lever assembly.
(See Page 123)
16. Install front left brake assembly.
[64000134] (See Page 141)
94
