Geely FC User Manual

Air conditioner--Control assembly, air conditioner control panel (AUTO A/C)
Overhaul

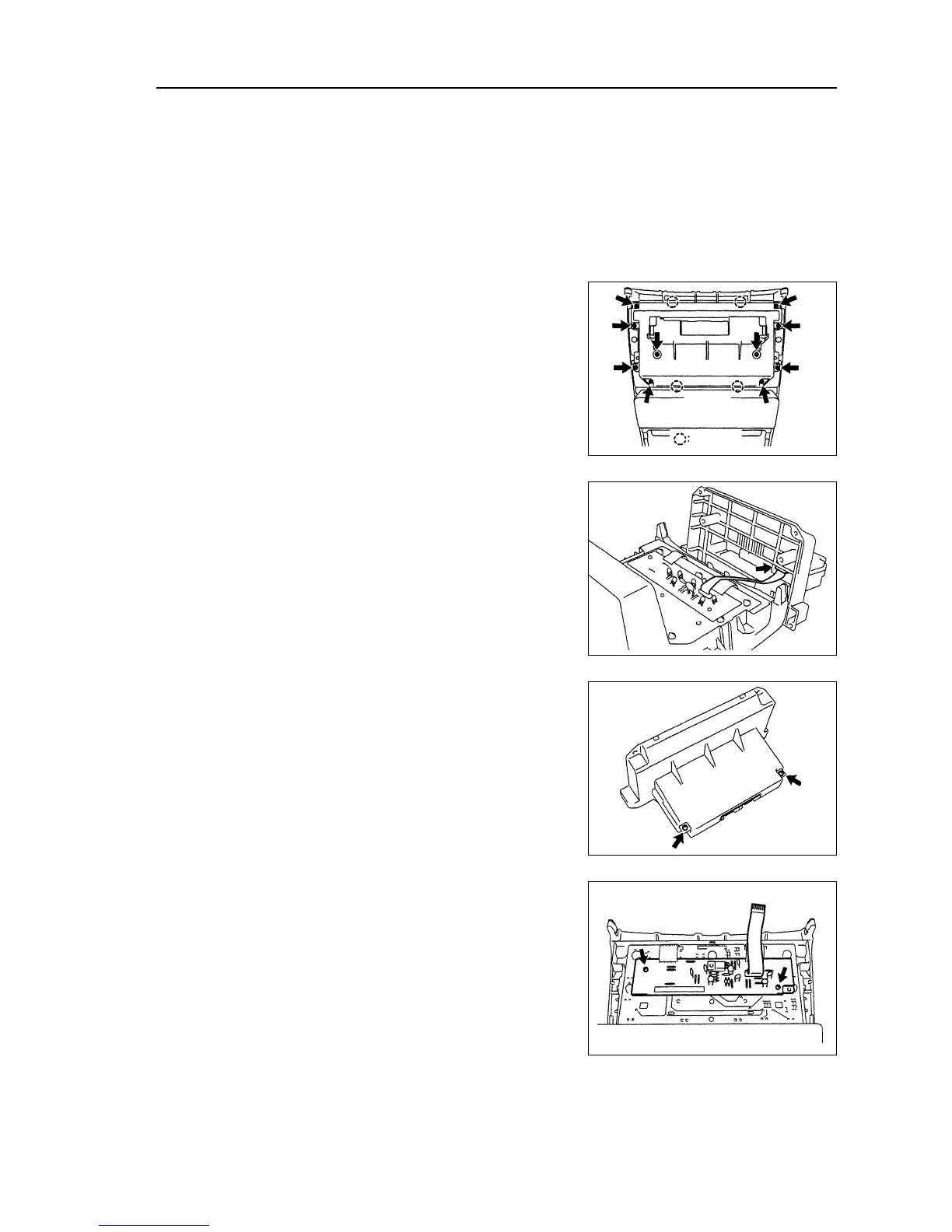

1. Disassemble central wind outlet trim board of panel.
2. Disassemble decoration panel assembly of shift
organization. [68000076]
3. Disassemble central storage box.
4. Disassemble control panel assembly of air
conditioner. [67000148]
5. Disassemble control assembly and control panel
assembly of air conditioner.
(a) Disassemble ten screws.
(b) Disconnect four fixed claws and disassemble control as-
sembly and control panel of air conditioner.
6. Disassemble control box of air conditioner.
Disconnect flat linking wire and disassemble control box of
air conditioner.
7. Disassemble electric circuit board of air conditioner
control module.
(a) Disassemble two screws.
(b) Disassemble electric circuit board from air conditioner con-
trol box.
8. Disassemble control panel wiring of air conditioner.
(a) Disassemble two screws.
(b)Disassemble control panel wiring of air conditioner from
air conditioner control box.
9. Disassemble control box assembly of air conditioner.
10. Disassemble switch bulb of air conditioner control
panel.
11. Disassemble control button assembly.
12. Disassemble NO.2 warm control button
Fixing claw
 223 
Control assembly, air conditioner control panel
(AUTO A/C)
