Air conditioner--Condenser Assembly
Condenser Assembly
Inspection on the automobile
1. Check the Condenser Assembly.
(a) If the radiating fins of condenser assembly are dirty, wipe it with water and blow it to dry with com-
pressed air.
Notice: Do not damage the radiating fin.
(b) If the radiating fin is curved, repair it with gad screw driver or pliers.
2. Check whether the Condenser leaks.
(a) Use leakage detector to check whether the Refrigerant leaks at the joint of the pipelines.
(b) If it leaks, check the fastening torque of joint part.
Overhaul

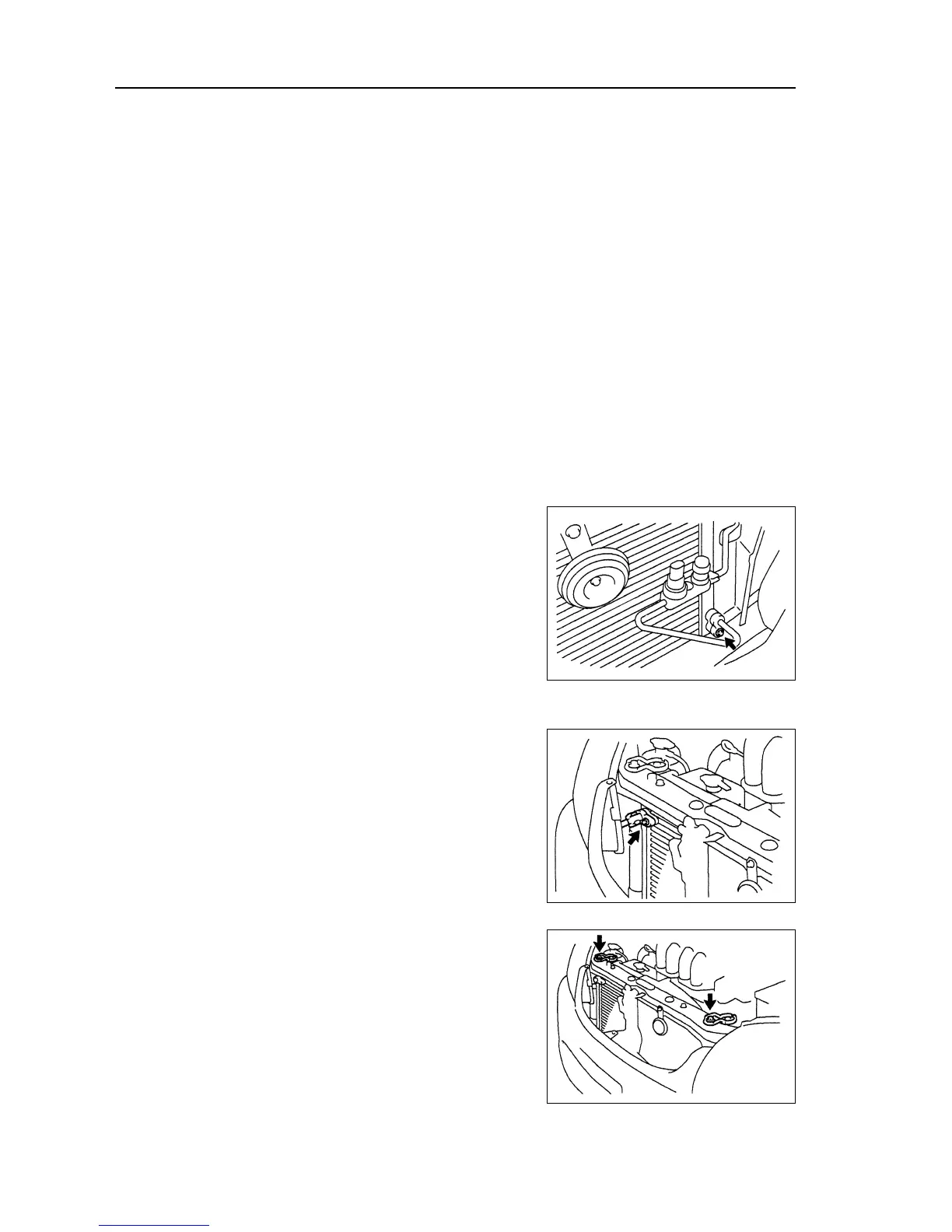

1. Disassemble the radiator cover assembly.
2. Recycle the HFC-134a(R134a)
3. Disassemble the Refrigerant liquid pipe A.
(a) Disassemble the bolt from the condenser assembly and
disconnect the Refrigerant liquid pipe A.
(b) Disassemble the O-shape ring from the Refrigerant liquid
pipe.
Notice: The pipeline should be covered immediately
to prevent damp or dust from getting into the system.
4. Disassemble the Refrigerant NO.1 high pressure
hose.
(a) Disassemble the bolt and the Refrigerant NO.1 high pres-
sure hose from the condenser assembly.
(b) Disassemble the O-shape ring from the Refrigerant high
pressure hose.
Notice: The pipeline should be covered immediately
to prevent damp or dust from getting into the system.
5. Disassemble the condenser assembly.
(a) Disassemble those two bolts and the bracket on water tank.
236
