Air conditioner--Compressor assembly
z If Refrigerant oil quantity in the disassembled old com-
pressor is too little, check whether the system leaks Re-
frigerant oil.
z Only could use 100PG Refrigerant oil.

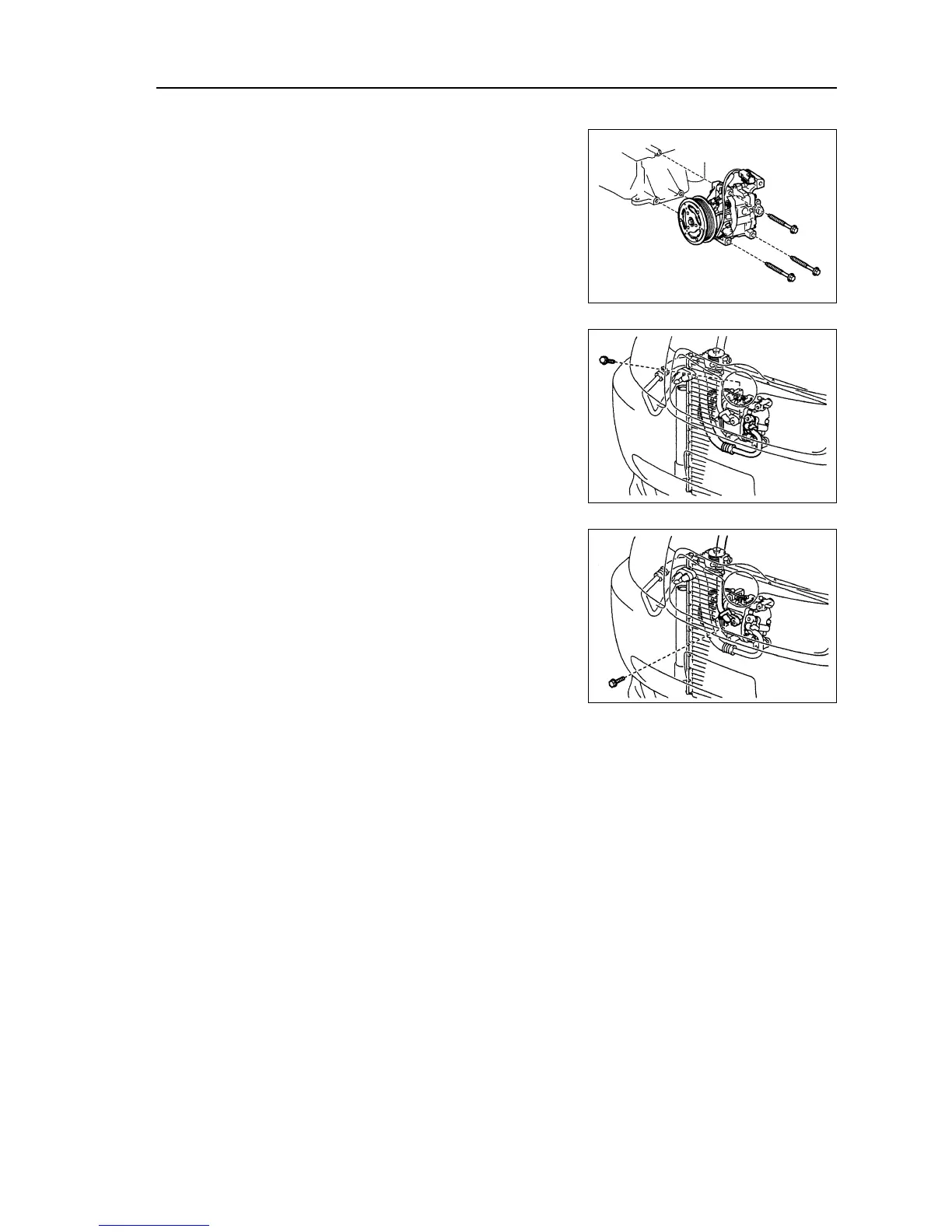

9. Assemble compressor and electromagnetic clutch.
(a) Assemble compressor, electromagnetic clutch and three
bolts.
Torque: 24.5 N
⋅⋅
⋅⋅
⋅m
(b) Connect the joint.
10. Assemble driving belt.
11. Assemble refrigerant No.1 high pressure hose.
(a) Disassemble the cover on pipeline joint.
(b) Spread Refrigerant oil on new O-shape loop and assemble
it on No.1 refrigerant high pressure hose.
Refrigerant oil: 100PG
(c) Connect No.1 refrigerant high pressure hose to compres-
sor and electromagnetic clutch and assemble the bolts.
Torque: 9.8 N
⋅⋅
⋅⋅
⋅m
12. Assemble refrigerant No.1 low pressure hose.
(a) Disassemble the cover on pipeline joint.
(b) Spread Refrigerant oil on new O-shape loop and assemble
it on No.1 refrigerant low pressure hose.
Torque: 23 N
⋅⋅
⋅⋅
⋅m
(c) Connect No.1 refrigerant low pressure hose to compres-
sor and electromagnetic clutch and assemble the bolts.
Torque: 9.8 N
⋅⋅
⋅⋅
⋅m
13. Fill the refrigerant (referring to page 221).
Regulated quantity: 660 ± 10g
14. Heat the engine.
15. Check whether the refrigerant leaks.
