Chair--Rear chair (separating type)
Rear chair (separating type)
Overhaul
Hint:
When assembling, please work by the sequence opposite with
disassembling sequence, but when it has items that need to
pay special attention, it will add special specification.

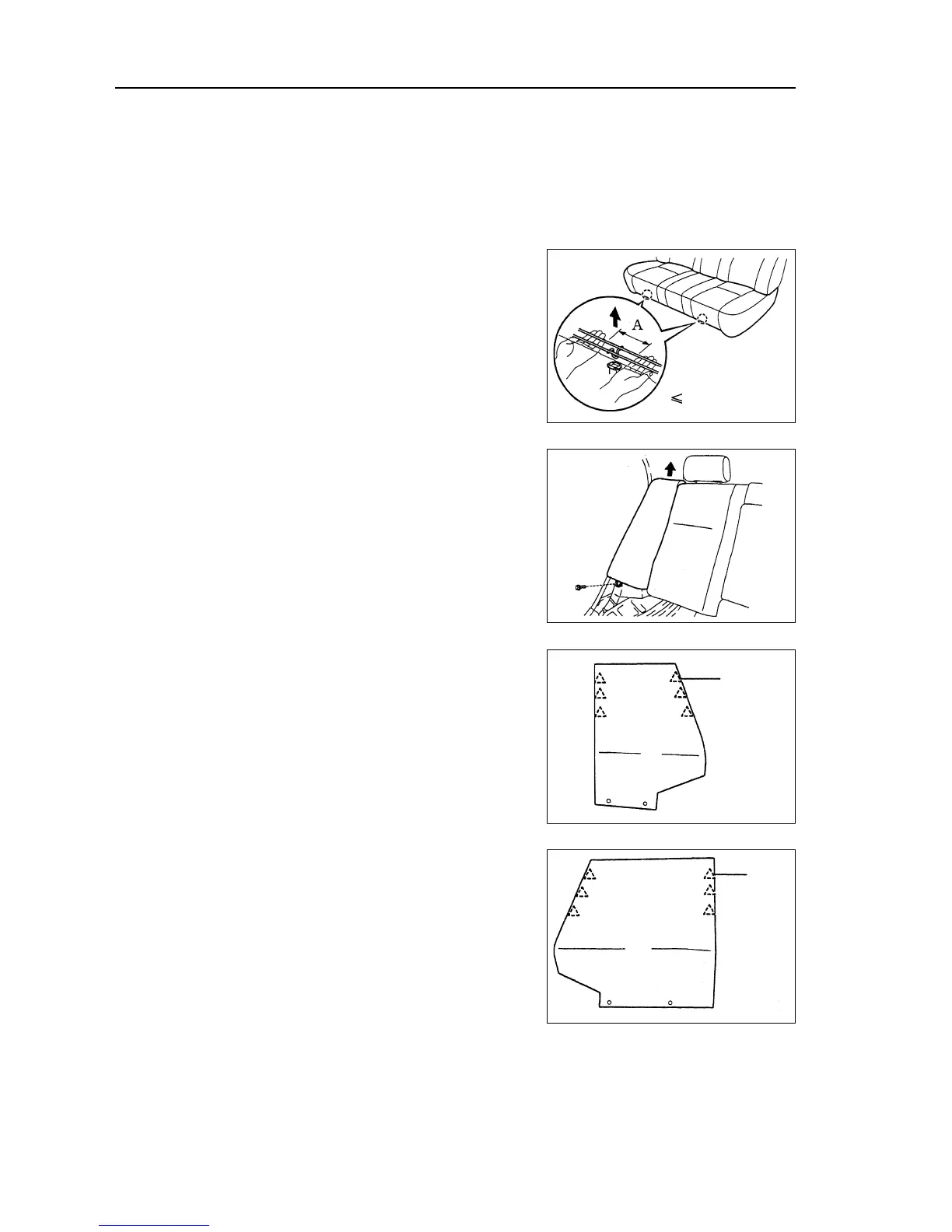

1. Disassemble rear row chair cushion assembly.
Pull rear row chair cushion assembly upwards, then disas-
semble it.
Note: when disassembling, it is necessary to hold the
bracket at two sides of fixing clasp, then pull it upwards
to prevent it from distorting.
2. Disassemble rear chair head pillow assembly
[68010077]
3. Disassemble rear row chair backrest assembly.
4. Make the backrest face the front, then disassemble
four fixing clamps.
5. Disassemble four bolts and rear chair backrest
assembly.
6. Disassemble rear row chair right backrest assem-
bly [68010079]
Disassemble the bolt and rear row chair right backrest
assembly.
7. Disassemble rear row chair left backrest assembly
[68010078]
Disassemble two bolts and central backrest hinge.
8. Disassemble exterior cover of rear row backrest
(small).
(a) Disassemble fixing clamp, then disassemble rear row chair
gasket cloth.
(b) Disassemble fixing clamp, then disassemble head pillow
bracket.
(c) Disassemble exterior cover of rear row backrest with gasket.
(d) Disassemble the clamp, then disconnect exterior cover of
rear row backrest with gasket.
9. Disassemble exterior cover of rear row backrest (big).
(a) Disassemble central handrail hinge trim cover.
(b) Disassemble the bolt and central handrail.
A: 100mm
Fixing
clasp
Fixing
clasp
352
(c) Disassemble fixing clamp, then disassemble rear row chair gasket cloth.
(d) Disassemble the clamp, then disassemble head pillow bracket.
(e) Disassemble exterior cover of rear row backrest with gasket.
To Next Page
