(b) Use new clamp to assemble chair gasket on chair gasket
bracket.
Hint:
z Do not damage or dirty exterior cover of chair
gasket.
z When assembling clamp, it is necessary to prevent
exterior cover of chair gasket from crinkling.
15. Assemble exterior cover of chair backrest .
(a) Use new clamp to assemble exterior cover of chair backrest
in chair gasket.
(b)Use new clamp to assemble chair backrest on chair
backrest bracket.
Hint:
z Do not damage or dirty exterior cover of chair
backrest .
z When assembling clamp, it is necessary to prevent
Chair--Front chair

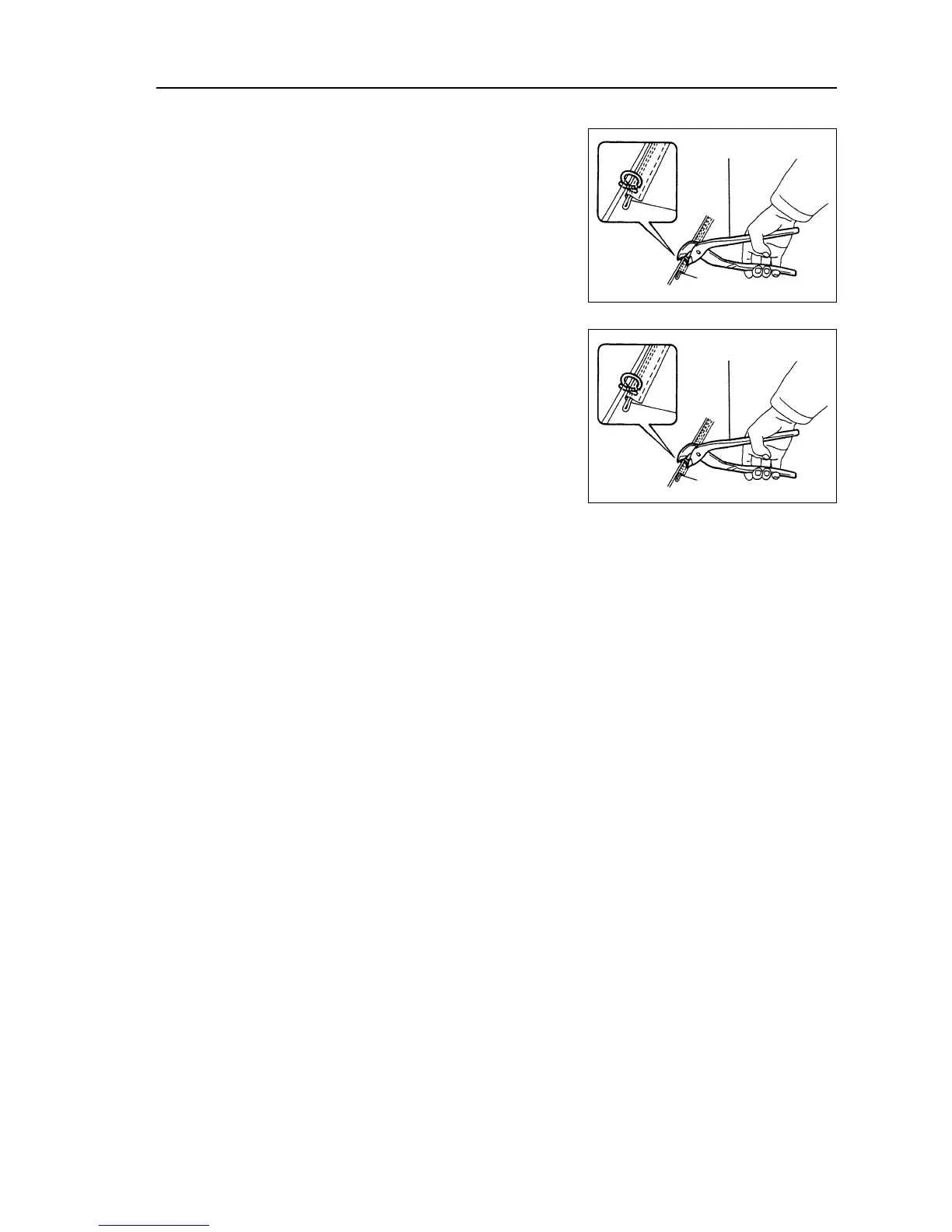

Locking loop pliers
Locking loop pliers
 351 
exterior cover of chair backrest from crinkling.
16. Assemble chair backrest assembly.
(a) Use four bolts to assemble chair backrest assembly.
Torque: 45 N
⋅⋅
⋅⋅
⋅m
(b) Over turn exterior cover of chair backrest to assemble clamp.
(c) Assemble the clamp.
17. Assemble left front safety belt locking assembly [68010040]
(a) Use the bolt to assemble left front safety belt locking assembly.
Torque: 42 N
⋅⋅
⋅⋅
⋅m
(b) Assemble fixing clasp.
18. Assemble driver chair assembly.
(a) Assemble driver chair.
Note: do not damage automobile body.
(b) Connect the joint.
(c) Assemble four bolts.
Torque: 47 N
⋅⋅
⋅⋅
⋅m
(d) Assemble right front lower trim board, right rear lower trim board and left lower trim board of driver chair.
