Wiper and cleaner--Wiper and cleaner system
Inspect
1. Inspect the conduction of right combination
switch [67000079]
(a) Inspect the conduction of every terminal of joints.
Right combination switch
Switch position terminals connect with avometer regular situations
OFF - Not conduction
ON WIG-WS conduction
Switch positions terminals connect with avometer regular situations
MIST SWL-WIG Conduction
OFF AS-SWL Conduction
INT AS-SWL/SWL-WIG Conduction
LO SWL-WIG Conduction
HI SWH-WIG Conduction
(c) Inspect the function of cleaner
(1) Turn right assembled switch to OFF.
(2) Connect battery positive wire with joint terminal WIG, connect negative to terminal EW.
(3) Connect voltmeter positive wire with joint terminal WS, connect negative to terminal EW.
(4) Switch on cleaner switch and inspect its going.

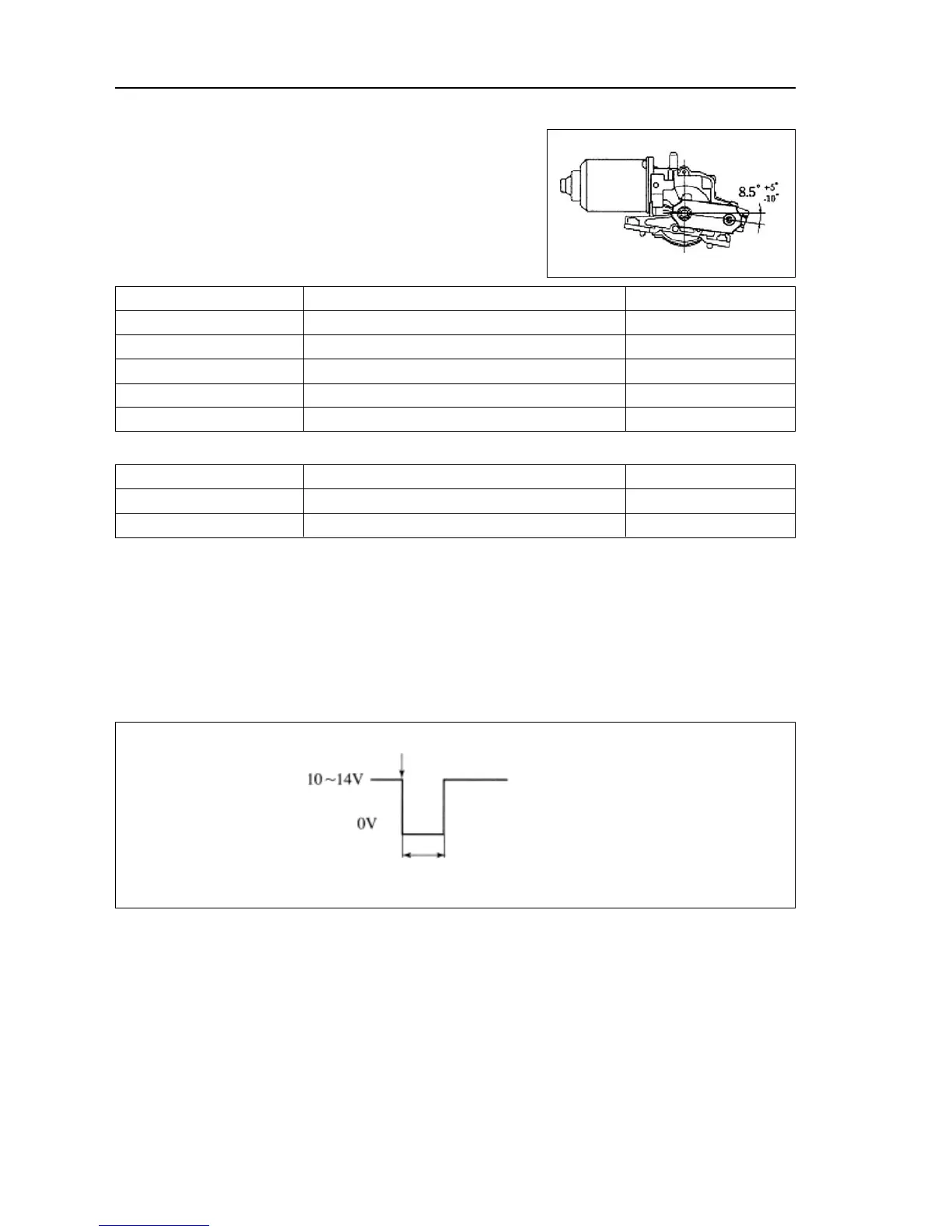

(b) Inspect intermittent function of wiper.
(1) Connect voltmeter positive wire with joint terminal SWL, connect negative to terminal EW.
(2) Connect battery positive wire with joint terminal WIG, connect negative to terminal EW.
(3) Turn right assembled switch to INT.
(4) Connect battery positive wire with terminal AS for 5 seconds.
(5) Connect battery negative with terminal AS for 5 seconds actuate intermittent relay and check the
voltage between terminal SWL and terminal EW .
Sprinkler switch
300
