Geely FC User Manual

Anti-stealing and door lock--Electric door lock control system
Inspection

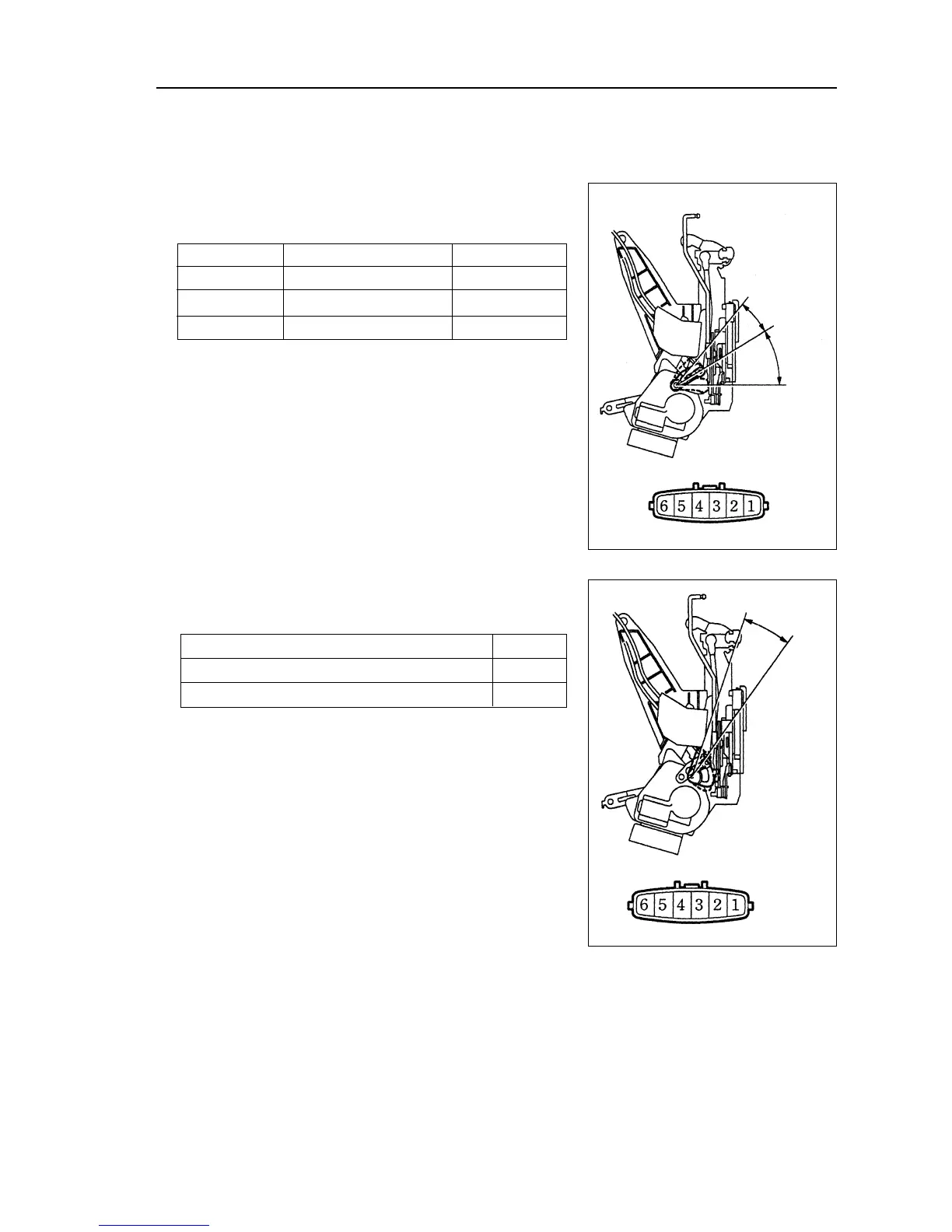

1. Check driver sear door locker assembly.
(a) Liking that shown in figure, check the conduction of every
terminal of door key switch.
If the conduction does not accord with the regulation, change
the switch.
(b) Liking that shown in figure, supply battery voltage to terminal,
and check the function of door locker.
If the function does not accord with the regulation, change
the door locker assembly.
Open
Close
Open
Close
 359 
Position of switch Terminal connected by avometer Regulated situation
LOCK 2-4 Conduction
OFF - Not conduction
UNLOCK 1-2-3 Conduction
Condition Function
Supply battery anode to No. 6 terminal, cathode to No.5 terminal Open
Supply battery anode to No. 5 terminal, cathode to No.6 terminal Close
