Brake--Rear brake assembly
Rear brake assembly

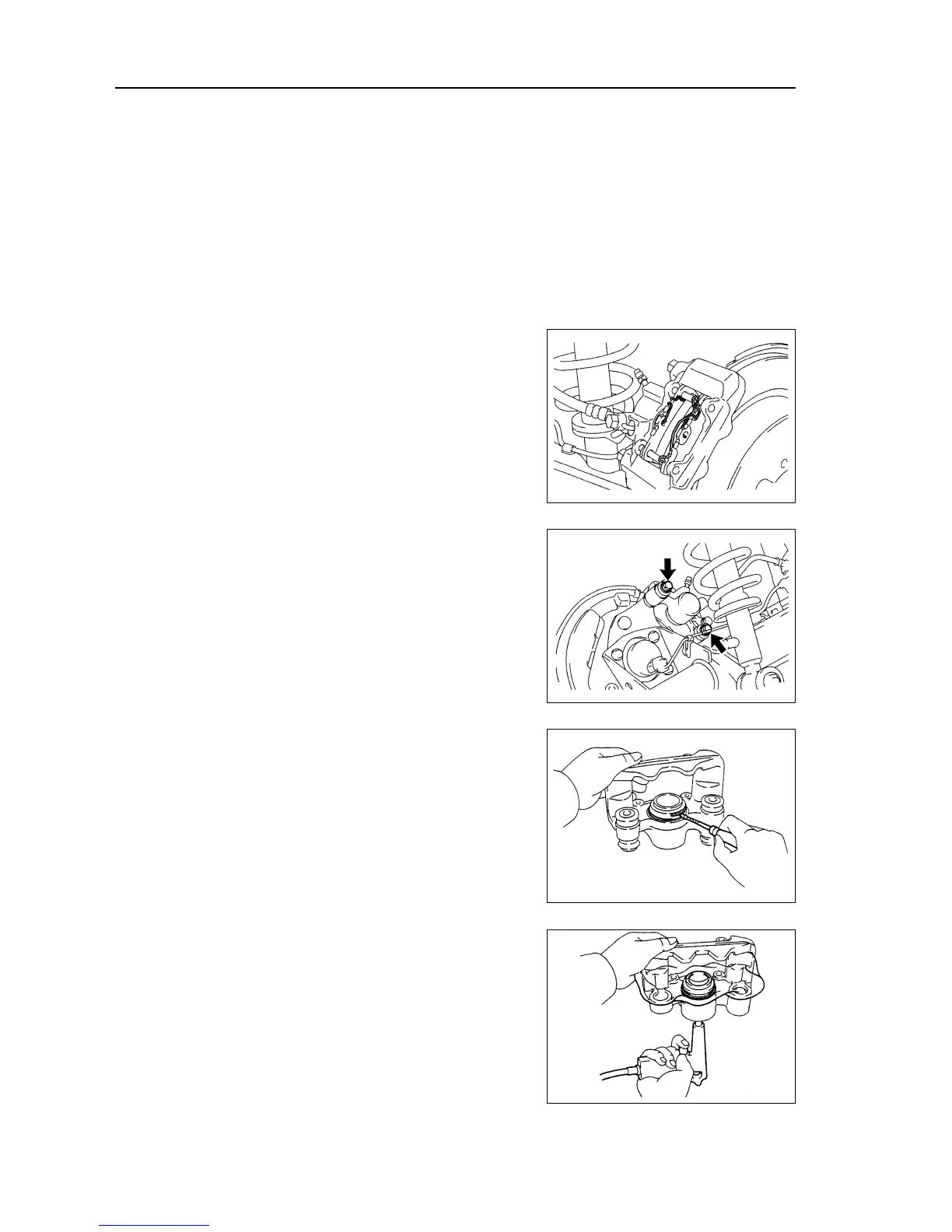

Overhaul
Hint: overhaul procedure for right side is same as the left side.
1. Disassemble rear wheels.
2. Discharge brake liquid.
Note: do not spill the brake liquid on paint surface of automobile body, if having, wash it cleanly.
3. Disassemble brake block of rear wheels.
(a) Disassemble fixing clamp of anti-vibration spring.
(b) Disassemble two guide pins of brake block and brake block
with muffle gasket.
(c) Take down muffle gasket from every brake block.
4. Disassemble left rear brake branch pump.
(a) Disassemble the joint, bolt and gasket of brake hose of brake
branch pump, then disassemble brake hose.
Hint: gasket has two types: two sheets type and one
sheet type
(b) Disassemble two bolts and brake branch pump.
5. Disassemble the bushing of brake branch pump.
Disassemble two bushings from brake branch pump.
6. Disassemble dustproof bushing of rear brake.
Disassemble three dustproof bushings.
7. Disassemble dustproof cover of branch pump.
Use screw driver to disassemble fixing loop and dustproof cover.
8. Disassemble the piston of brake branch pump.
(a) Put a cloth or similar thing between the piston and branch
pump.
(b)Use compressed air to disassemble piston from branch
pump.
Warning: when using compressed air, do not put your
fingers at the front of piston.
Note: do not let brake liquid splash on you.
9. Disassemble oil seal of piston.
