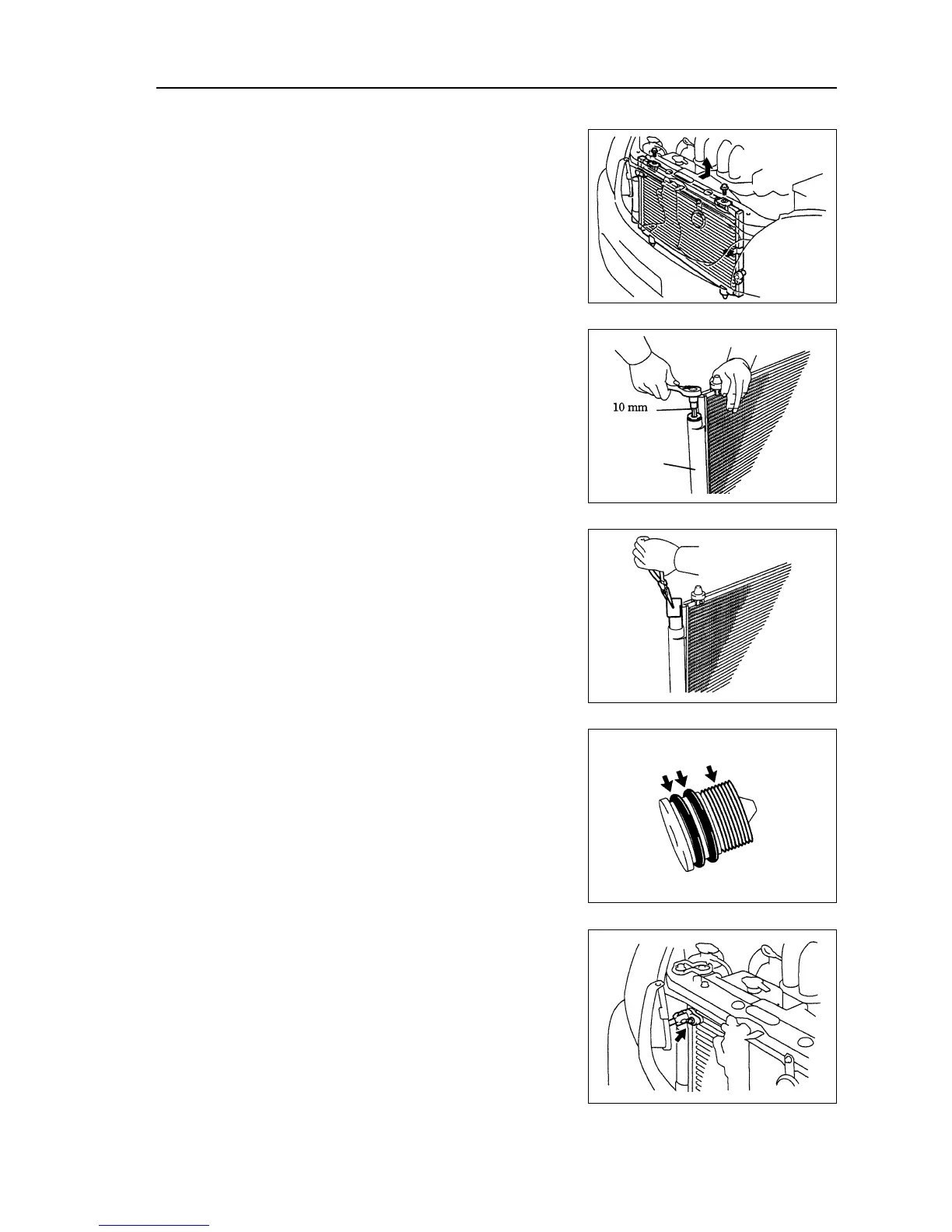

Air conditioner--Condenser Assembly
(b) Disassemble two bolts.
(c) Pull the component on the top of water tank assembly back
to disassemble the condenser assembly.
6. Disassemble the drier
(a) Use 10mm hexagon wrench to disassemble the cover and
filter core from regulator.
(b) Disassemble two O-shape rings from the cover.
(c) Use the acutilingual pliers to disassemble the drier.
7. Assemble the drier.
(a) Use the acutilingual pliers to assemble the drier.
(b) Put the O-shape ring in the cover.
(c) Spread freezing lubricant at the connecting part between
the O-shape ring and the cover.
Refrigerant oil: 100PG
(d)Use the 10mm hexagon wrench key to assemble the cover
to condenser assembly.
Torque: 12.3 N
⋅⋅
⋅⋅
⋅m
8. Assemble condenser assembly.
9. Assemble Refrigerant NO.1 high pressure hose.
(a) Disassemble the cover from the tie –in of the pipe.
(b) Daub enough Refrigerant oil to lubricate at the connecting
part between the O-shape ring and the cover.
Refrigerant oil: 100PG
(c) Use the bolt to connect Refrigerant high pressure hose
with condenser assembly.
Torque: 5.1 N
⋅⋅
⋅⋅
⋅
m
Inner hexagon
socket wrench
Adjuster
237
