Air conditioner--Condenser Assembly
10. Assemble the Refrigerant liquid pipe A.
(a) Disassemble the cover from the pipeline joint.
(b) Assemble the O-shape ring to the Refrigerant liquid pipe
A.
(c) Spread enough Refrigerant oil to lubricate at the conencting
part between the O-shape ring and the cover.
Refrigerant oil: 100PG

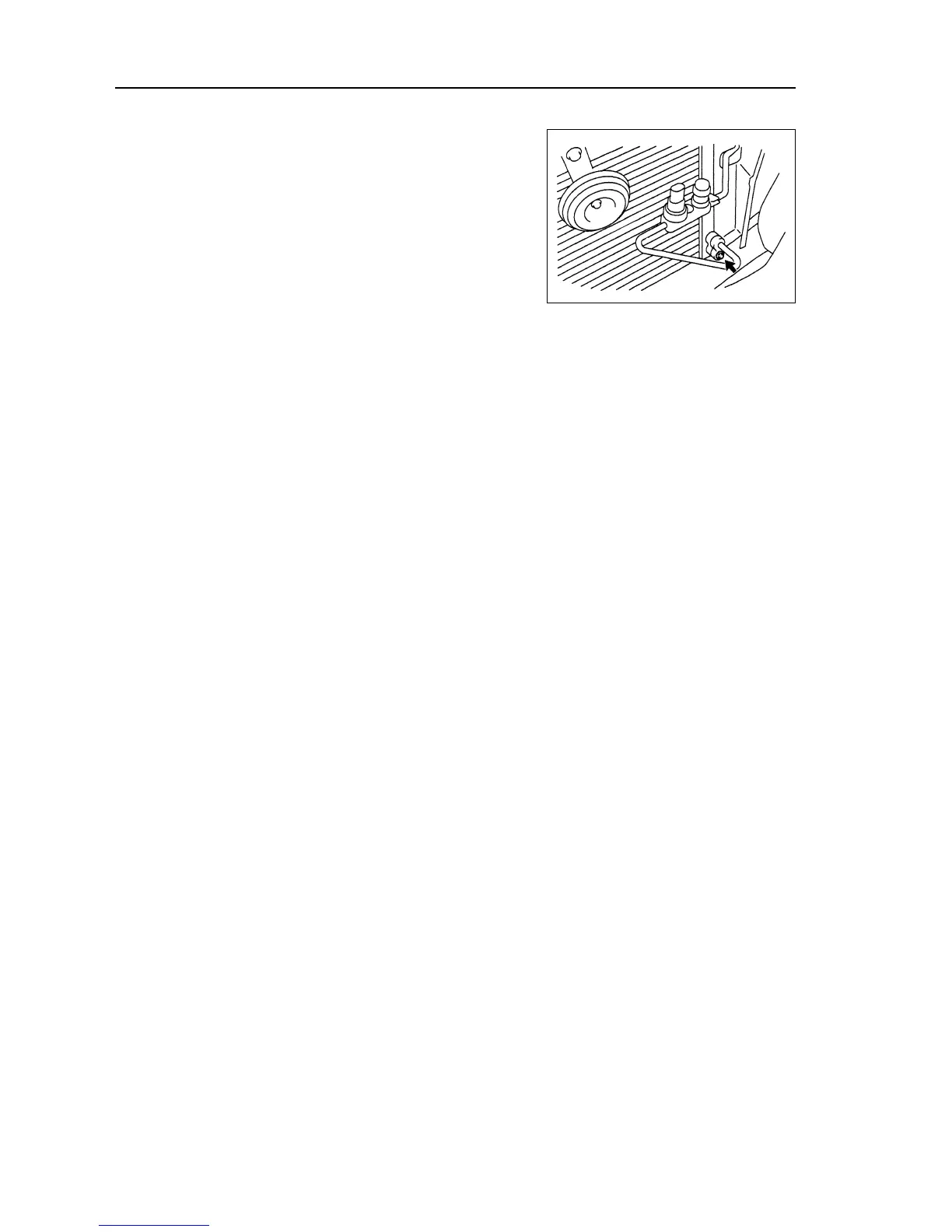

(d) Use the bolt to connect the Refrigerant liquid pipe A with
condenser assembly.
Torque: 5.4 N
⋅⋅
⋅⋅
⋅m
11. Fill with Refrigerant.
Regulated quantity: 660
±±
±±
±
10g
12. Warm the engine.
13. Check whether the Refrigerant leaks.
