17. Install front left brake wheel pump bracket as-
sembly (see Page 141).
18. Install fixed nuts of front left drive shaft (see
Page 123).

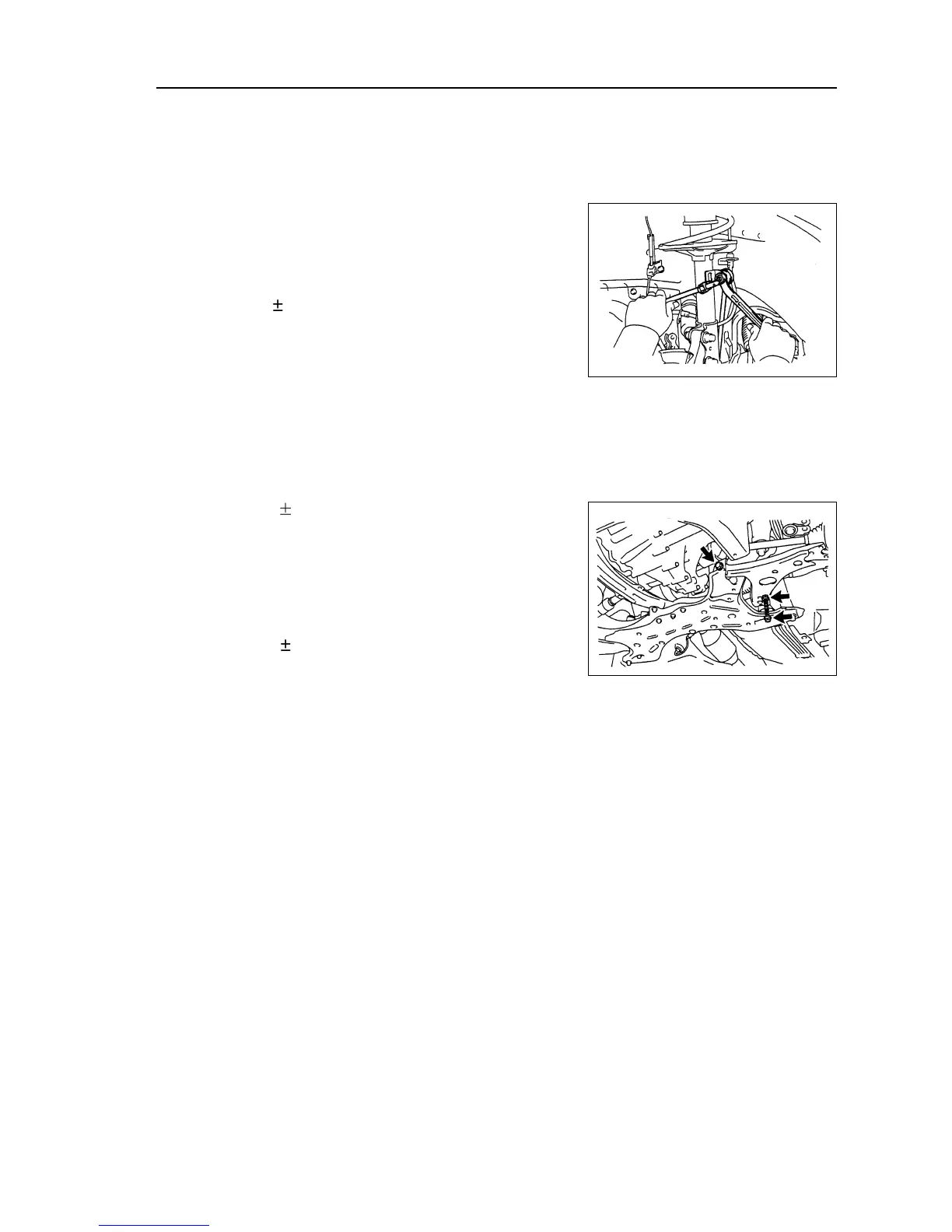

19. Install front left stabilizer link assembly
[64000097].
Install stabilizer link with nuts.
Torque: 74 5 N.m
Hint: if ball joint rotates with nuts, please fix bolts with
hex wrench (6mm).
20. Install front right stabilizer link assembly
[64000097].
Hint: the installation procedures of right side are the
same as that of left side.
21. Align suspension.
(a) Install front wheels and lay down vehicle from the lift.
Torque: 103 10 N.m
(b)Align suspension components by means of lifting ve-
hicle several times.
22. Completely lock up lower left control arm assem-
bly [64000091].
Completely tighten 2 bolts and nuts.
Torque: 137 10 N.m
23. Check and adjust front wheel alignment
(see Page 87).
24. Check ABS sensor signal.
Front suspension - Lower left control arm assembly
95
