Windshield/bodywork glass/wing mirror--Front windscreen

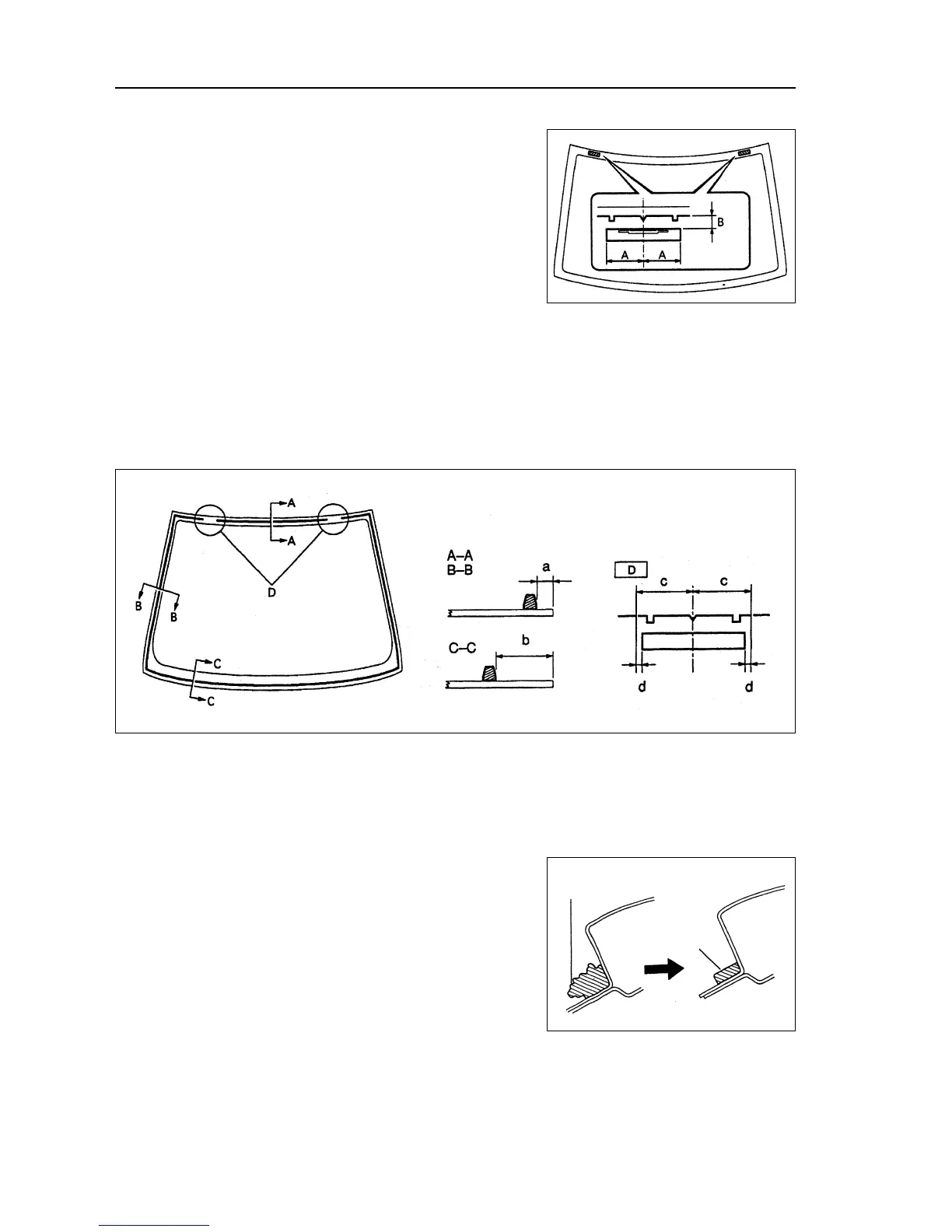

Assemble two orientation block on the windscreen as the
drawing.
A: 40mm
B: 8mm
16. Assemble front windscreen in board sealed tape
[68000063]
Stick sealed tape with double faced adhesive tape on both
sides.
a: 7mm
b: 22.5mm
c: 45mm
d: 5mm
17. Assemble front windscreen assembly [68000061]
(a) Put front windscreen at the right position.
(b) Inspect the contacting part of front windscreen brim whether
it is flat
(c) Mark signal between bodywork and glass.
(d) Disassemble front windscreen .
(e) Use blade to remove granulation area.
Note: leave agglutinant as much as possible on the
bodywork.
(f) Use duster cloth with cleaner to clean the agglutinant on
the incision.
Clues on: When all the agglutinant has been removed
completely, clean the bodywork.
(g) Use brush to daub M priming paint on the o contacting part
of bodywork.
Notes:
z Dry M priming paint for three minutes.
z Do not daub M priming paint on the agglutinant.
z Opened M priming paint can not use for the next
