Engine cover/automobile door--Rear automobile door
11. Spread lubricating grease on automobile body.
Spread MP lubricating grease on sliding and turning parts of
door locker.
12. Disassemble left rear door exterior handle pedestal.
(a) Use planetary socket wrench to disassemble the screw
and left rear door exterior handle cover.
(b) Disassemble exterior handle.
(c) Use planetary socket wrench to disassemble the screw
and left rear door exterior handle pedestal.
13. Assemble left rear door locker organization assem-
bly [68000191]
(a) Assemble left rear door locker organization driver and two
screws.
(b) Use planetary socket wrench to assemble left rear door
locker organization assembly and three screws.
Torque: 5.0 N
⋅⋅
⋅⋅
⋅m
(c) Assemble the bolt.
(d) Connect the joint.
14. Assemble left rear door glass lift assembly
[67000124]
Torque: 5.5 N
⋅⋅
⋅⋅
⋅m

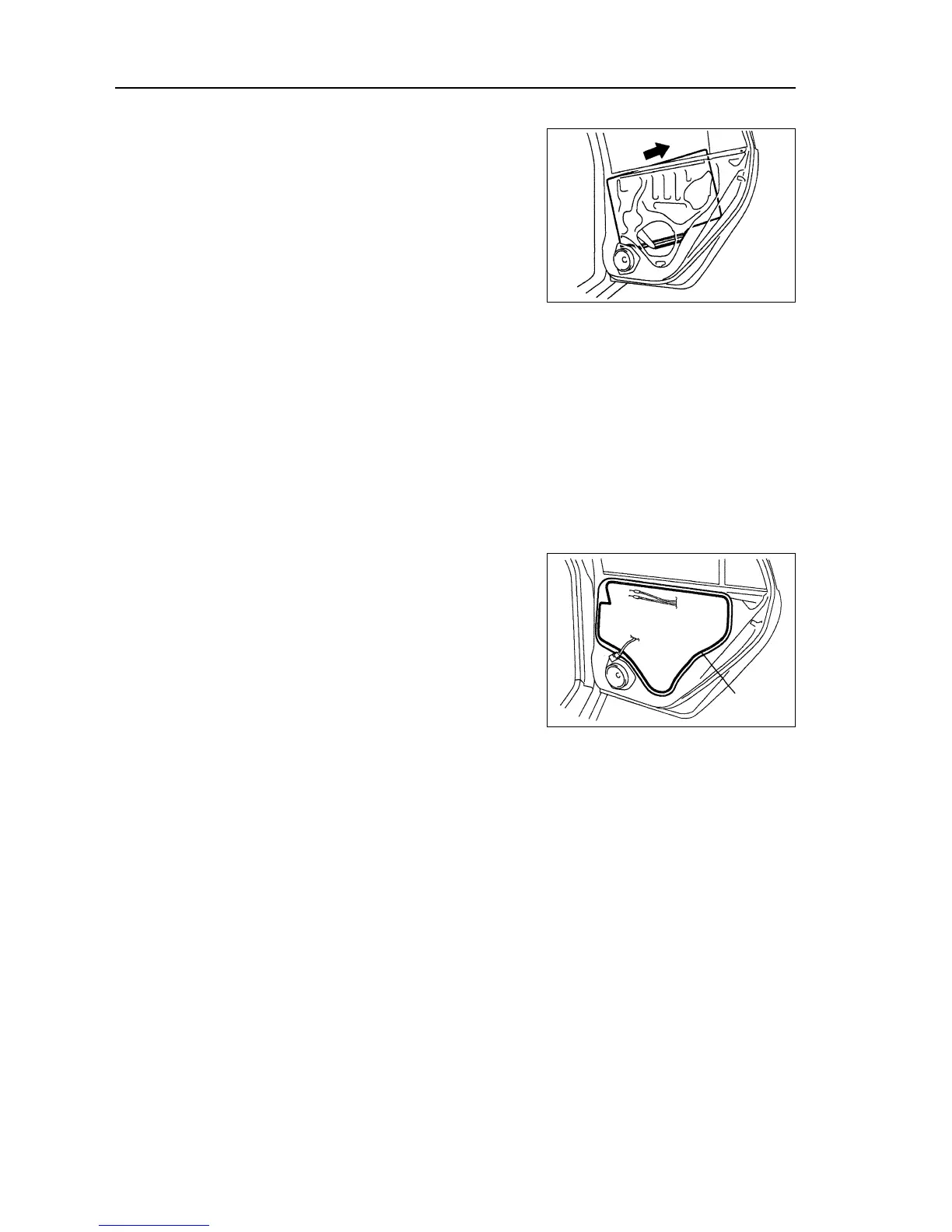

15. Assemble left rear door repairing hole cover.
(a) Assemble repairing hole cover on door steel board.
Hint:
zz
zz
z When assembling repairing hole cover, pull out
connecting rod and joint from repairing hole cover.
zz
zz
z After assembling repairing hole cover, connecting
rod and joint could not be bent or concaved.
zz
zz
z After assembling repairing hole cover, it is neces-
sary to confirm the affixing situation of adhesive
tape.
374
Adhesive
tape
