10. Connect the in-out oil pipe assembly of power
steering gear [64000131]
(a) Assemble fixed clamp of in-out oil pipe with bolt.
Torque: 7.8 Nxm

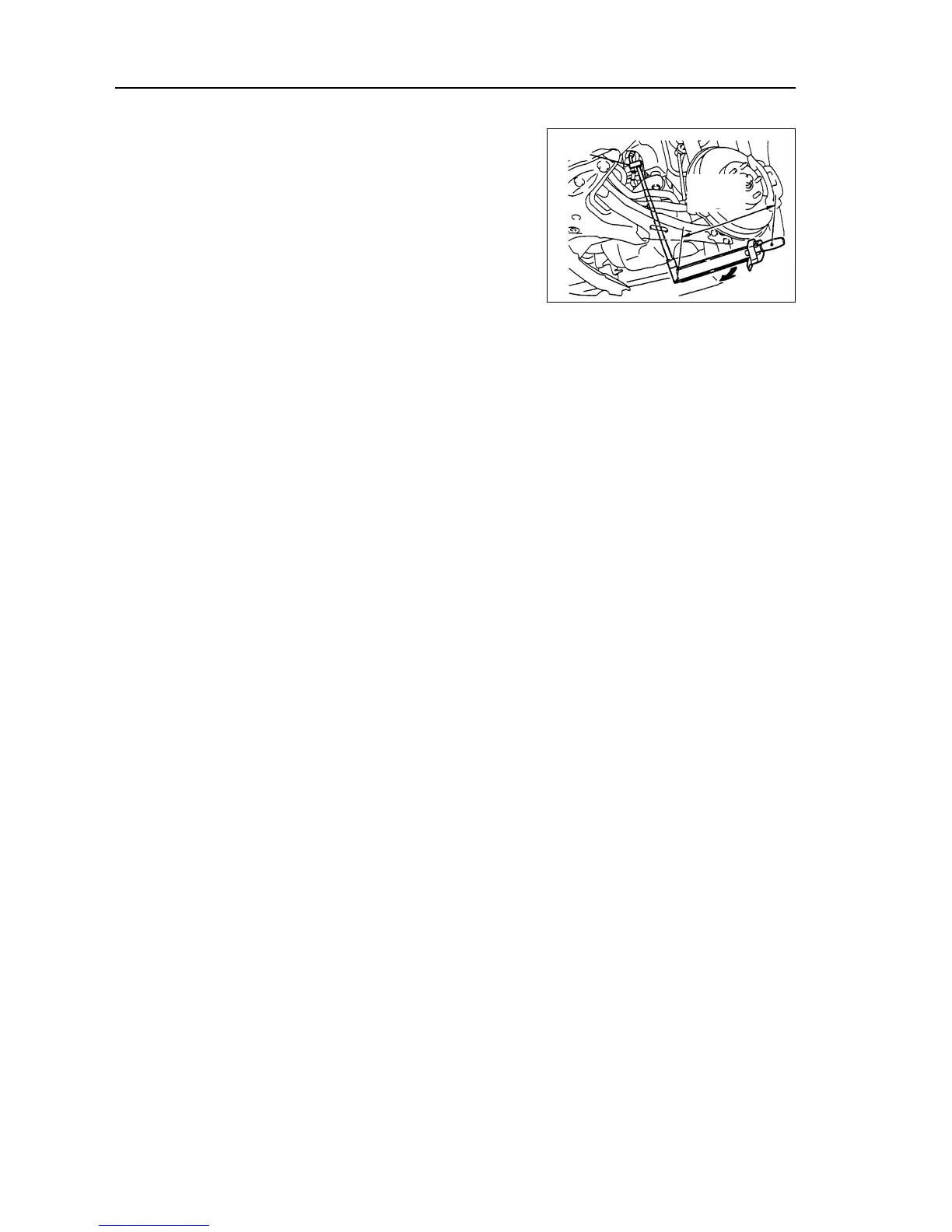

(b) Connect in-out oil pipe with special tool.
Torque: 41 Nzxm
Hint:
z Use torque wrench whose lever length is 345 mm.
z Special tool should be parallel with torque wrench,
only this could make practical torque value.
11. Connect the N0. 1 oil pipe of oil storage tank to power steering oil pump assembly.
Connect oil pipe with fixed clamp.
12. Assemble driving belt.
13. Assemble front wheel.
Torque: 103 ± 10 N
xx
xx
xm
14. Add power steering oil.
15. Exhaust the air in power steering system.
16. Check whether there is any oil leakage.
17. Assemble right bottom defender board of engine [68000004].
Power steering--Power steering oil pump assembly
Special
tool
¸Ü¸Ü
¸Ü¸Ü
¸Ü
¸Ë¸Ë
¸Ë¸Ë
¸Ë
³¤³¤
³¤³¤
³¤
¶È¶È
¶È¶È
¶È
204
