Exterior/inner trim board--Inner trim board of top

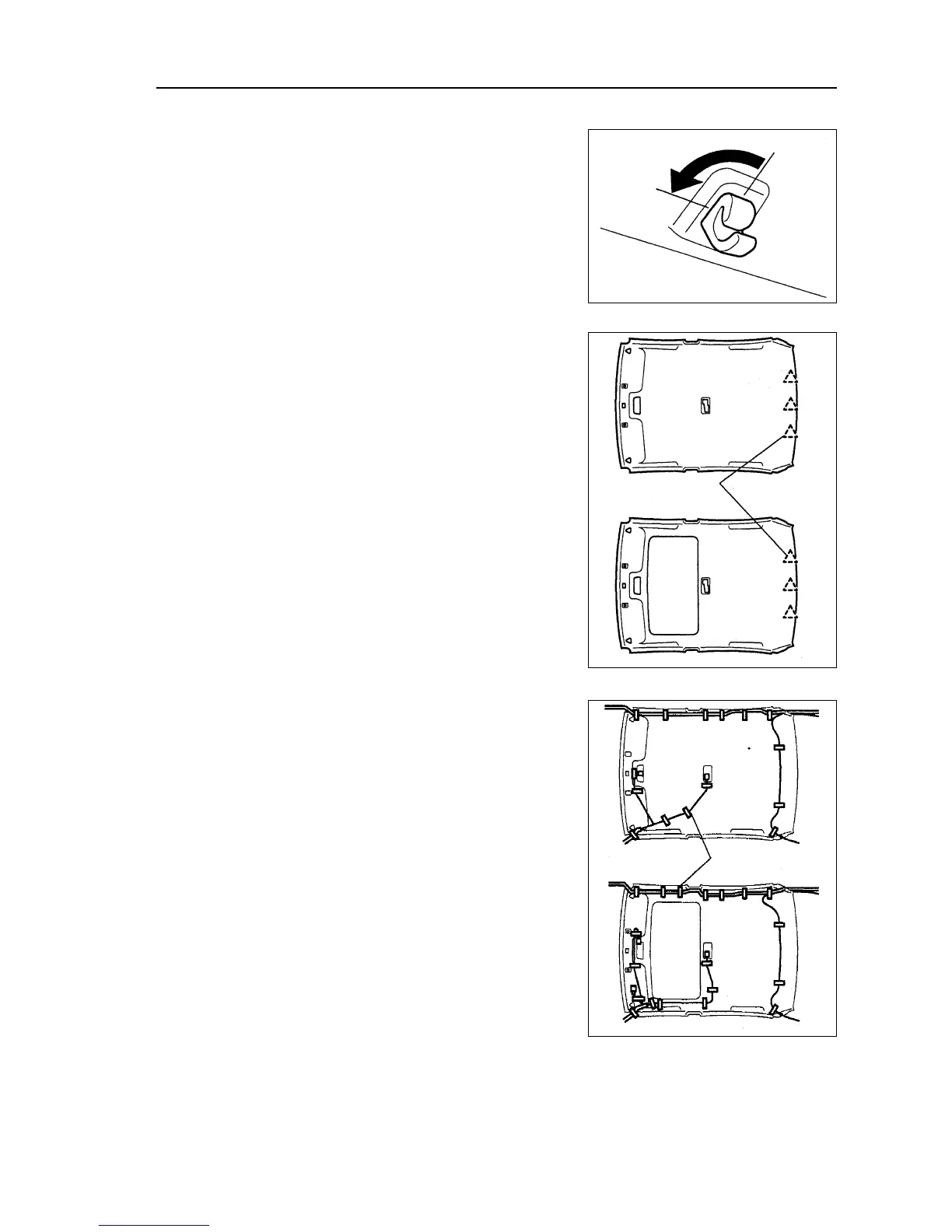

29. Disassemble the pothook of sun shade [68010086]
Turn the pothook of sun shade to left for 90°, then disassemble
it.
30. Disassemble fixing pedestal of rear window sun
blind.
Use screw driver to turn the fixing pedestal of sun blind for 90°,
then disassemble it.
31. Disassemble trim tape of top sunroof [67010010]
32. Disassemble inner trim board of top [68010035]
(a) Use screw driver to disassemble inner trim board of top.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Disassemble three fixing clamps and inner trim board of
top.
(c) Take out inner trim board of top from rear door.
33. Assemble inner trim board of top [68010035]
(a) Liking that shown in figure, align the mark, then fix the wir-
ing harness of top with adhesive tape.
(b) Use three fixing clamps to assemble inner trim board of top.
34. Assemble the pothook of sun shade [68010086]
Turn the pothook of sun shade to make fixing claw proturde,
then assemble sun shade.
35. Assemble rear row chair left backrest assembly
[68010078]
36. Assemble rear row chair right backrest assembly
[68010079]
37. Assemble rear row chair backrest assembly
[68010076]
Fixing
clamp
Adhesive
tape
