Exterior/inner trim board--Inner trim board of top
Fixing
clamp

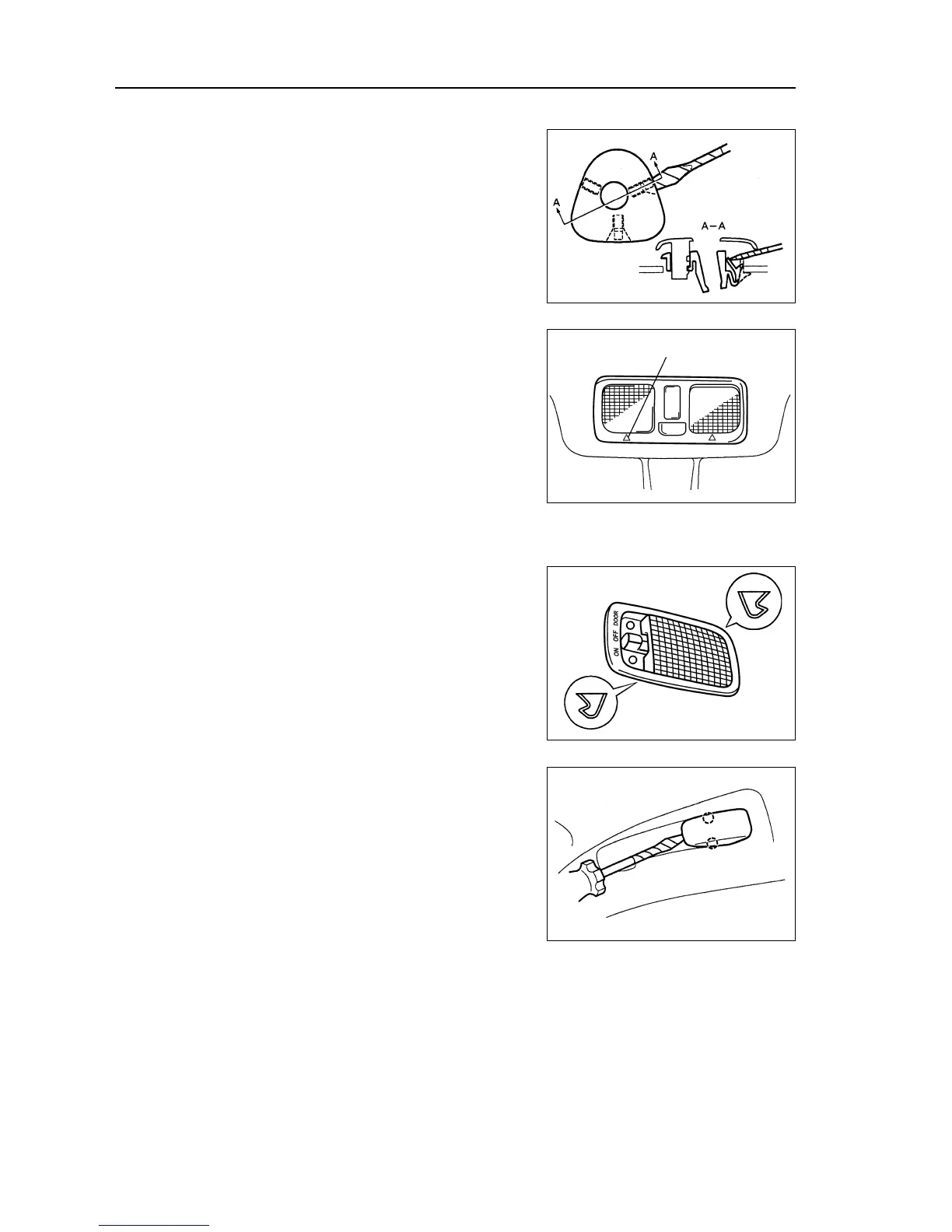

24. Disassemble right sun shade assembly [68010085]
(a) Liking that shown in figure, use screw driver to unclench the
trim cover of fixing pedestal, then pull down the trim cover.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Liking that shown in figure, use screw driver to release fixing
claw and disassemble sun shade.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(c) Use same method to disassemble the trim board at the
other side.
25. Disassemble left sun shade assembly [68010084]
26. Disassemble indoor front top light assembly
[67010005]
Use screw driver to disassemble front top light cover, and dis-
assemble fixing screw with cross wrench, then disconnect the
joint.
Hint: before using screw driver, its needled top should be
twisted by adhesive tape.
27. Disassemble indoor rear top light assembly
[67010006]
(a) Disassemble two screws and indoor light, then disconnect
the joint.
28. Disassemble passenger hand rail [68010088]
(a) Use screw driver to disassemble trim cover of handrail.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Disassemble two screws and passenger handrail.
