Electric sunroof (optional)--Sunroof

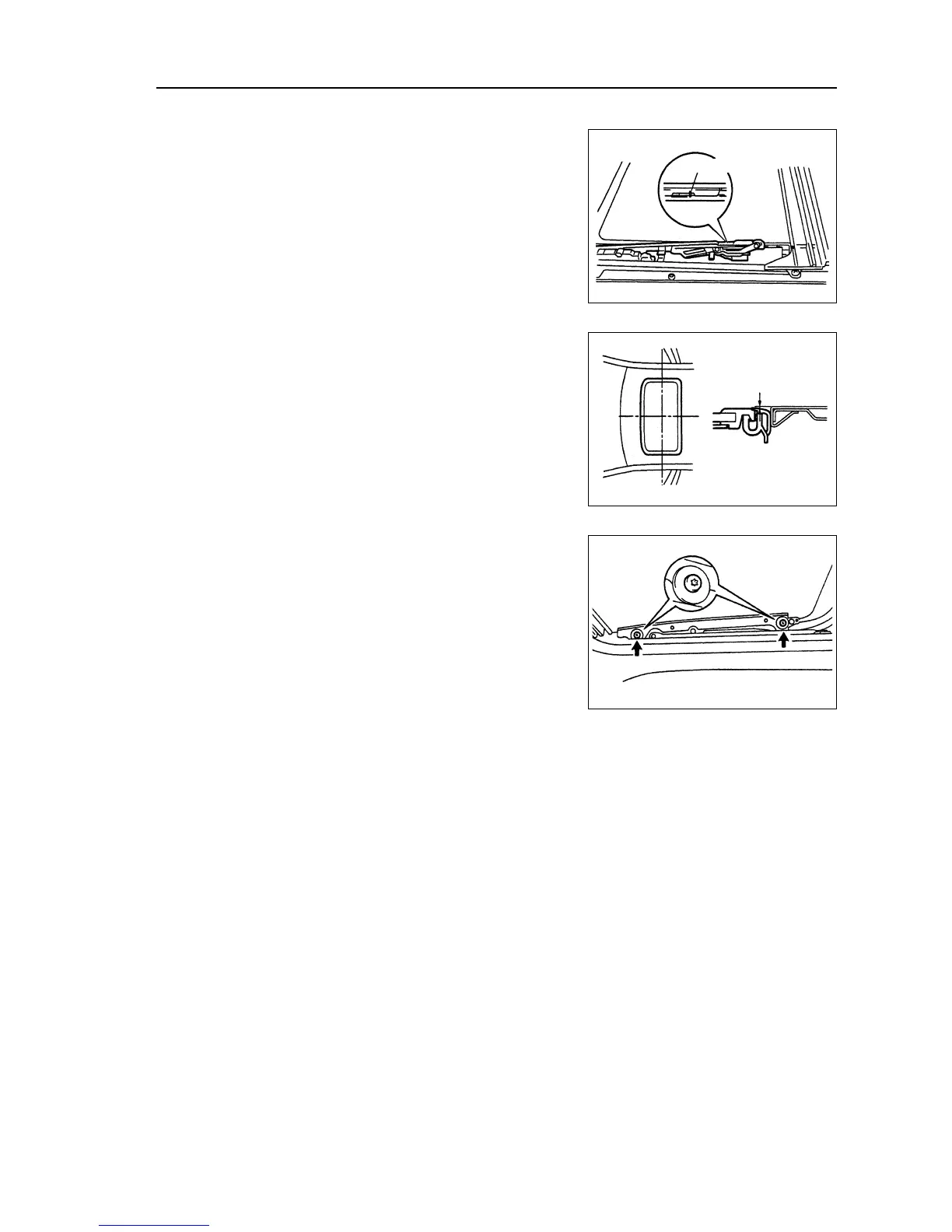

7. Use screw driver (twisted by adhesive tape) to align
the sunroof driving pull cable with right mark.
8. Assemble sunroof shell body assembly.
(a) Bolt.
Torque: 5.5 N
⋅⋅
⋅⋅
⋅m
(b) Screw cap.
Torque: 5.0 N
⋅⋅
⋅⋅
⋅m
9. Assemble the glass of sunroof.
(a) Check the phase difference between sunroof waterproof ad-
hesive tape and top gasket.
Front end and rear end: 0±1.5mm
Rear corner: 0±1.5mm
0-1.5mm
(b) Adjustment
Use T25 planetary wrench to loosen the screw to adjust
the sunroof on correct position, then lock the screw.
10. Inspection for water leakage.
(a) After the adjustment, check whether the sunroof leaks water.
(b) If sunroof leaks water, adjust it again.
Assembly mark
363
