Parking brake--Parking rear brake pull cable assembly
rear wheel to fixing clamp.
15. Assemble No.2 clapboard.
16. Assemble front part exhaust pipe assembly.
17. Assemble front bottom board bracket.

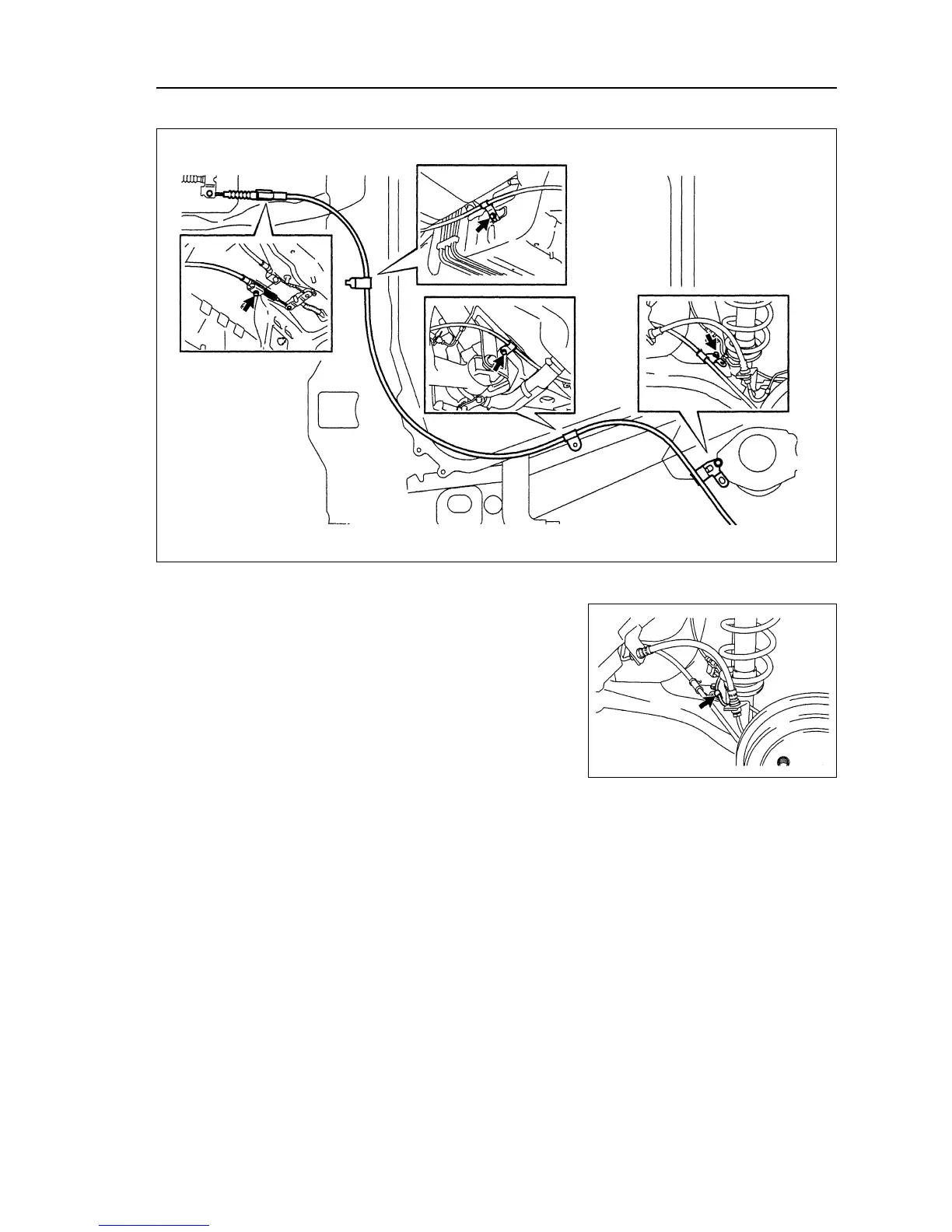

18. Connect parking left rear brake pull cable assembly.
Assemble parking left rear brake pull cable assembly to brake
back board with bolt.
Torque: 7.8 N
⋅⋅
⋅⋅
⋅m
19. Spread high temperature lubricating grease.
20. Assemble support lever of parking brake shoe (LH).
21. Assemble parking brake exterior shoe assembly
(LH).
22. Assemble parking brake inner shoe assembly (LH).
159
