Engine cover/automobile door--Front automobile door
17. Assemble left front door glass lift assembly [67000122]
(a) Use six bolts to assemble left front door glass lift.
Torque: 8.0 N
⋅⋅
⋅⋅
⋅m
(b) Assemble electric window lift and door glass.
(c) Connect electric window switch to wiring harness and turn ignition switch to ON.
(d) Operate UP and DOWN several times by hand repeatedly.
(e) Check whether the AUTO UP→AUTO DOWN of automatic operation is normal.
Hint:
z When it is set up again, anti-clamping protection function does not work.
z After implementing AUTO UP operation to close window completely, if automobile window
could not be operated downwards, it is necessary to set up the lift again.
(f) Check the function of electric window.
371
18. Check the function of electric window

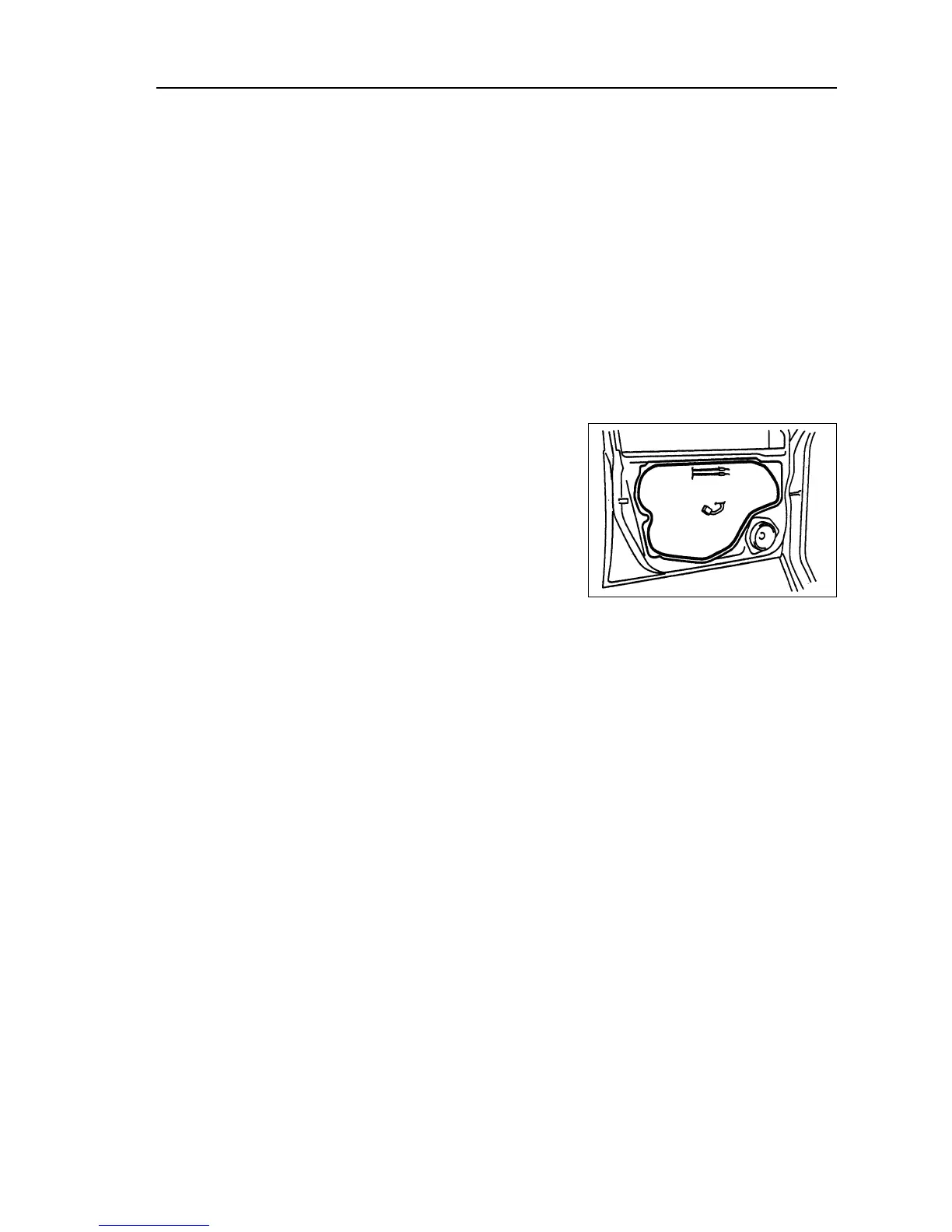

19. Assemble repairing hole cover of left front door
Hint:
z When assembling repairing hole cover, pull out con-
necting rod and joint from repairing hole cover.
z After assembling repairing hole cover, connecting rod
and joint could not be bent or concaved.
z After assembling repairing hole cover, it is necessary
to confirm the affixing situation of adhesive tape.
