Front suspension - Front shock absorber and helical spring

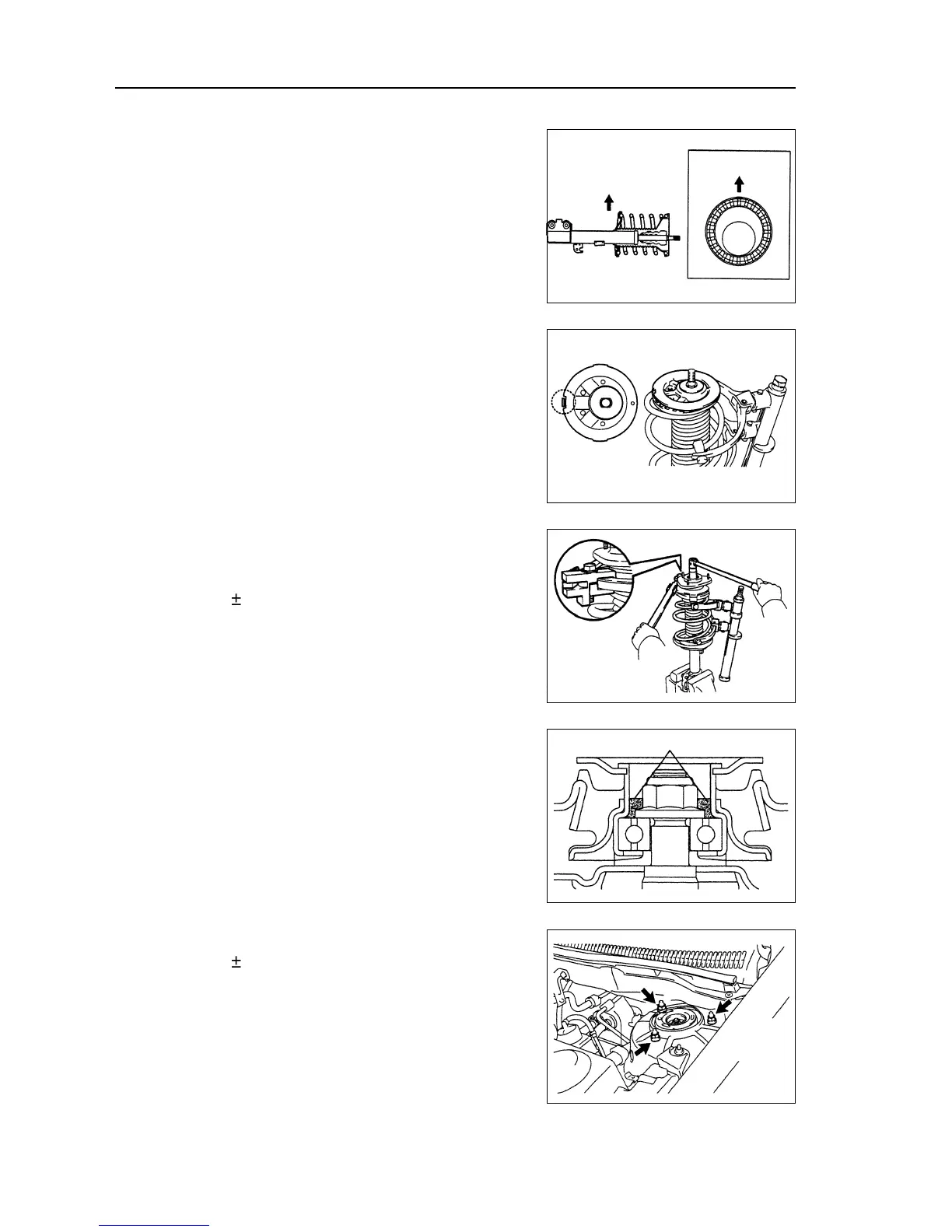

(e) As shown in the diagram, install upper insulator.
(f) Install spring seat to absorber with mark toward outside of
vehicle.
(g) Install new dustproof seal ring and upper absorber bearing.
(h)Fix upper shock absorber bearing with special tool, and
install new nuts.
Torque: 47 5 N.m
(i) Remove special tool.
(j) Install dust cover.
(k) Coat upper absorber bearing with grease.
Note: do not coat grease on rubber surface of upper
shock absorber bearing.
8. Install front shock absorber and helical spring.
(a) Install 3 nuts above shock absorber.
Torque: 39 3 N.m
(b) Install 2 fixed bolts of shock absorber.
Outside
Grease
92
Outside
To Next Page
