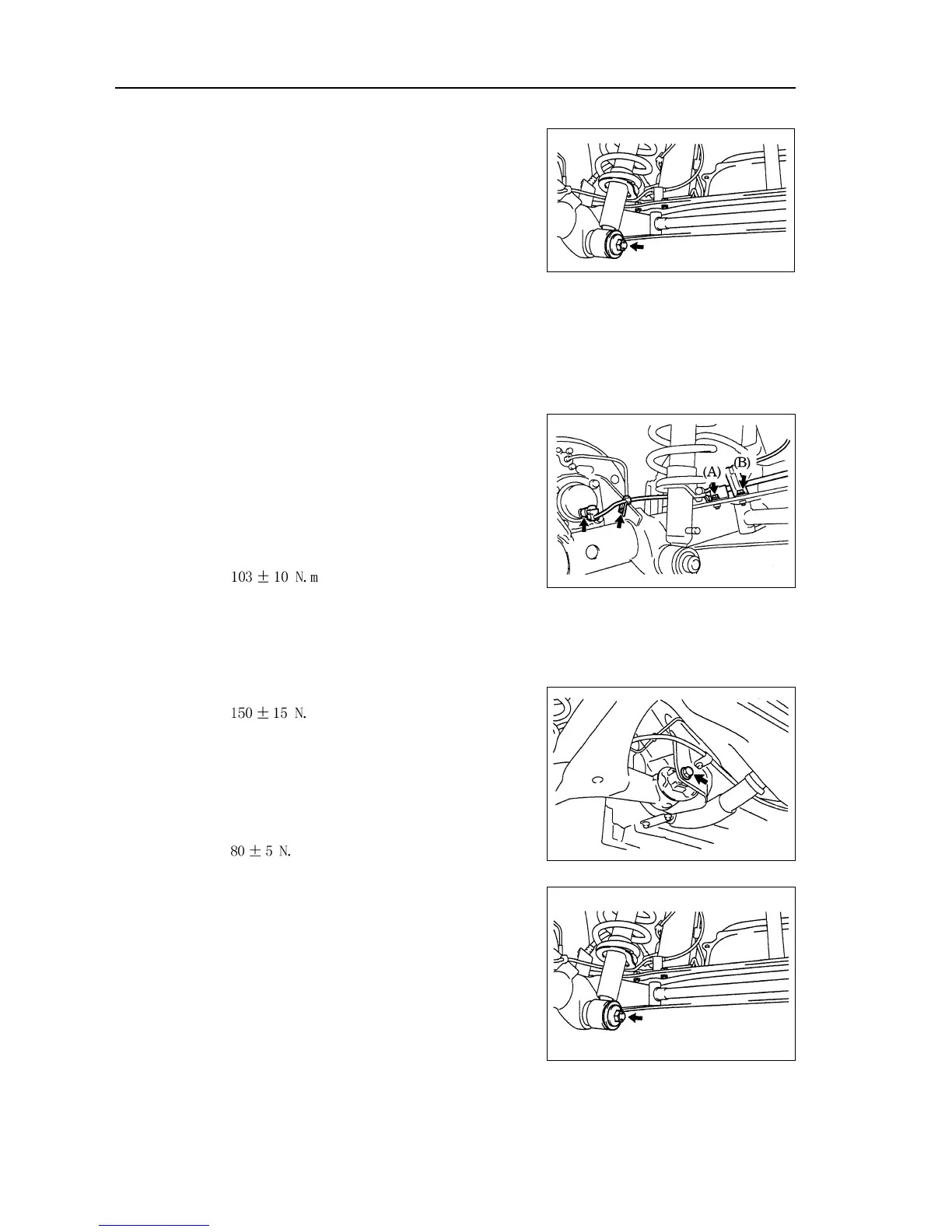

14. Temporarily lock up rear left strut assembly.
(a) Install rear left strut and gasket, and temporarily lock
up nuts.
(b) Perform to another side in the same way.
15. Install rear stabilizer bar assembly (see Page 105).
16. Install rear left/right brake assembly [64000137/64000139] (see Page 144).
17. Install rear wheel speed sensor wire harness.
Install wire harness and parking brake cable with 2 bolts and retaining clips.
Torque:(A) 5.4 N.m
(B) 5.0 N.m
Rear suspension - Rear shaft assembly
108
18. Install rear left brake caliper assembly
(see Page 144).
19. Install rear right brake caliper assembly
(see Page 144).
20. Align suspension.
(a) Lay down vehicle from the lift after installing rear wheels.
Torque:
(b)Align suspension components by means of lifting ve-
hicle with a jack several times.
21. Completely lock up rear shaft assembly
[64000120].
(a) Completely tighten bolts and pull on open pin.
Torque: m
(b) Perform to another side in the same way.
22. Completely lock up rear left strut assembly.
(a) Completely tighten bolts.
Torque: m
(b) Perform to another side in the same way.
23. Check rear wheel alignment (see Page 101).
24. Check ABS sensor signal.
