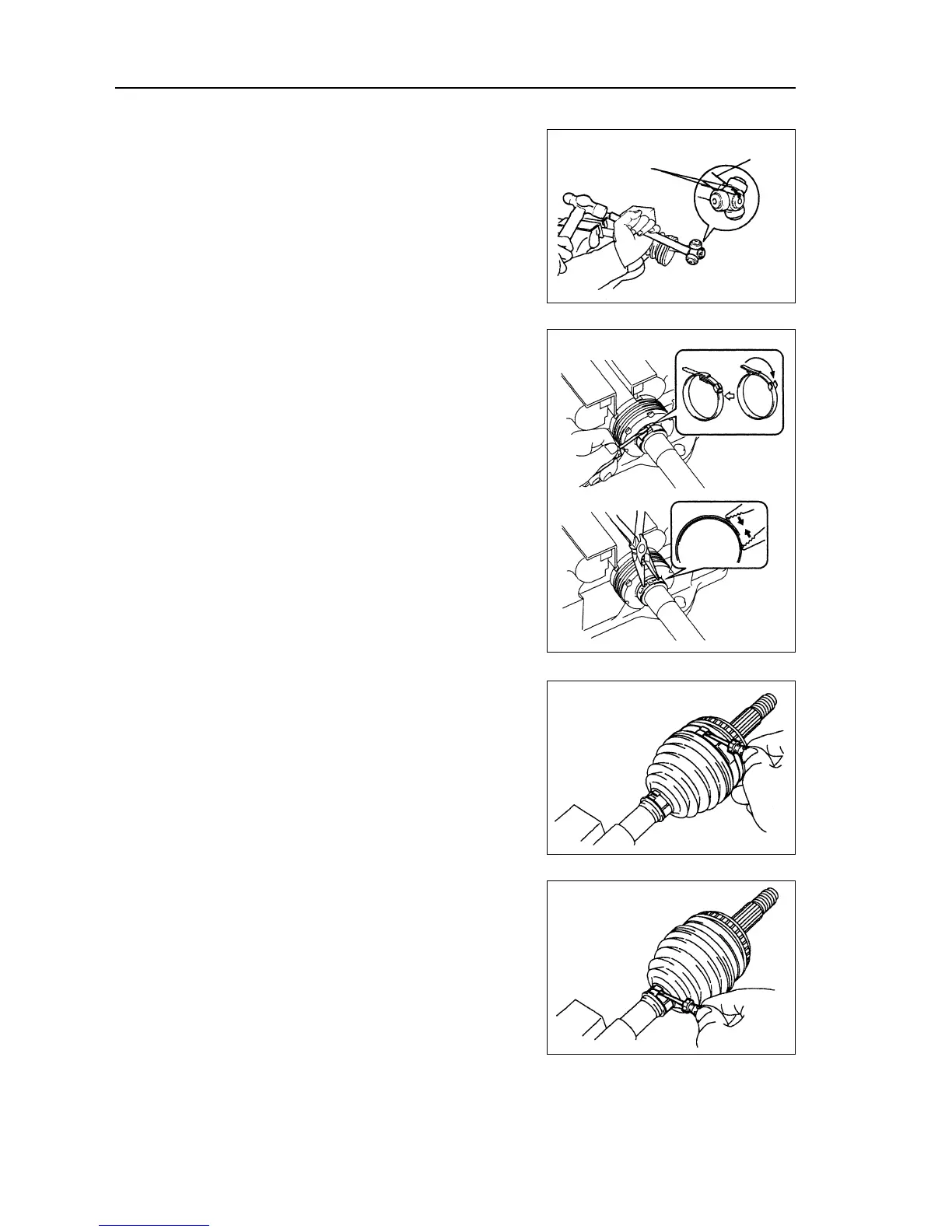

(e) Make mark on transmission shaft and triangle joint.
Note: do not use the punch to make mark.
(f) Use copper stick and hammer to disassemble triangle joint.
Note: do not knock the stator position.
(g) Disassemble No.2 fixing clamp of inner joint dustproof cover
and fixing clamp of inner joint dustproof cover.
15. Disassemble the absorber of drive shaft (right trans-
mission shaft).
(a) Single-contact fixing clamp type:
Liking that shown in figure, use screw driver to disassemble
fixing clamp.
(b) Mesh clamp type.
Liking that shown in figure, use pliers to disassemble fixing
clamp.
(c) Disassemble dynamic absorber of drive shaft.
16. Disassemble No.2 fixing clamp of exterior joint
dustproof cover of left front drive shaft.
(a) Use screw driver to disassemble No.2 fixing clamp of exte-
rior joint dustproof cover.
17. Disassemble fixing clamp of exterior joint dustproof
cover of left front drive shaft.
(a) Use screw driver to disassemble fixing clamp of exterior
joint dustproof cover.
18. Disassemble fixing clamp of exterior joint dustproof
cover (B type and C type).
(a) Disassemble dustproof cover of exterior joint.
(b) Remove old lubricating grease of exterior joint.
Drive shaft--Front drive shaft
Align the mark
Copper stick
Single-contact fixing
clamp type
Mesh clamp type
116
