Drive shaft--Left front shaft hub assembly

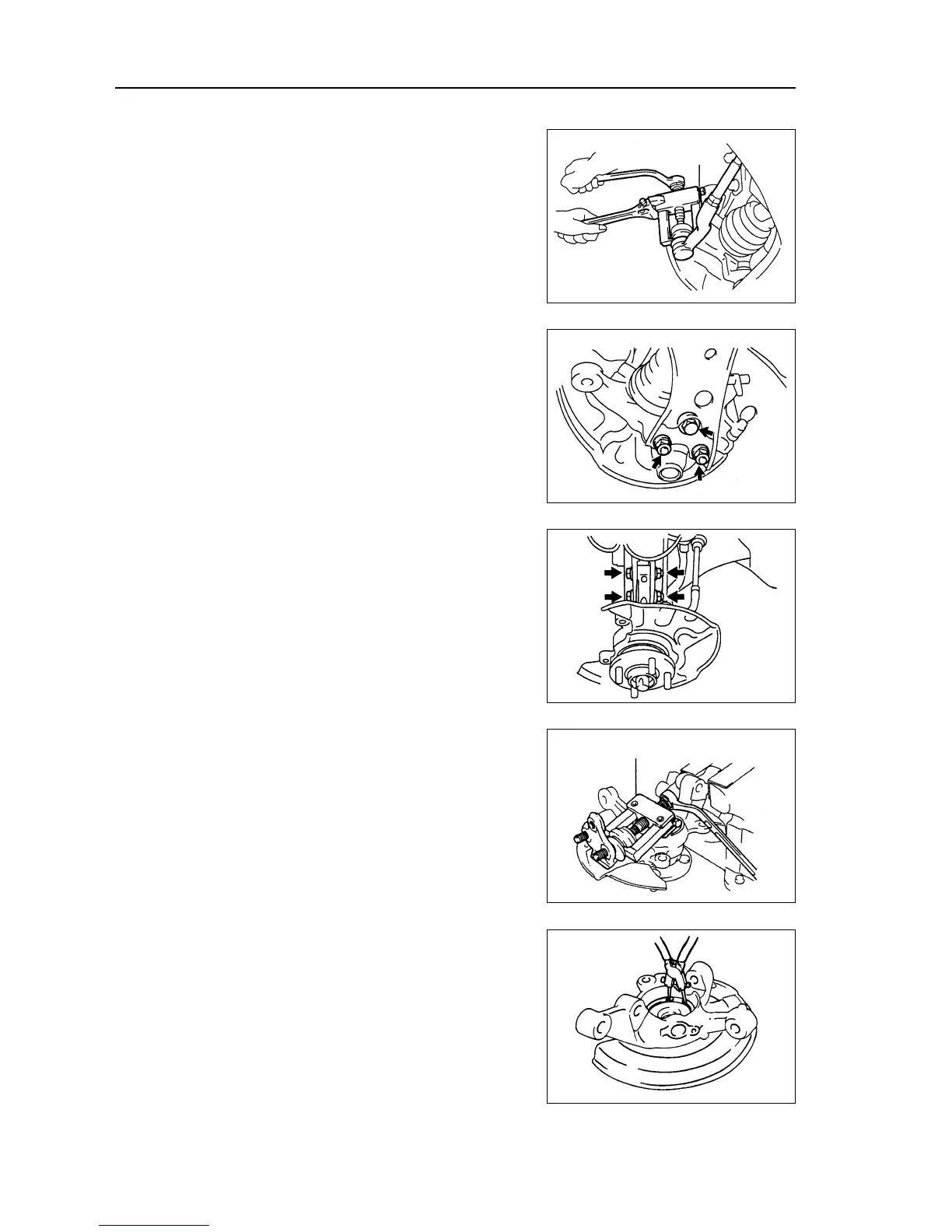

5. Disassemble left front brake assembly [64000134]
6. Disassemble left transversal lever assembly
(a) Disassemble cotter pin and nuts.
(b) Use special tool to disassemble transversal lever assembly
from steering knuckle.
7. Disassemble left lower control arm assembly
[64000091]
Disassemble the bolt and two nuts, then disassemble lower
control arm from lower ball joint.
8. Disassemble left front shaft hub assembly.
(a) Use plastic hammer to disassemble transmission shaft from
shaft hub.
Note: do not damage the dustproof cover and the sta-
tor of ABS speed sensor.
(b) Disassemble two bolts and nuts, then disassemble steer-
ing knuckle with shaft hub.
9. Disassemble left front lower control arm ball head
assembly [64000093]
(a) Disassemble cotter pin and nut.
(b) Use special tool to disassemble ball head.
10. Disassemble the clasp in left front shaft hub hole.
Use clasp pliers to disassemble the clasp.
124
Special
tool
Special tool
