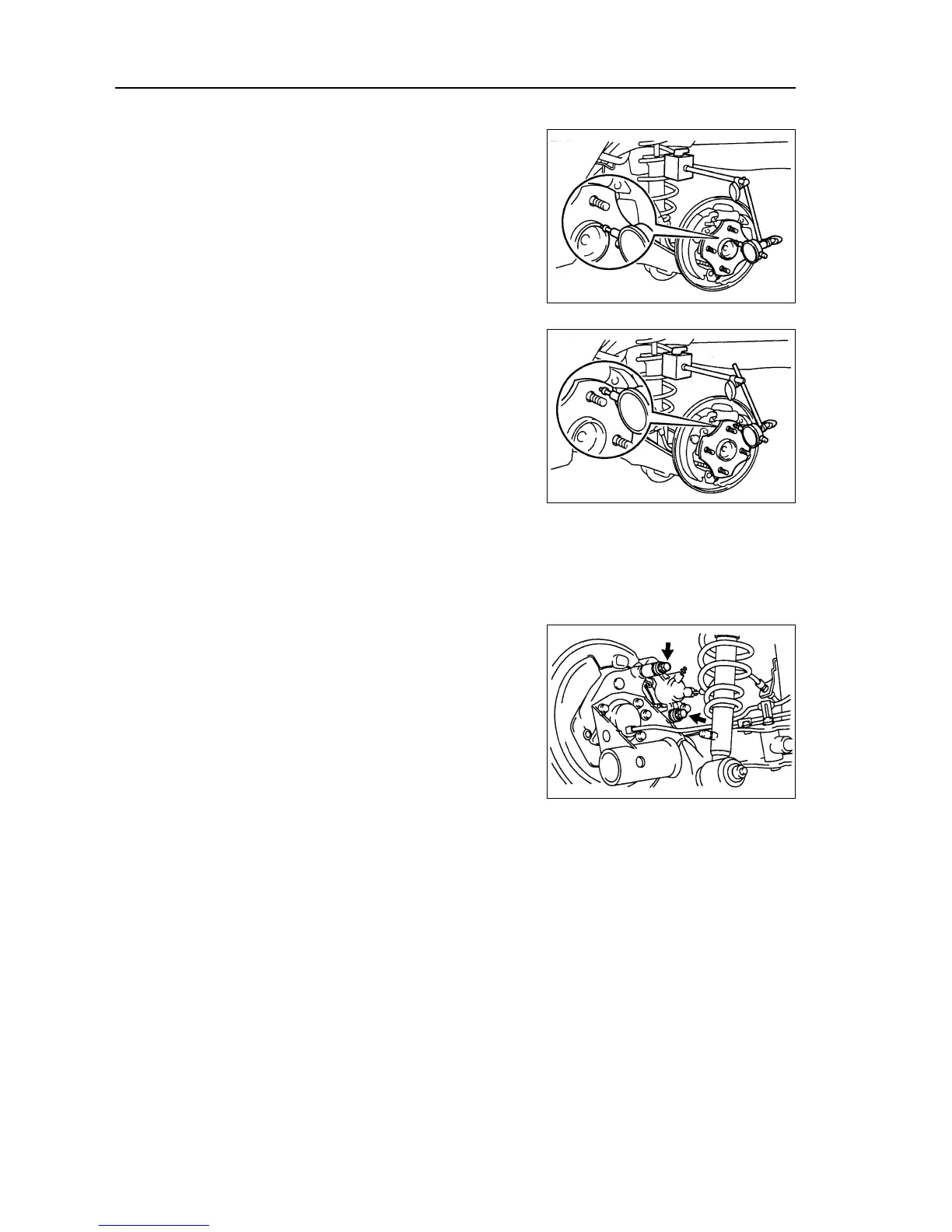

10. Check the axial clearance of bearing.
Put the centimeter besides shaft hub center, and check the
axial clearance of bearing.
Maximal value: 0.05mm
If axial clearance exceeds the maximal value, change the bearing
assembly.
11. Check the terminal face run-out of shaft hub.
Use centimeter to check the terminal run-out of exterior sur-
face of shaft hub.
Maximal value: 0.07m
If terminal run-out exceeds the maximal value, change the shaft
hub.
12. Assemble left rear brake assembly [64000137]
13. Assemble left rear brake branch pump assembly
Torque: 46 ± 5 N
⋅⋅
⋅⋅
⋅m
14. Assemble rear wheels
Torque: 103 ± 10 N
⋅⋅
⋅⋅
⋅m
15. Check the ABS speed sensor signal.
16. Inspection on road.
Drive shaft--Left rear shaft hub and bearing assembly
130
