Brake--Rear brake assembly

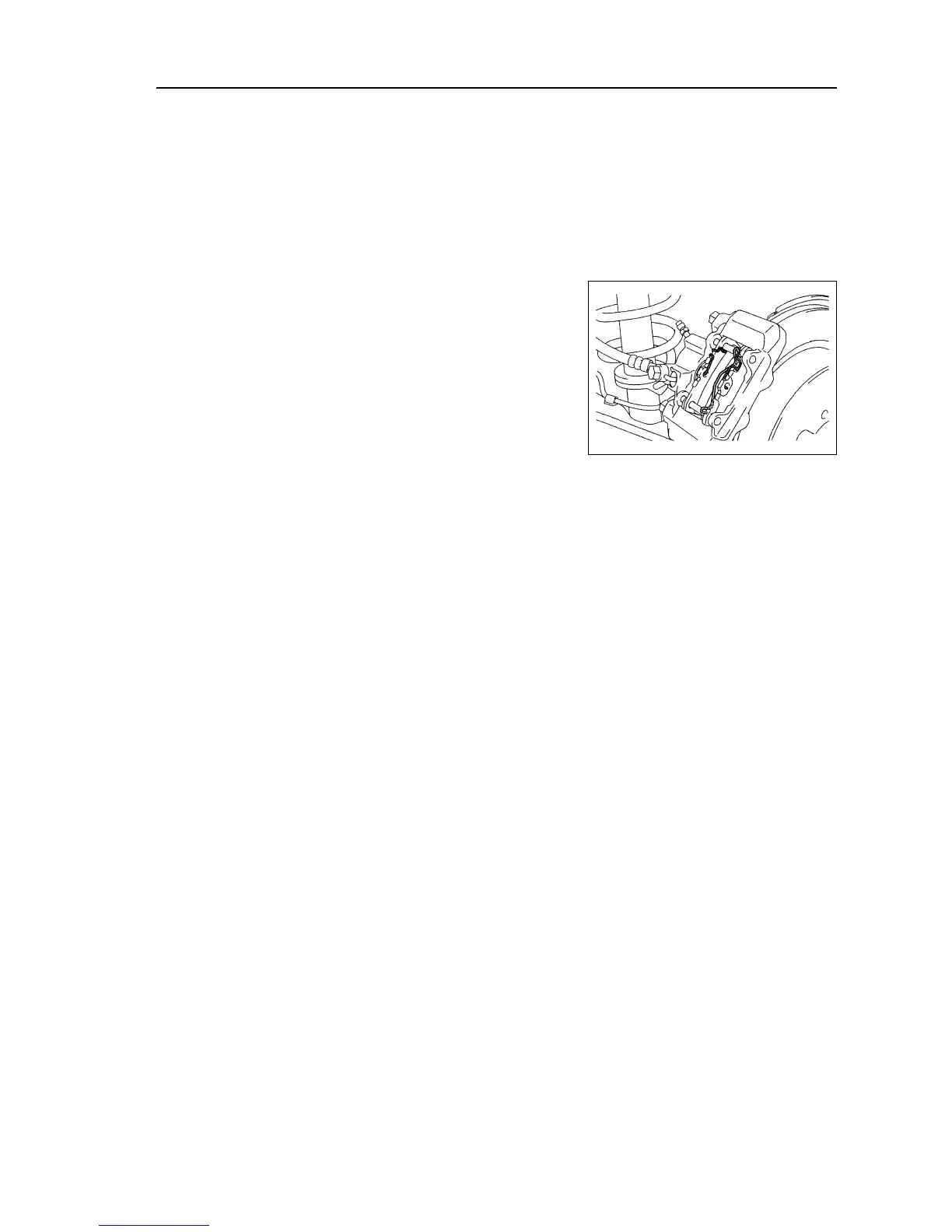

24. Assemble rear brake block.
Note: when changing brake block, the inside of muffle gasket should be changed together.
(a)When assembling muffle gasket on every brake block, it is necessary to spread brake lubricating
grease on the inside of muffle gasket.
(b) When assembling inner brake block, abrasion indicator should face upside.
Note: do not attach any oil dirt or lubricating grease on the surface of brake block and brake
disk.
(c) Assemble two guide pins of brake block.
(d) Assemble fixing clamp of anti-abrasion spring.
25. Add brake liquid in storage tank.
26. Discharge the air in brake main pump (referring to page 135).
27. Discharge the air in brake pipeline (referring to page 135).
28. Check the liquid level in storage tank.
29. Check whether brake liquid leaks.
30. Assemble rear wheels.
Torque: 103
±±
±±
± 10N
⋅⋅
⋅⋅
⋅m
147
