Brake--Hydraulic pressure control unit

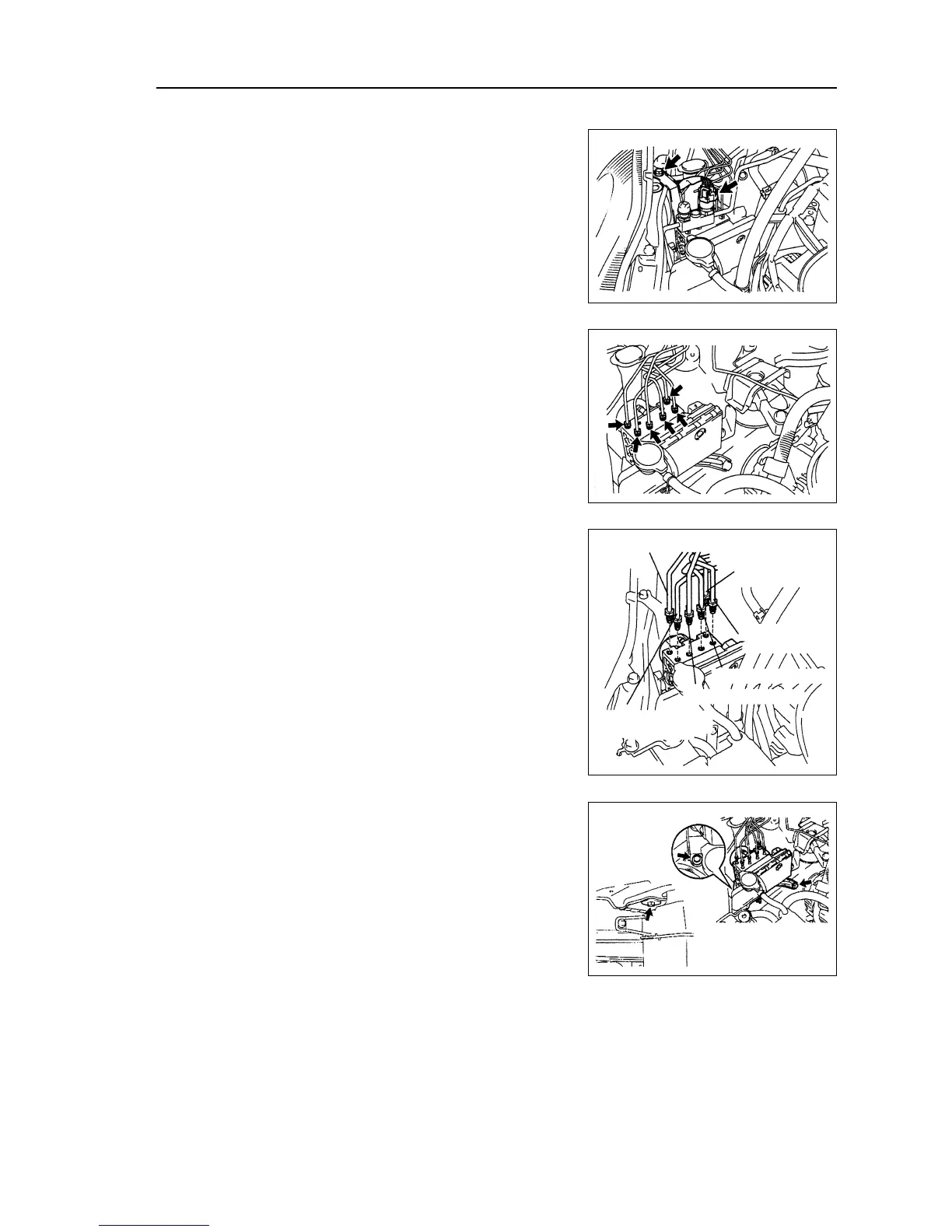

3. Disassemble gasket of right wheel wing.
4. Disassemble hydraulic control unit and bracket.
(a) Disassemble the joint and bolt.
(b) Turn the locking bolt of joint of hydraulic control unit, and
disassemble the joint.
(c) Use special tool to disassemble the brake oil pipe on hy-
draulic control unit.
(d) Use label to mark the name of every oil pipe, and tie it on
oil pipe.
(e) Disassemble screw caps, two bolts and hydraulic control
unit and bracket.
5. Disassemble hydraulic control unit assembly.
Disassemble three bolts and hydraulic control unit from the bracket.
6. Assemble hydraulic control unit assembly.
Assemble three bolts and hydraulic control unit on the bracket with three bolts.
Torque: 4.7 N
⋅⋅
⋅⋅
⋅m
149
Connect the front
of main cylinder
Connect the back
of main cylinder
Connect 2#
brake pipe
Connect the front left
Connect 2#
brake pipe
Connect the front right
To Next Page
