Brake--Speed sensor of rear wheels
153

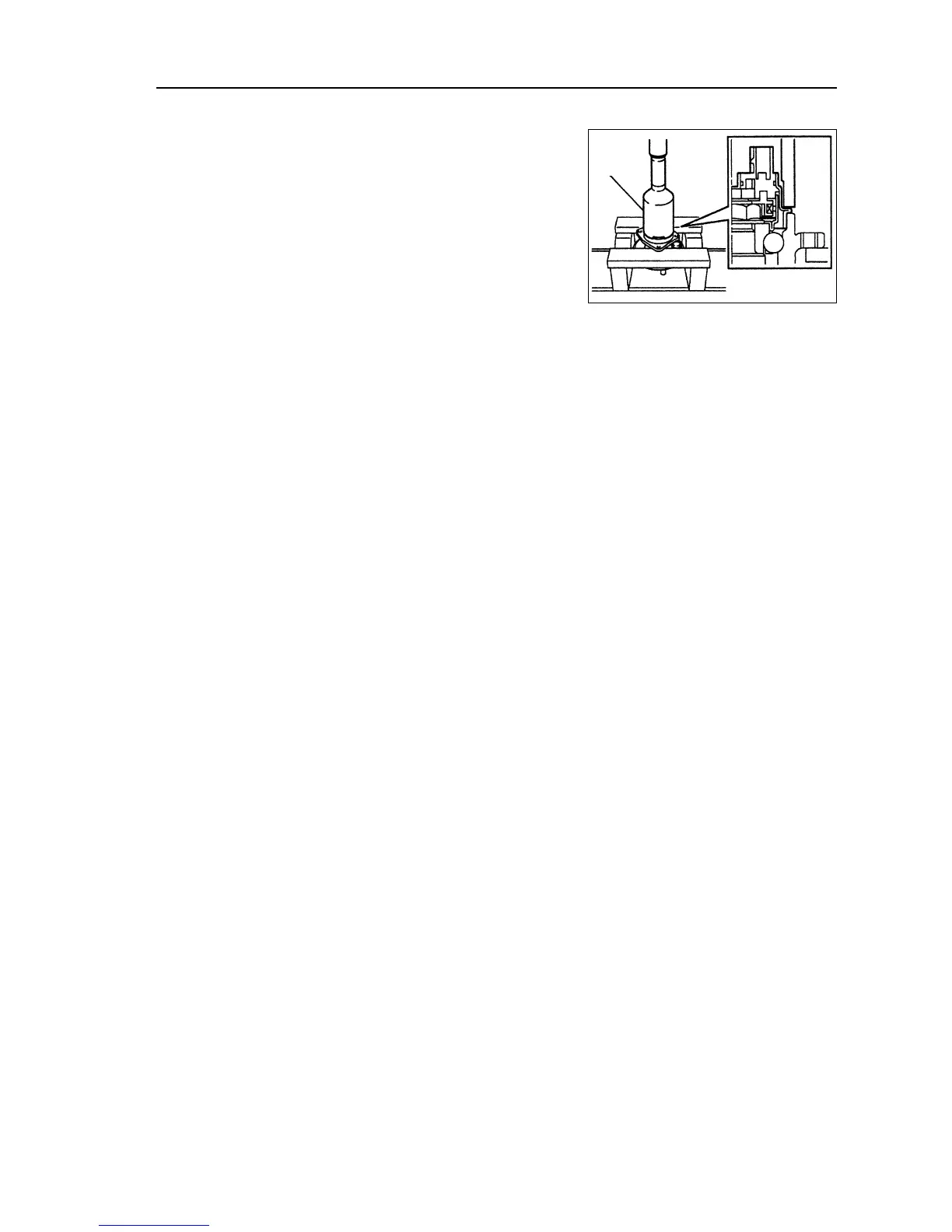

(c) Use special tool and press to assemble speed sensor of
rear wheels to rear shaft hub.
Note:
z
Do not use hammer knock directly in speed sensor
of rear wheels.
z
Insure no sundries are attached on the supervising
part of speed sensor of rear wheels
z
Press speed sensor of rear wheels straightly and
slowly.
8. Assemble left rear shaft hub and bearing assembly
(referring to page 129).
9. Assemble brake disk.
10. Assemble left rear brake branch pump.
11. Assemble wiring harness of speed sensor of rear
wheels.
12. Assemble rear wheels.
Torque: 103
±±
±±
± 10 N
⋅⋅
⋅⋅
⋅m
13. Check and adjust wheel alignment.
14. Check the signal of ABS speed sensor.
Special
tool
