Power steering--Power steering gear assembly

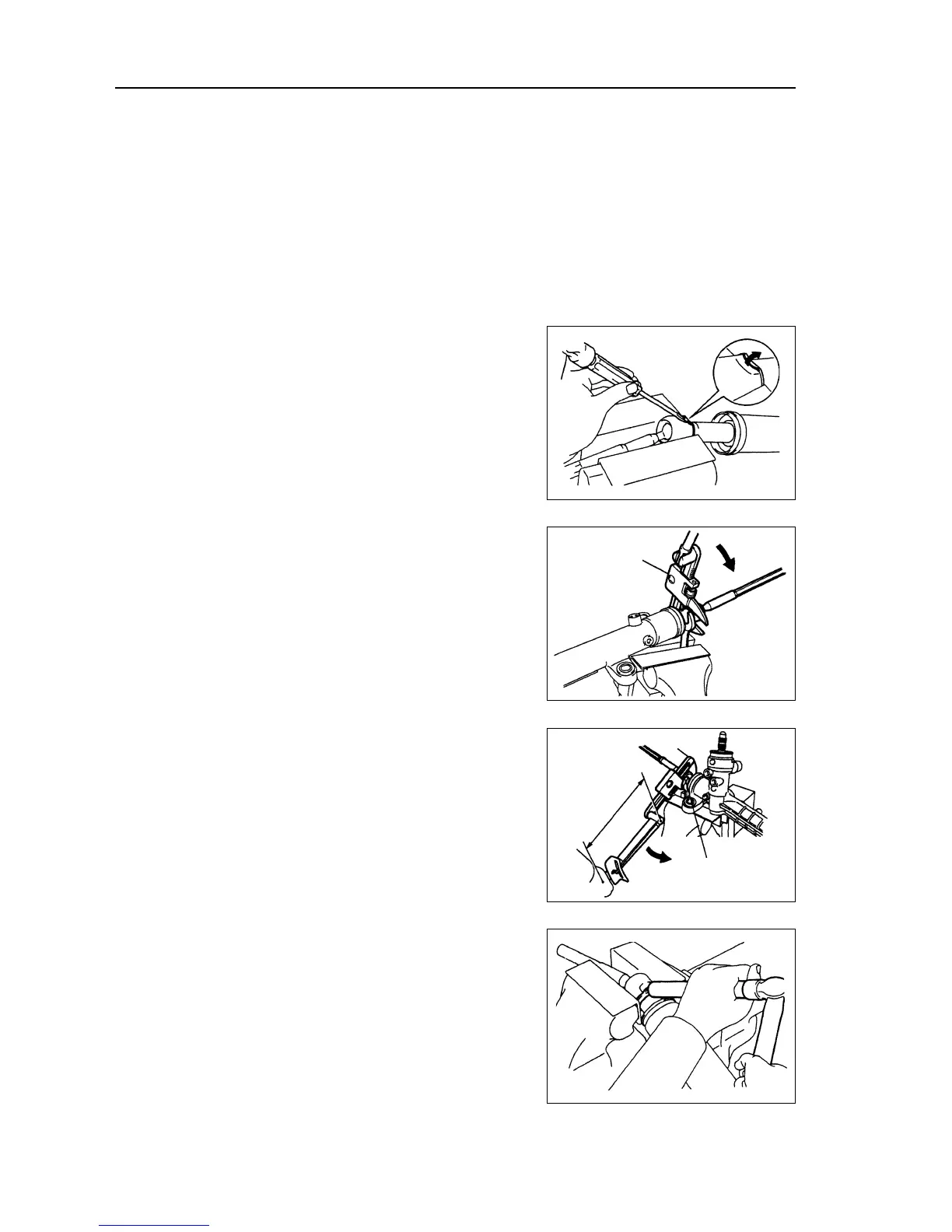

24. Check right transversal lever ball head.
25. Disassemble No.2 dust-proof cover of steering gear.
(a) Use pliers to disassemble fixed clamp.
(b) Use pliers to disassemble iron wire.
Note: do not hurt dust-proof cover.
Hint: make mark on RH and LH dust-proof cover.
Hint: disassemble the other side with same method.
26. Disassemble No.1 dust-proof cover of steering gear.
27. Disassemble terminal lever of steering gear.
(a) Use right-angled screwdriver and hammer to unclench claw
gasket.
Note: avoid knocking steering gear.
(b) Use wrench(22mm) to fix steering gear, then use special
tool to disassemble gear terminal lever.
Note: use special tool by the direction in figure.
Hint: Make mark on RH and LH gear terminal lever.
28. Assemble the parts of steering gear terminal lever.
(a) Assemble new claw gasket, and assemble gear terminal
lever temporarily.
Hint: Align pliers claw of gasket with steering gear
concave slot.
(b)Use wrench to fix steering gear, and use special tool to
tighten gear terminal lever.
Torque: 62 Nxm
Note: use special tool by the direction in figure.
Hint: use torque wrench whose lever length is 380mm.
(c) Use copper stick and hammer to concave gasket.
Note: do not hurt the steering gear.
Wrench
Length of
lever
Special
tool
Special tool
