Geely FC User Manual

Power steering--Power steering gear assembly

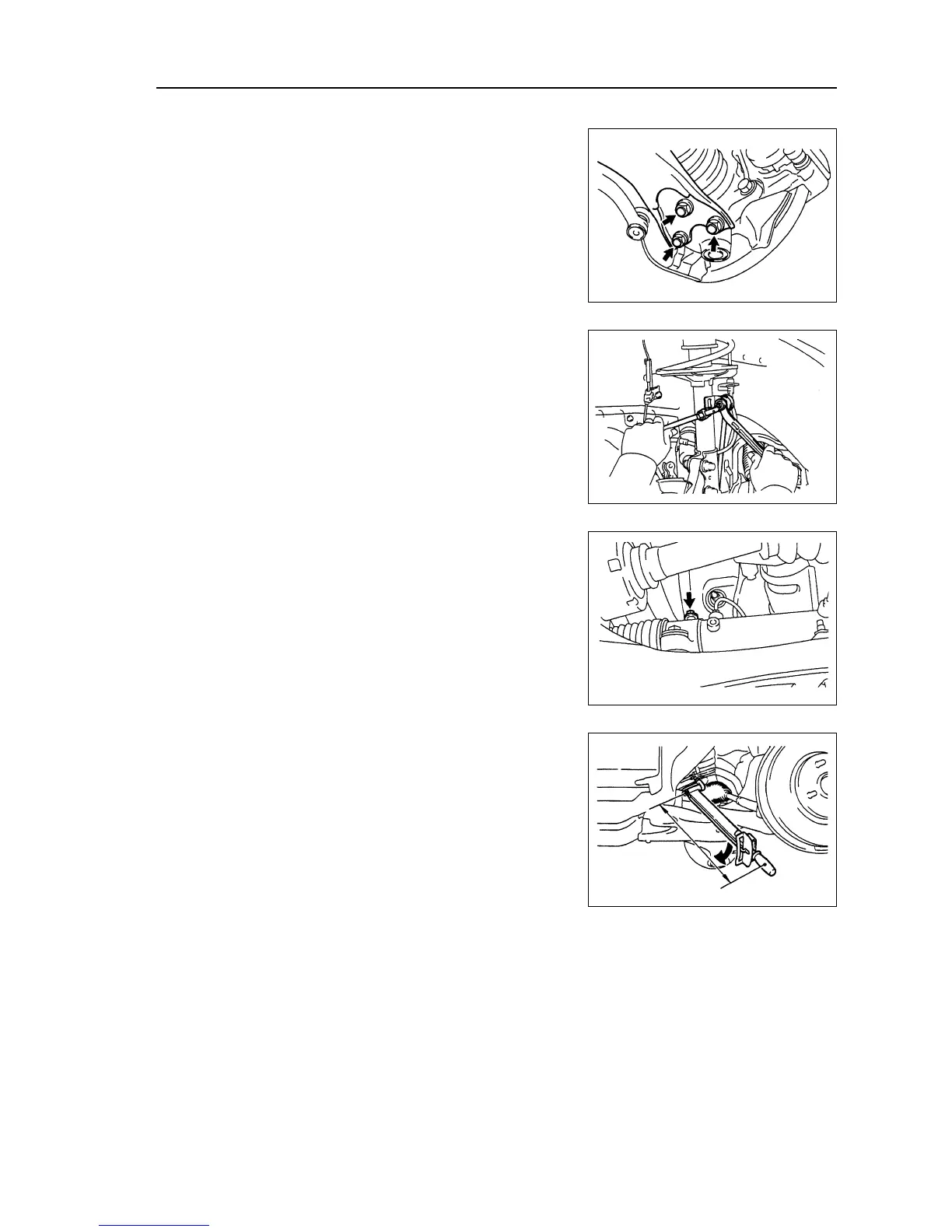

37. Connect the bolts and nuts of left/right control arm
and control arm ball head.
Torque: 142 ± 10 N
xx
xx
xm
Hint: connect the other side with same method.
Connect left lower control arm to steering knuckle with
bolt and two nuts.
38. Connect linking lever assembly of left/right front
stabilizer bar [64000097].
Use socket head wrench (5mm) to fix bolt, then connect sta-
bilizer linking lever with screw cap.
Torque: 74 ± 5 N
xx
xx
xm
Hint: connect the other side with same method.
39. Connect the in-out oil pipe assembly of power steer-
ing gear [64000131].
(a) Connect the in-out oil pipe fixed clamp of power steering
gear with bolt.
Torque: 7.8 N
xx
xx
xm
(b) Use special tool to connect the in-out oil pipe assembly of
power steering gear.
Torque: 41 N
xx
xx
xm
Hint:
z Use the torque wrench whose lever length is
345mm.
z Special tool should be parallel with torque wrench,
only this could make practical torque value.
Hint: connect the other side with same method.
40. Connect the ball head at the left side of transversal
lever.
(a) Connect the ball head at the left side of transversal lever
with screw cap.
Torque: 49 ± 5 N
xx
xx
xm
(b) Assemble new cotter pin.
Note: if cotter pin hole could not be aligned , tighten
the screw cap for 60 again.
Hint: connect the other side with same method.
 211 
