IV. Assemble ECU joint

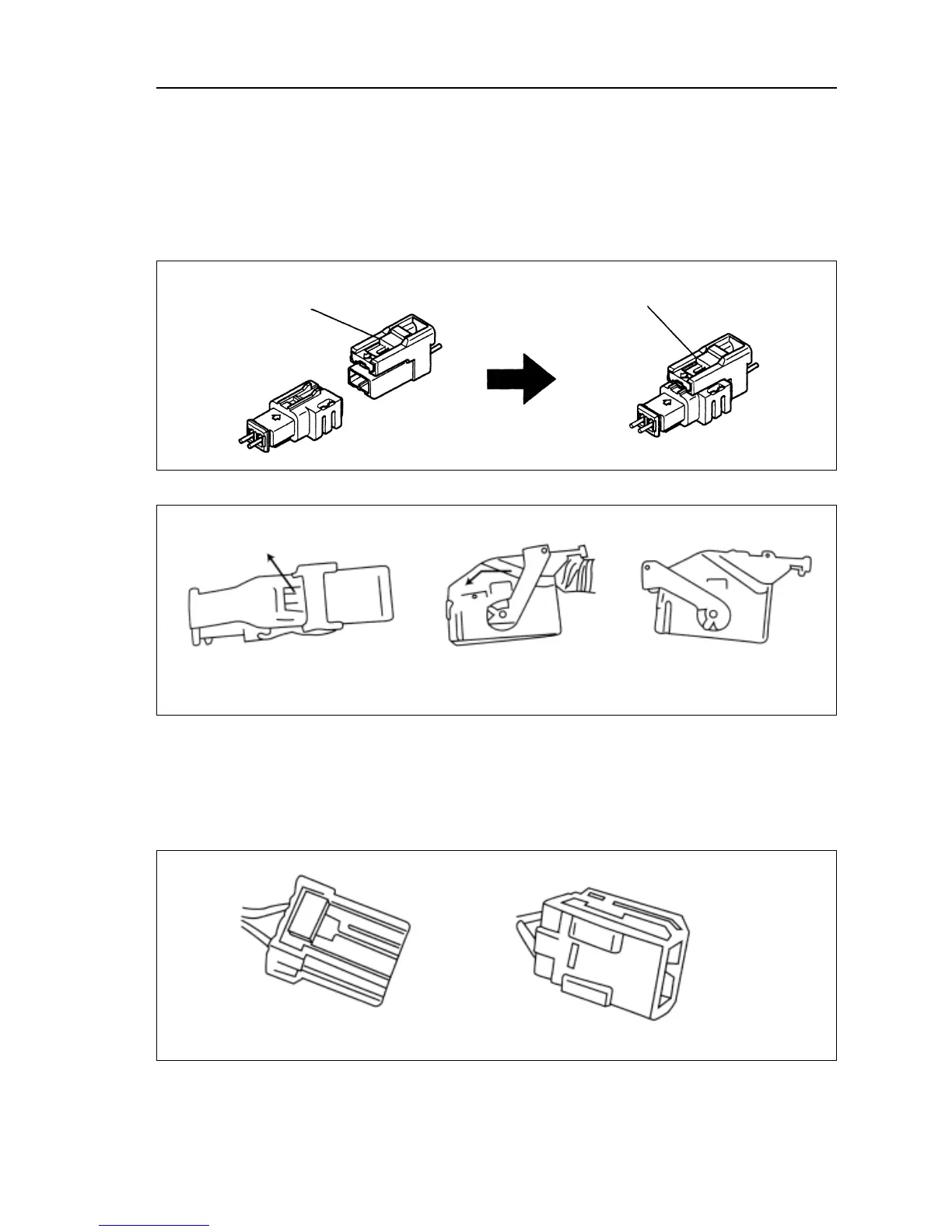

Figure 1 Figure 2 Figure 3
1. Press down limit switch in figure 1.
2. Dial white switch along the black line in figure 2, dial it to bottom liking that shown in figure3.
Hint: you will hear the assembling sound that shows it is put to position when white switch is
put into position.
V. Connect airbag wiring harness and short wiring harness at the side of passenger.
2. Confirm inserting it until locking, after assemble, pull it to check whether it is locked (when locking,
confirm exterior joint returns to former position, at the same time, assembling sound could hear).
Hint:
When moving the sliding block, do not contact it.
Pay attention to do not distort the release board, if release board is distorted, it is neces-
sary to change it with new helix cable.
Figure 3 Figure 4
1. Insert the connector in figure 3 in the part in figure, after assemble it into its position, you will hear hint
sound.
Supplemental restraint system--Note
243
Sliding block
Sliding block
Limit switch
