Light--Front fog light joint
Clues on:

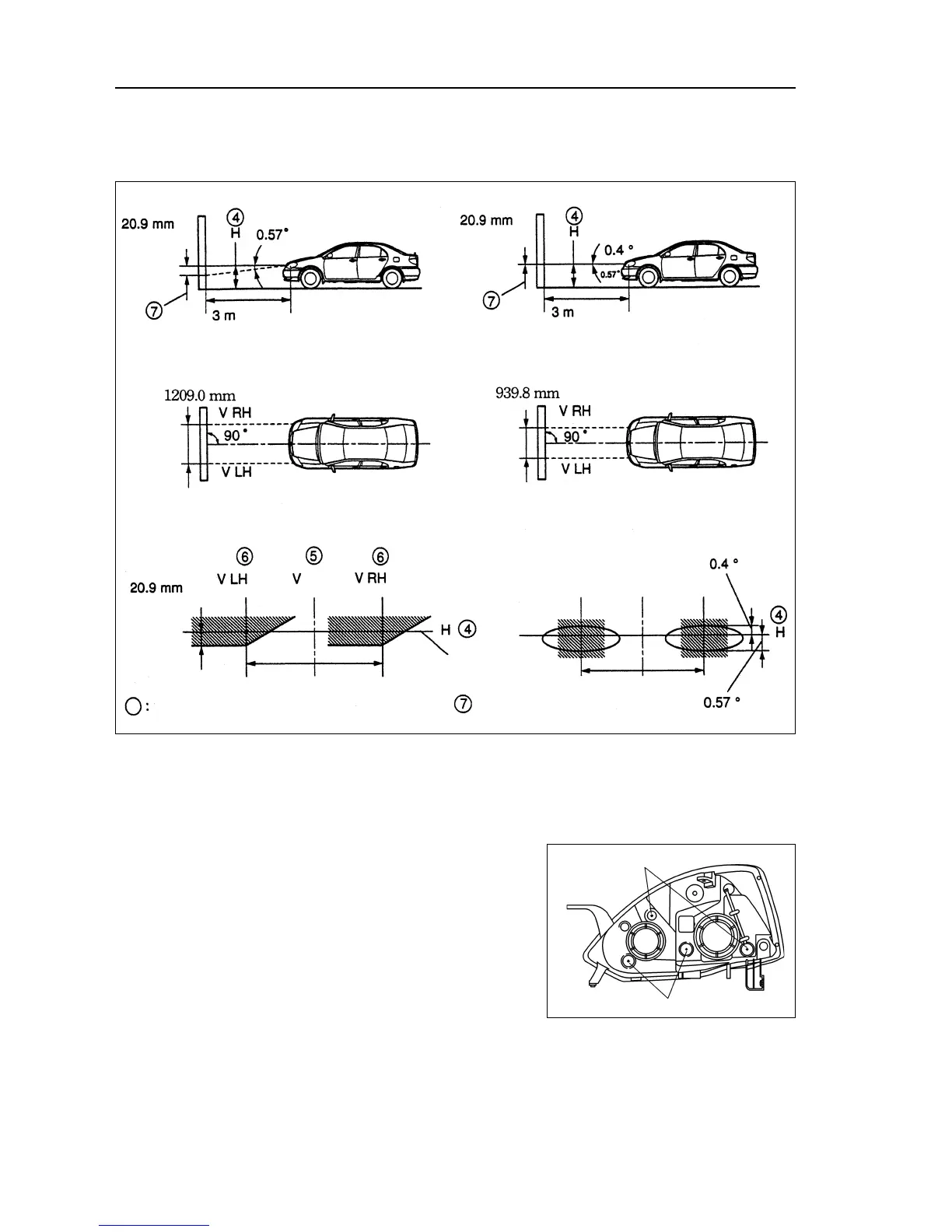

z Adjust the focus between lights of RH and LH as the drawing.
z The value of low beam focal length is reference value for it is impossible to adjust at
level direction.
(c) Adjust vertical direction
Use the adjustable bolt A to make the headlight focus limits
to the regular.
(d) Adjust level direction
Use the adjustable bolt B to make the headlight focus limits
to the regular.
(10) Inspect front combination light whether it irradiates on the area as drawing.
(11) If not, adjust light on vertical line or level line.
Adjusting bolt “B”
Adjusting bolt “A”
288
1209.0
939.8
Numbers for approach sequence
Distant
light
Low
beam
light
wire
wire
wire
wire
wire wire
H RH and
H LH wire
To Next Page
