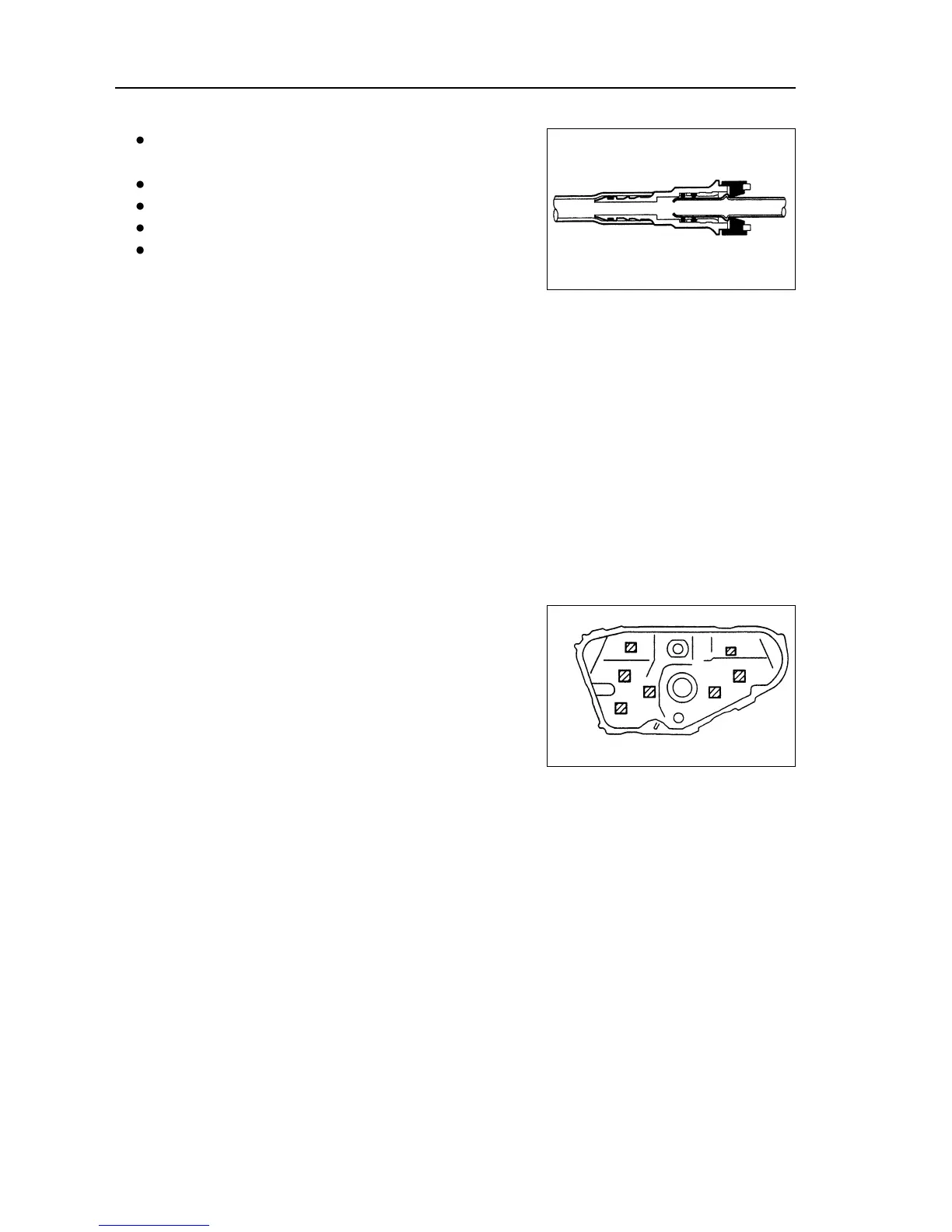

Fuel - Fuel tank assembly
Be careful of the contaminant that looked like dirt, because
fast-joint depends on o-ring to seal fuel pipe and joint.
Do not perform this operation with tools.
Do not bend or distort nylon hose.
Cover the joint with plastic bag after removing the fuel hose.
When the joint is stuck with fuel pipe, clip the hose with
fingers and rotate carefully to release the hose, and then
remove it.
14. Remove fuel tank assembly
(a) Remove parking brake pull cable retaining clip.
(b) Place jack under fuel tank. Remove fuel tank band harness and fuel
tank assembly.
15. Remove fuel tank main fuel hose and oil return pipe
assembly
16. Remove No. 2 fuel evaporation hose assembly
17. Remove No. 1 fuel tank gasket
18. Remove No. 1 fuel tank protector
Remove rivet with electric drill and then remove fuel tank protector.
19. Install No. 1 fuel tank protector
Install fuel tank protector with rivet.
20. Install No. 1 fuel tank gasket
As shown in the diagram, install new fuel tank gasket.
21. Install fuel tank assembly
Torque: 39 N.m
22. Install front exhaust pipe assembly
Torque: 40 N.m
23. Install front floor bracket
Torque: 30 N.m
24. Install rear floor repairing hole cover
Install rear floor service hole cover with butyl rubber cloth.
25. Check fuel leakage (see Page 14)
26. Check gas leakage of exhaust system
