Windshield/bodywork glass/wing mirror--Electric rearview mirror control system
Replace the rearview mirror if actuation does not accord with regulations.
Notes:
z When repeat the same inspection, cut off the voltage of battery, then inspect again with
same steps.
z When supply battery voltage, the rearview mirror will not retract even if trying to move the
crust of rearview mirror.
Outer rearview mirror assembly L
Outer rearview mirror assembly R
L terminal
connecting wire
L terminal
connecting
wire
assembly L assembly R
 333 

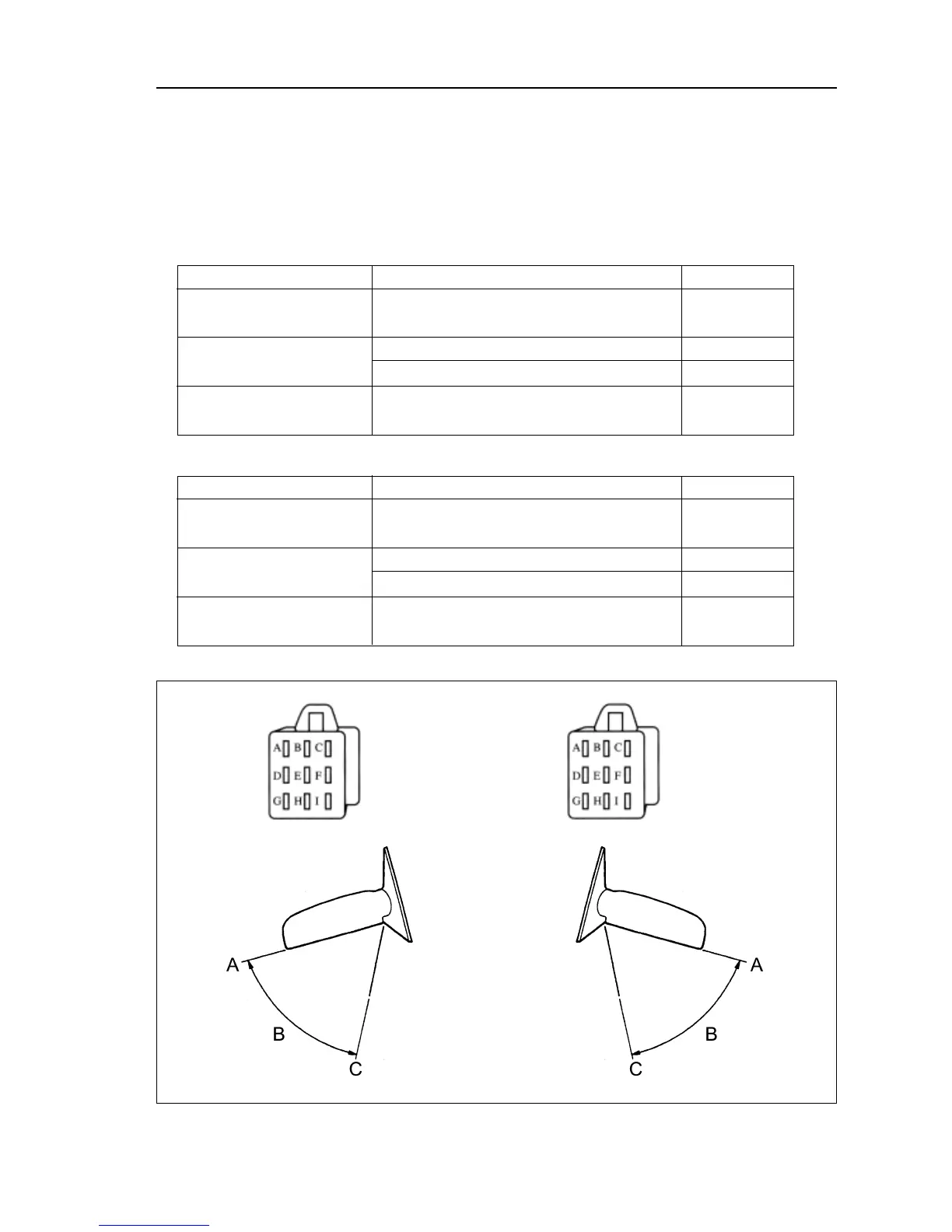

Positions of rearview mirror
A (position of driving)
B (between position of driving
and retracting)
C (position of retract)
Connection style
Connect wire G to positive
Connect wire D to negative
Connect wire D to positive, connect wire G to negative
Connect wire G to positive, connect wire D to negative
Connect wire D to positive
Connect wire G to negative
Actuated style
Not actuated
A-B-C
C-B-A
Not actuated
Positions of rearview mirror
A (position of driving)
B (between position of driving
and retracting)
C (position of retract)
Connection style
Connect wire D to positive
Connect wire G to negative
Connect wire G to positive, connect wire D to negative
Connect wire D to positive, connect wire G to negative
Connect wire G to positive
Connect wire D to negative
Actuated style
Not actuated
A-B-C
C-B-A
Not actuated
