Panel/combination instrument-- panel
3 Fixing clamp
4 Fixing clasp
5. Disassemble safety airbag assembly at the side of
driver [67010011] (Referring to page 261)
6. Disassemble steering wheel assembly [67010001]
(referring to page 194)

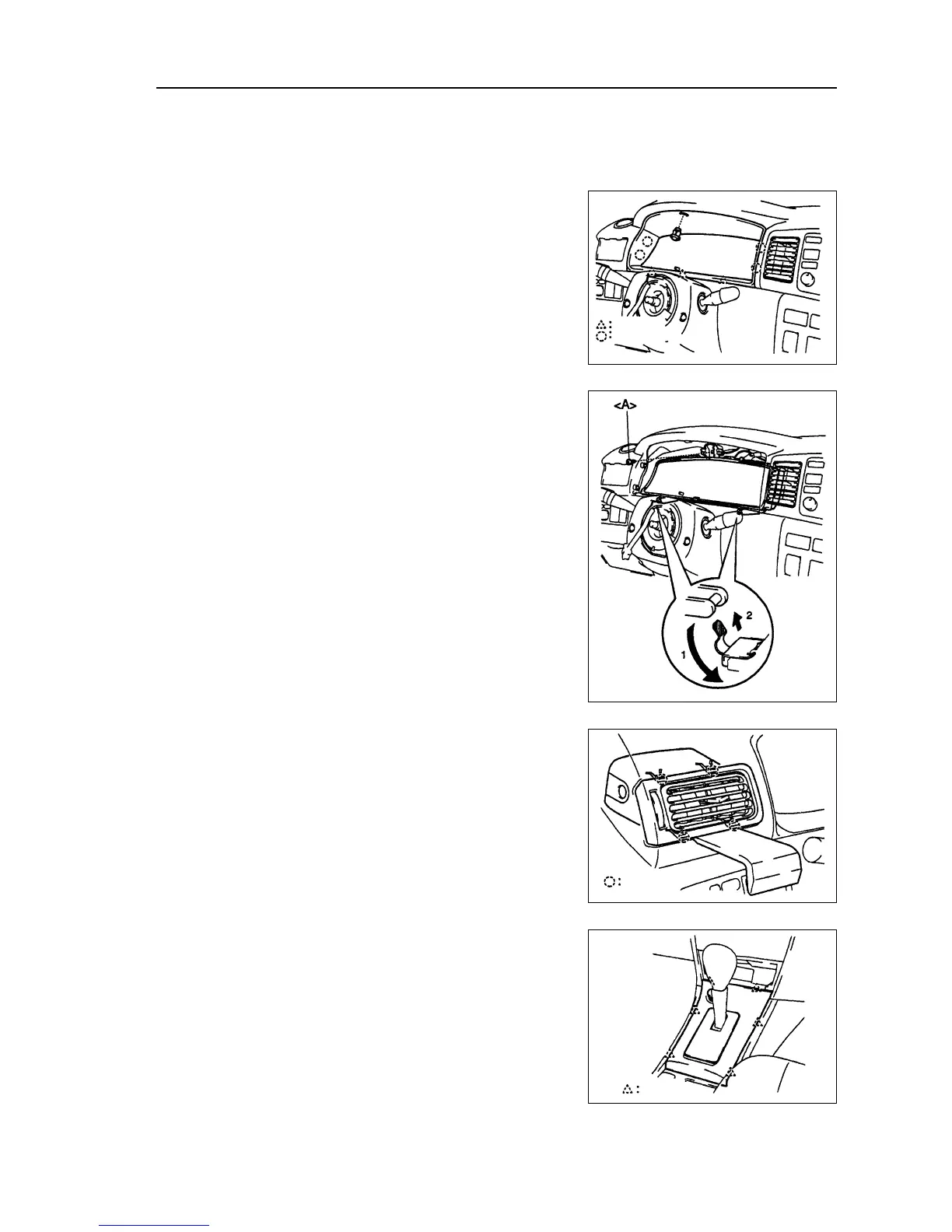

7. Disassemble Combination instrument cover
[68000077]
(a) Disassemble fixing clamp.
(b) Use screw driver to unclench three fixing clamps and four
fixing clasps, then disassemble Combination instrument.
Hint: before using screw driver, it is necessary to wrap
its needled top with adhesive tape.
8. Disassemble Combination instrument assembly
[67000081]
(a) Disassemble A screw.
(b) Liking that shown in figure, unclench two fixing clamps.
(c) Disassemble the joint, then disassemble Combination in-
strument assembly.
9. Disassemble panel left ventilation hole assembly
[68010010]
Use disassembling tool for trim tape to disassemble panel left
ventilation hole assembly.
Hint: before using screw driver, it is necessary to wrap its
needled top with adhesive tape.
10. Disassemble panel right ventilation hole assembly
[68010011]
11. Disassemble front ashtray
12. Disassemble shift organization trim board assem-
bly [68000076]
(a) Use screw driver to unclench six fixing clamps.
Hint: before using screw driver, it is necessary to wrap
its needled top with adhesive tape.
(b) Disassemble the joint, then disassemble shift organization
trimmain board.
