Panel/combination instrument-- panel
6 Fixing clamp
5 Fixing clasp

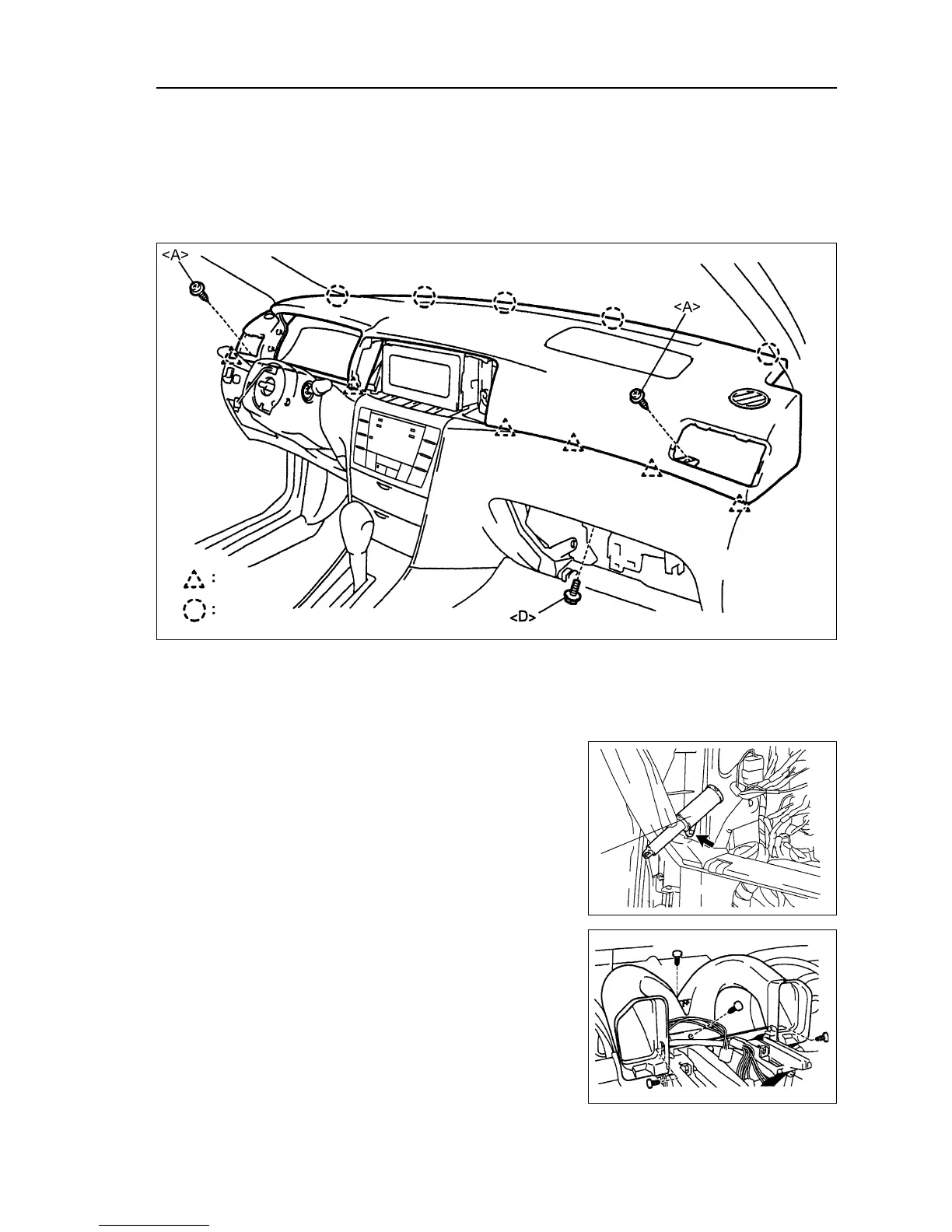

19. Disassemble upper panel assembly [68010004]
(a) Disassemble D bolt and two A screws.
(b) Use disassembling tool for trim tape to unclench six fixing clamps.
(c) Disassemble upper panel assembly.
20. Disassemble upper/lower trim board of steering column [64000128/64000129]
21. Disassemble left combination switch assembly [67000078] (referring to page 298)
22. Disassemble right combination switch assembly [64000079] (referring to page 302)
23. Disassemble gas spring
Unclench fixing clamp, then disassemble gas spring.
î 343 î
24. Disassemble evaporator ventilation pipe assembly
[67000149]
Disassemble four fixing clamps and evaporator ventilation pipe
assembly.
gas
spring
